Content last revised on June 28, 2023
Panel Brand : PVI

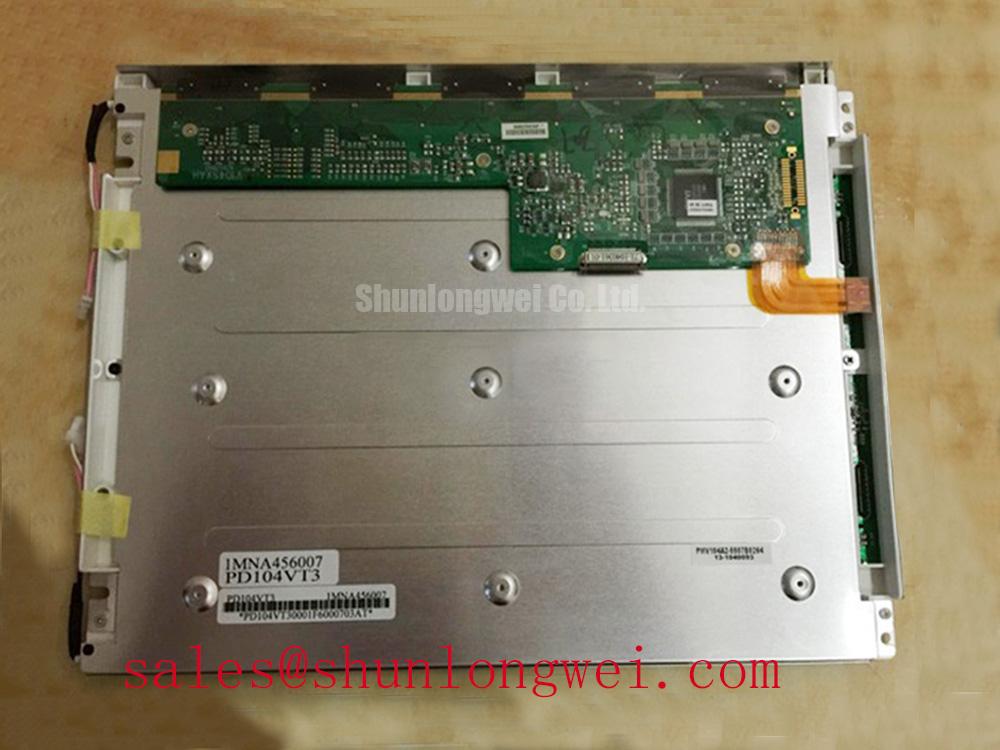

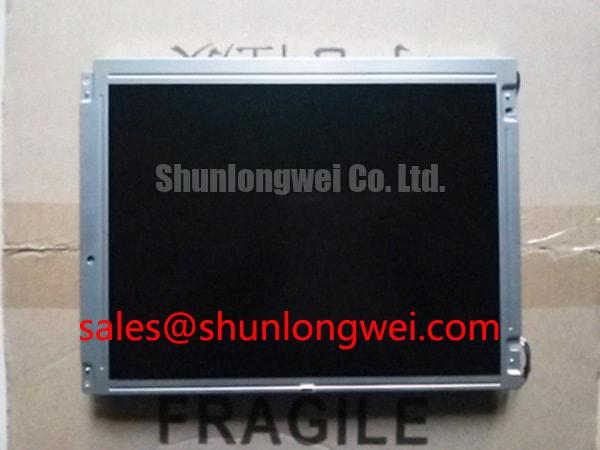

Panel Model : PD104VT3 4 Compatible model
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 243×185.1×12.5 mm
Surface : Antiglare
Brightness : 330 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL
Signal Interface : TTL (1 ch, 6-bit)
Input Voltage : 3.3V (Typ.)(VCC)
Environment Operating Temp: -10 ~ 60 °C ; Storage Temp: -20 ~ 70 °C
