PDMB200E6 vs. MG200Q2YS50: In-Depth IGBT Module Comparison for High-Power Industrial Applications

What This Component Is and Its Industry Significance

Modern industrial power electronics relies heavily on solid-state switching devices capable of regulating hundreds of amperes at high voltages with minimal power dissipation. Among these devices, the dual-pack Insulated-Gate Bipolar Transistor (IGBT) module serves as a foundational building block for half-bridge, full-bridge, and three-phase inverter topologies. Before the widespread adoption of IGBT modules, system designers were forced to choose between the high input drive current demands of bipolar junction transistors (BJTs), the high on-state conduction losses of high-voltage power MOSFETs, or the commutation complexities of thyristors. The IGBT solved these historical dilemmas by integrating an easy-to-drive voltage-controlled field-effect gate with a high-current bipolar conduction channel.

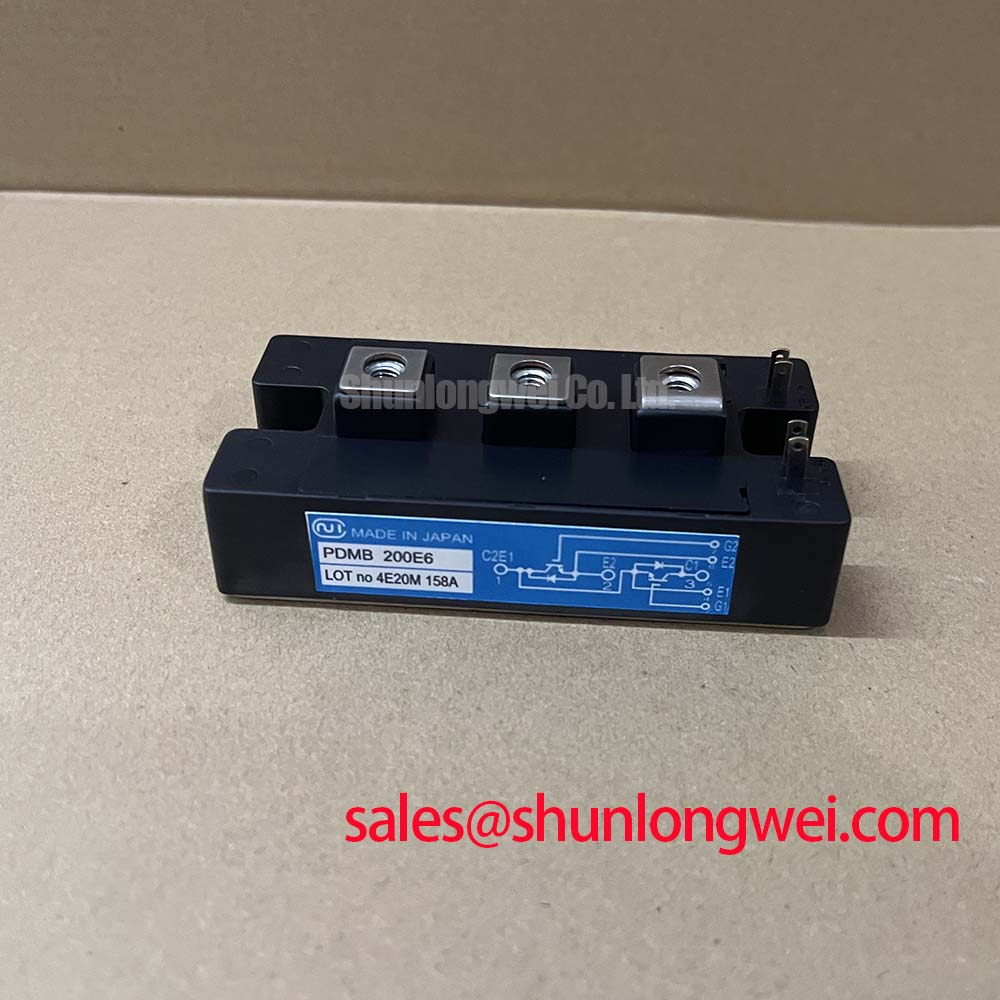

Within mid-to-high power conversion platforms, two classic modules represent critical benchmarks in their respective voltage tiers: the PDMB200E6 manufactured by NIEC (Nihon Inter Electronics Corporation, now Kyocera) and the MG200Q2YS50 manufactured by Toshiba. Both devices are packaged in industry-standard isolated baseplate housings and are rated for a continuous collector current of 200A. However, they address distinct operational domains defined by system DC bus voltages. The PDMB200E6 is engineered for 600V breakdown limits, tailored for low-to-medium voltage mains supplies (such as 200V to 240V AC lines), whereas the MG200Q2YS50 provides a 1200V dielectric rating, engineered specifically for 380V to 480V AC industrial grids.

Understanding the design boundaries of these two devices is crucial for procurement specialists, electrical systems integrators, and maintenance engineers. Operating a 200A half-bridge requires balancing conduction losses, switching speeds, short-circuit withstand capabilities, and thermal fatigue resistance. While modular power designs frequently evaluate alternative power blocks such as the DP15H1200TO101982 for lower-current subsystems or high-capacity units like the QM300HA-H, understanding the architectural trade-offs between 600V and 1200V 200A platforms prevents catastrophic field overvoltage breakdown and avoids unnecessary thermal penalties. Foundational operational principles behind these devices are further established in the study of Insulated-Gate Bipolar Transistor (IGBT) Fundamentals.

Working Principle and Physical Structure

An IGBT module is a four-layer semiconductor device (p-n-p-n) controlled via an insulated metal-oxide-semiconductor (MOS) gate structure. To understand its internal operation without cumbersome mathematical equations, picture a monolithic synergy between a low-power MOSFET at the input and a heavy-duty p-n-p bipolar transistor at the output. In the off-state, when the gate-to-emitter voltage (V_GE) is zero or slightly negative, no conductive path exists. The applied collector-emitter voltage (V_CE) is supported across the reverse-biased junction between the n-drift layer and the p-well base. The thickness and doping concentration of this n-drift region dictate the maximum blocking voltage of the component: a 600V device like the PDMB200E6 uses a significantly thinner drift region than a 1200V device like the MG200Q2YS50.

When an external gate driver applies a positive voltage exceeding the device threshold voltage (typically +15V across gate and emitter), an electric field penetrates through the silicon dioxide insulating layer. This field attracts free electrons into the p-region, creating an inversion layer (a conductive n-type channel) directly underneath the gate. Electrons immediately flow from the n+ emitter terminal through this channel into the n-drift region. This electron flow functions as the base drive current for the internal p-n-p structure. In response, the p+ collector substrate injects an overwhelming flood of positive charge carriers (holes) across the junction into the lightly doped n-drift region.

This physical mechanism is known as conductivity modulation. Under normal conditions, a thick silicon drift layer engineered to block hundreds or thousands of volts exhibits relatively high electrical resistance. However, the simultaneous flood of both electrons and injected holes increases the carrier density within the drift region by several orders of magnitude. The bulk silicon resistance collapses, allowing high currents up to 200A to pass through the module with an exceptionally small saturation voltage drop (V_CE(sat)). Conduction loss is therefore kept far lower than that of an equivalent high-voltage power MOSFET.

Deactivating the device involves discharging the gate capacitance until V_GE drops below threshold. The MOS inversion channel collapses, abruptly cutting off the supply of electrons to the n-drift region. However, the injected holes stored inside the drift region cannot vanish instantaneously; they must clear out via internal recombination or sweep out under the re-emerging electric field. This process produces an unavoidable “tail current” during turn-off. Tail currents generate switching power losses (E_off), which increase directly with switching frequency. In dual-pack modules such as the PDMB200E6 and MG200Q2YS50, each IGBT is placed in anti-parallel with an integrated Fast Recovery Diode (FRD). This diode provides a continuous freewheeling conduction path for inductive energy when the opposing transistor in the half-bridge switches off, preventing destructive inductive voltage spikes.

Key Features, Advantages, and Technology Comparison

The comparative evaluation between the NIEC PDMB200E6 and the Toshiba MG200Q2YS50 centers on voltage withstand capability versus conduction efficiency. Although both modules handle a nominal continuous current of 200A and peak transient currents of 400A, their internal physical architectures reflect different design priorities. The PDMB200E6 leverages a thinner drift profile characteristic of 600V planar/punch-through silicon. This gives it a lower on-state saturation voltage (typically around 2.1V to 2.4V at rated current) and smaller switching energies. Consequently, it minimizes thermal generation in applications powered from rectified single-phase or three-phase 200V to 240V AC lines.

Conversely, the Toshiba MG200Q2YS50 is constructed with a deeper drift layer designed to sustain a full 1200V collector-emitter breakdown limit. While this thicker region inherently increases the forward saturation voltage (typically 2.7V to 3.5V depending on junction temperature), it provides the essential dielectric barrier required for 380V, 400V, and 480V AC industrial grids. In these systems, nominal DC bus voltages frequently sit between 540V and 700V, with dynamic regeneration excursions climbing higher. Using a 600V module in such an environment would result in immediate catastrophic dielectric breakdown. For system architects designing distributed sub-assemblies, evaluating complementary parts like the SKD75GAL123D chopper module provides valuable context regarding how package parasitics and voltage ratings scale across power platforms.

From an operational standpoint, both devices feature high-reliability copper baseplates insulated with ceramic Direct Bonded Copper (DBC) substrates. The DBC construction ensures a low junction-to-case thermal resistance (R_th(j-c)), ensuring that heat generated during high-duty switching cycles is rapidly transferred to external cold plates or air-cooled heat exchangers. Broader design methodologies concerning switching efficiencies and device architectures are extensively documented within established Industrial Power Semiconductor Solutions.

Real-World Applications and Operating Precautions

Due to their 200A continuous current ratings and half-bridge topologies, both the PDMB200E6 and MG200Q2YS50 are widely deployed across medium-to-heavy industrial conversion systems. The primary application domains include:

• Variable-Frequency AC Motor Drives (VFDs): Three modules are paired to assemble a six-switch three-phase inverter bridge driving induction or permanent-magnet synchronous motors in conveyors, compressors, pumps, and machine tools.
• Uninterruptible Power Supplies (UPS): Modules serve as high-power DC-to-AC inverters or static bypass transfer switches, converting stored battery bank energy into regulated utility-grade sinusoidal AC power.
• Induction Heating & Smelting Converters: Configured in resonant H-bridge layouts switching at frequencies typically between 5 kHz and 25 kHz to drive induction heating coils for metallurgical heat treatment.
• Industrial Arc Welding Systems: Serving as the main high-frequency primary inverter stage, delivering continuous regulated DC output currents up to several hundred amperes at low arc voltages.

Operating these modules reliably requires strict adherence to thermal, mechanical, and electrical assembly protocols. Thermal management is paramount: the baseplate of the module must be mounted to a machined heatsink surface exhibiting a flatness irregularity of less than 50 µm over a 100 mm span, with a surface roughness (Ra) not exceeding 1.6 µm. A high-performance, non-curing thermal interface material (TIM) or phase-change paste should be applied uniformly with a squeegee or stencil at a thickness of 50 µm to 100 µm. Excessive thermal paste creates thermal resistance, while insufficient paste leaves micro-voids filled with insulating air.

Mounting screws must be tightened using a calibrated torque wrench following a two-step cross-pattern tightening sequence. Initial pre-tightening should reach approximately 1.0 N·m to 1.5 N·m, followed by final torque applied between 3.0 N·m and 4.0 N·m for M5 baseplate fasteners. Applying final torque to one screw immediately can warp the DBC ceramic substrate inside the module, causing micro-fractures in internal solder layers that lead to premature isolation breakdown. Electrical terminal connections must also respect specified torque limits (typically 2.5 N·m to 3.5 N·m for M5 terminals) to prevent mechanical shearing of internal terminal leads.

From an electrical perspective, the gate terminal is highly susceptible to electrostatic discharge (ESD) and voltage overshoot. The gate dielectric consists of a nanometer-thin silicon dioxide layer that ruptures permanently if transient voltages exceed the ±20V rating. Engineers must place bidirectional transient voltage suppressor (TVS) diodes or a high-value gate-to-emitter bleed resistor (typically 10 kΩ to 20 kΩ) directly across the gate and emitter terminals at the module pins. Additionally, to avoid spurious dv/dt turn-on caused by Miller capacitance current during rapid switching transitions of the complementary switch, the gate driver must apply a steady negative bias (between -5V and -15V) during the intended off-state.

Engineering Selection Guidelines and Field Diagnostics

Selecting between the PDMB200E6 and the MG200Q2YS50 requires a systematic evaluation of supply voltages, voltage spikes, thermal boundaries, and safe operating area (SOA) limits. Engineers should avoid selecting modules based purely on nominal steady-state voltages. In switching circuits, the stray parasitic inductance (L_stray) of busbars and DC-link snubber circuits generates an inductive voltage overshoot (ΔV = -L_stray · di/dt) during turn-off that adds directly to the DC link voltage.

For systems operating on 200V–240V AC lines, the rectified DC bus settles around 280V to 340V DC. Factoring in turn-off voltage spikes and dynamic line fluctuations, a 600V rated module like the PDMB200E6 provides a comfortable 40% to 50% safety derating margin while keeping conduction losses at a minimum. However, for 380V–480V AC lines, the DC bus operates at 540V to 680V DC, and dynamic braking can drive voltages above 750V. In this scenario, the 1200V rating of the MG200Q2YS50 is mandatory. Furthermore, operating IGBTs well below their absolute maximum V_CES improves long-term reliability by reducing failure rates associated with terrestrial cosmic-ray-induced neutron strike single-event burnout (SEB).

When performing field maintenance, commissioning, or failure analysis on equipment utilizing these modules, technicians can execute a preliminary diagnostic screening using a standard digital multimeter (DMM). Before conducting tests, all DC-link capacitors must be fully discharged and verified with a voltmeter, and all external power cables and gate drive boards should be disconnected from the module terminals.

In addition to basic static multimeter measurements, technicians can perform a functional threshold check on an unpowered module. By momentarily touching the multimeter’s positive lead (in diode mode) to the gate while keeping the negative lead on the emitter, the internal input capacitance (C_ies) is charged up. If the technician immediately transfers the red lead to the collector and the black lead to the emitter, a healthy IGBT will temporarily show a small forward conduction voltage drop, confirming that the MOS gate successfully inverted the channel and activated the bipolar conduction path. Discharging the gate by shorting gate to emitter returns the collector-emitter reading to an open-circuit state. Incorporating these verification steps into routine preventative maintenance prevents catastrophic secondary damage to upstream gate drive electronics, DC-link film capacitors, and downstream electromagnetic loads.
