PDT6016 Datasheet, Specs & Applications | 1600V 60A Thyristor/Diode Module
An Engineer's Introduction to the PDT6016
Integrated Rectification and Braking for Enhanced System Reliability

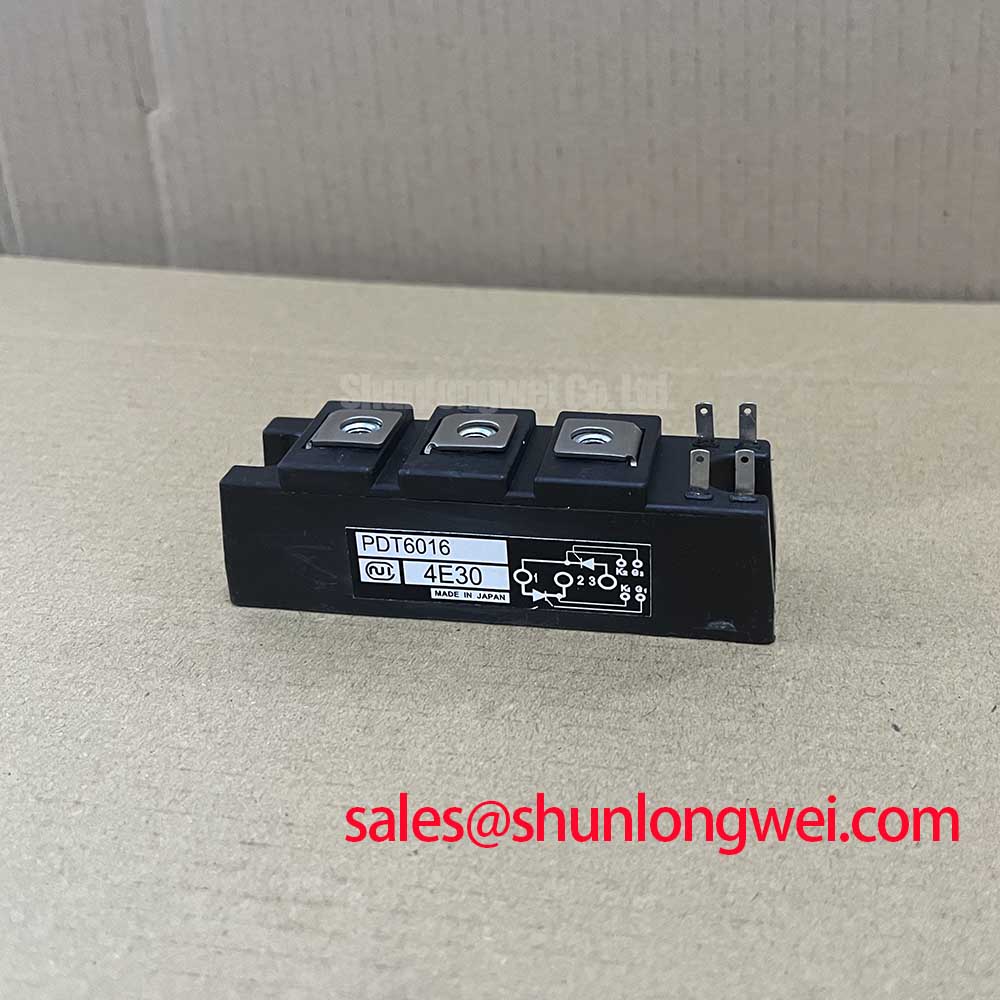

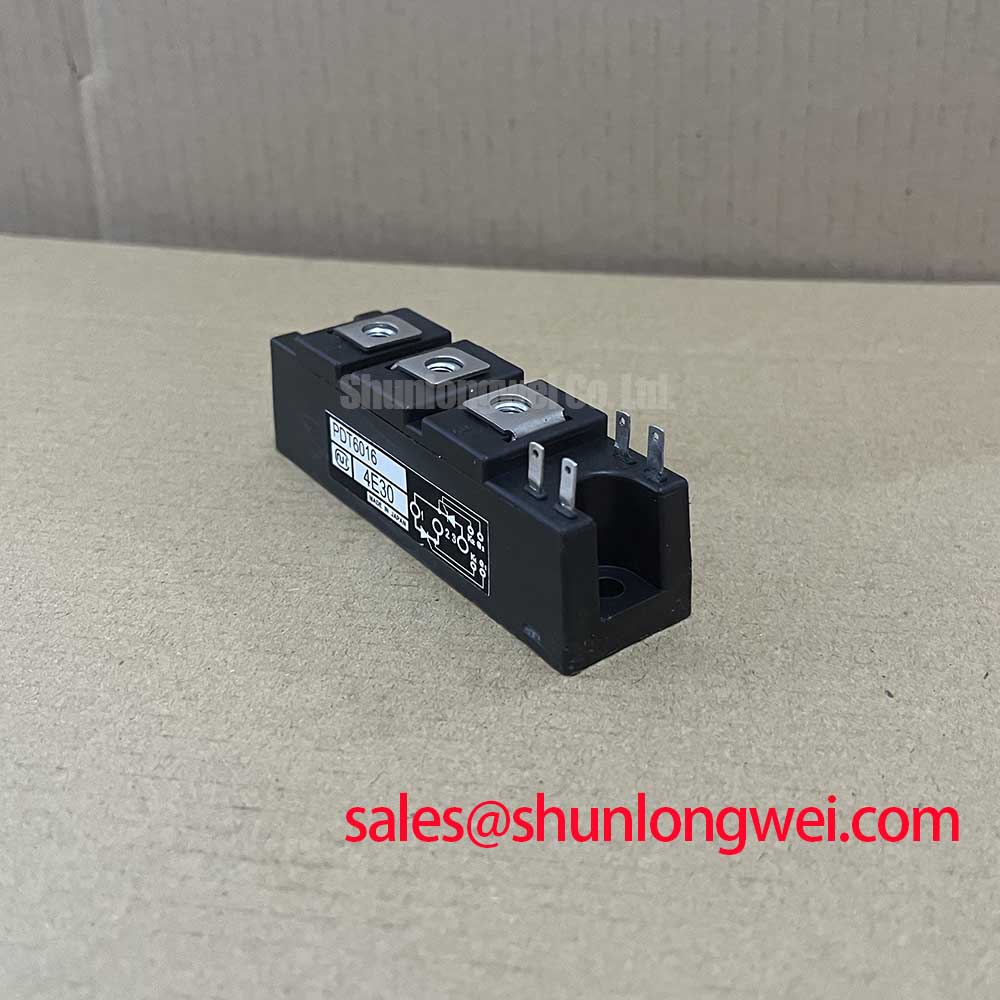

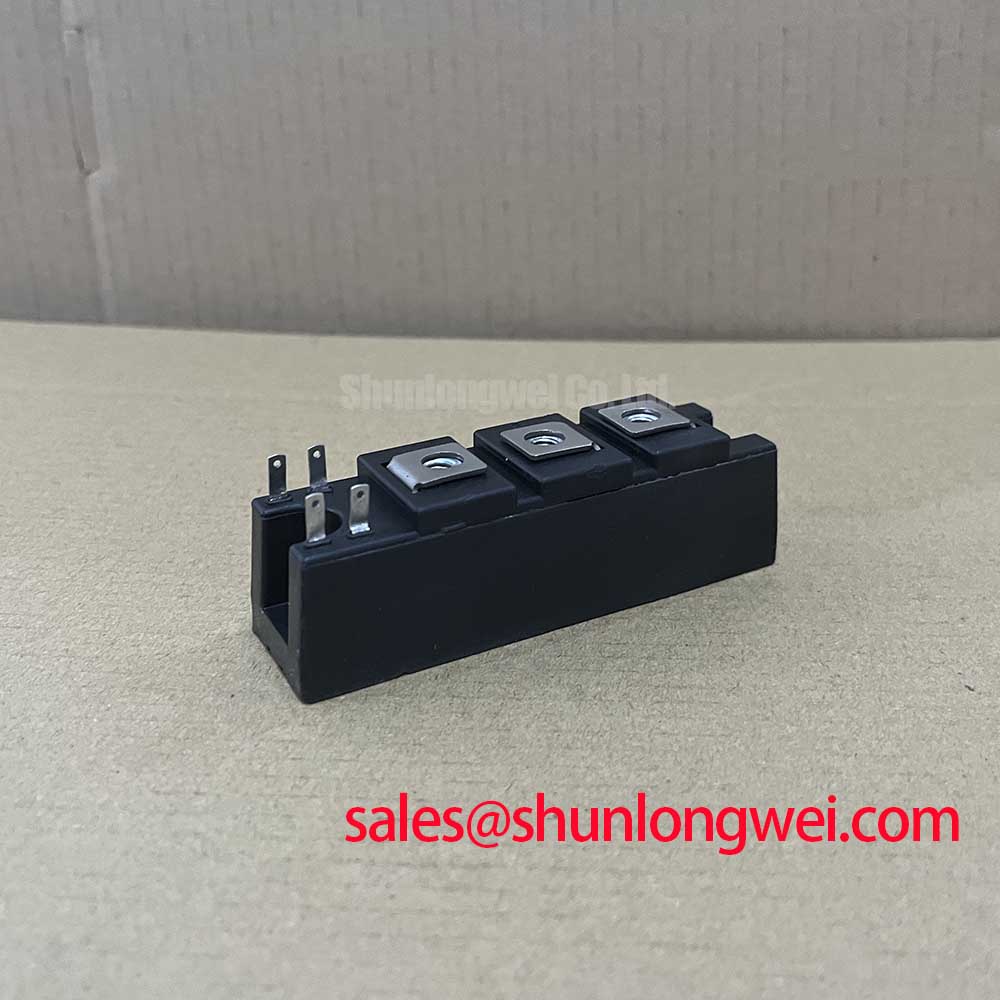

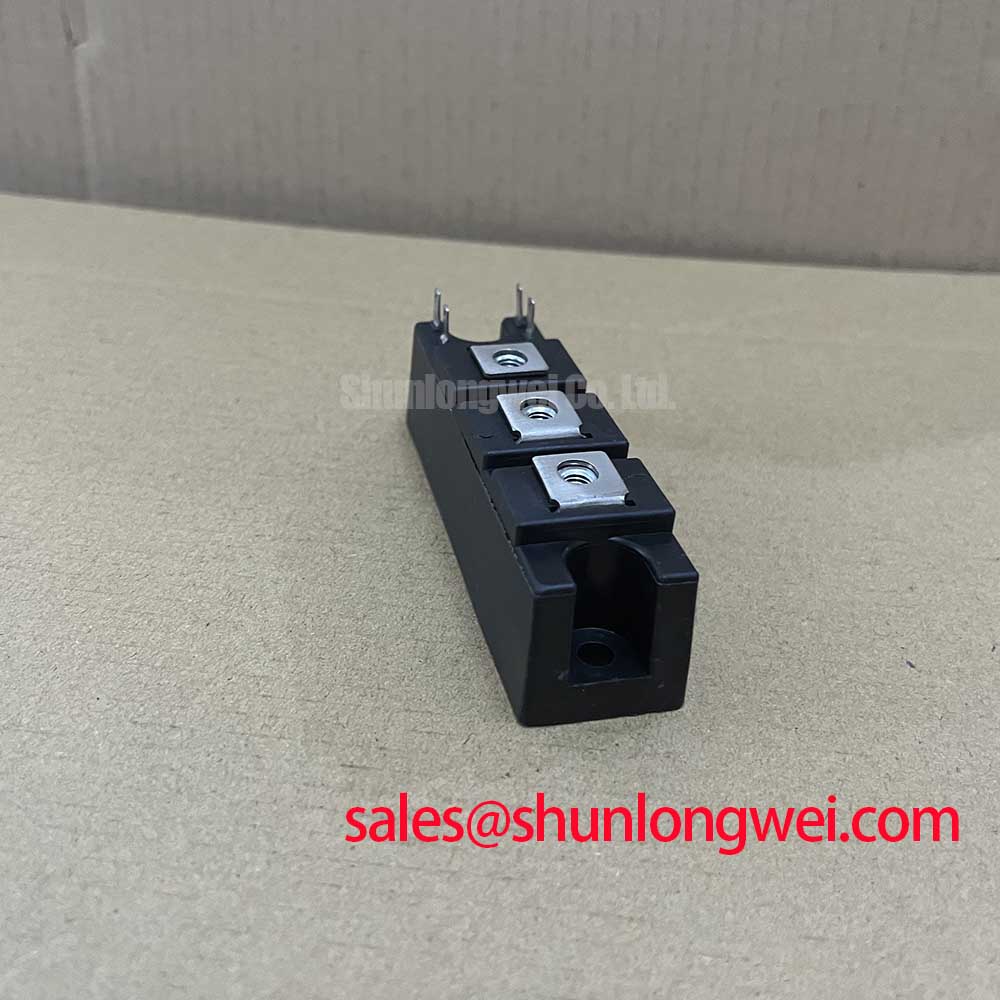

The NIEC PDT6016 is an advanced Thyristor/Diode Module that provides a robust, integrated solution for AC-DC power conversion with dynamic braking capabilities. This module combines a high-voltage, three-phase diode bridge with a dedicated thyristor, streamlining the power stage design for industrial motor drives and power supplies. With its core specifications of 1600V reverse voltage, 60A average forward current, and 2500V isolation, it is engineered for demanding applications. The primary benefits include a simplified braking circuit design and exceptionally robust high-voltage operation. For engineers designing for noisy industrial mains, the 1600V rating offers a crucial safety margin against line transients common in 480V to 690V systems. For compact AC drives on 575V/690V lines, the PDT6016's integrated braking and 1600V rating deliver a reliable, cost-effective power stage.
Key Parameter Overview
Critical Specifications for Drive Rectification and Braking
The technical specifications of the PDT6016 are foundational to its performance in industrial power systems. The parameters below have been selected to provide engineers with the critical data needed for thermal analysis, voltage margin assessment, and overall system integration. The high repetitive peak reverse voltage is particularly significant for ensuring durability in applications connected to unstable power grids.
| Parameter | Symbol | Conditions | Value |
|---|---|---|---|
| Repetitive Peak Reverse Voltage | VRRM | - | 1600 V |
| Average On-state Current (Thyristor) | IT(AV) | TC = 101°C | 60 A |
| Average Forward Current (Diode) | IF(AV) | TC = 101°C, Three Phase | 60 A |
| Peak Forward Voltage (Diode) | VFM | IFM = 180A, Tj = 25°C | 1.35 V |
| Peak On-state Voltage (Thyristor) | VTM | ITM = 180A, Tj = 25°C | 1.60 V |
| Isolation Voltage | Viso | A.C. 1 minute | 2500 V |
| Thermal Resistance (Diode) | Rth(j-c) | Junction to Case | 0.53 °C/W |
| Thermal Resistance (Thyristor) | Rth(j-c) | Junction to Case | 0.53 °C/W |
| Operating Junction Temperature | Tj | - | -40 to +125 °C |
For a comprehensive list of electrical and thermal characteristics, Download the PDT6016 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Advantages in Industrial Motor Control and Power Conversion
The dual-function architecture of the PDT6016 makes it a highly effective component for simplifying the design of many power conversion systems. Its primary value is realized in applications that require both AC to DC rectification and a method for managing regenerative energy. What is the primary benefit of its glass-passivated chip? Enhanced long-term voltage blocking stability and reliability.
- AC Motor Drives (Variable Frequency Drives): In a VFD, the three-phase diode bridge converts the incoming AC line voltage to a stable DC bus. During motor deceleration, regenerative energy flows back to the drive, causing the DC bus voltage to rise. The integrated thyristor can be triggered to switch a braking resistor across the bus, safely dissipating this energy and preventing an overvoltage fault.
- Servo Drives: Similar to VFDs, servo drives for robotics and CNC machinery benefit from the compact footprint and reduced component count offered by the PDT6016's integrated braking circuit.
- General Purpose Power Supplies: For high-power DC supplies, the module serves as a robust front-end rectifier capable of withstanding significant line voltage fluctuations.
- DC Chopper Applications: The internal thyristor can be used independently in DC chopper or crowbar circuits for overvoltage protection or power regulation.
By integrating these two critical functions into a single, electrically isolated package, the PDT6016 directly contributes to a smaller system footprint, reduced assembly complexity, and improved reliability through fewer discrete component connections. For systems requiring different current or voltage classes, related devices such as the SKKD162/16 provide alternative configurations for different power levels.
Technical Deep Dive
An Analysis of the Glass Passivation and Monolithic Structure
Two key design aspects of the PDT6016 are central to its long-term operational reliability: the use of glass-passivated chips and the integrated module structure. Understanding these features provides insight into the component's durability in harsh industrial environments.
First, the term "glass passivated chip" refers to a crucial manufacturing step where a layer of specialized glass is fused over the sensitive p-n junction of the semiconductor die. This process hermetically seals the junction from external contaminants like moisture and ions, which are primary causes of long-term degradation and increased leakage currents. Think of this glass layer as a permanent, high-integrity shield protecting the chip's high-voltage blocking capability throughout its service life. This is a key reason for the module's stable performance over many years of operation.

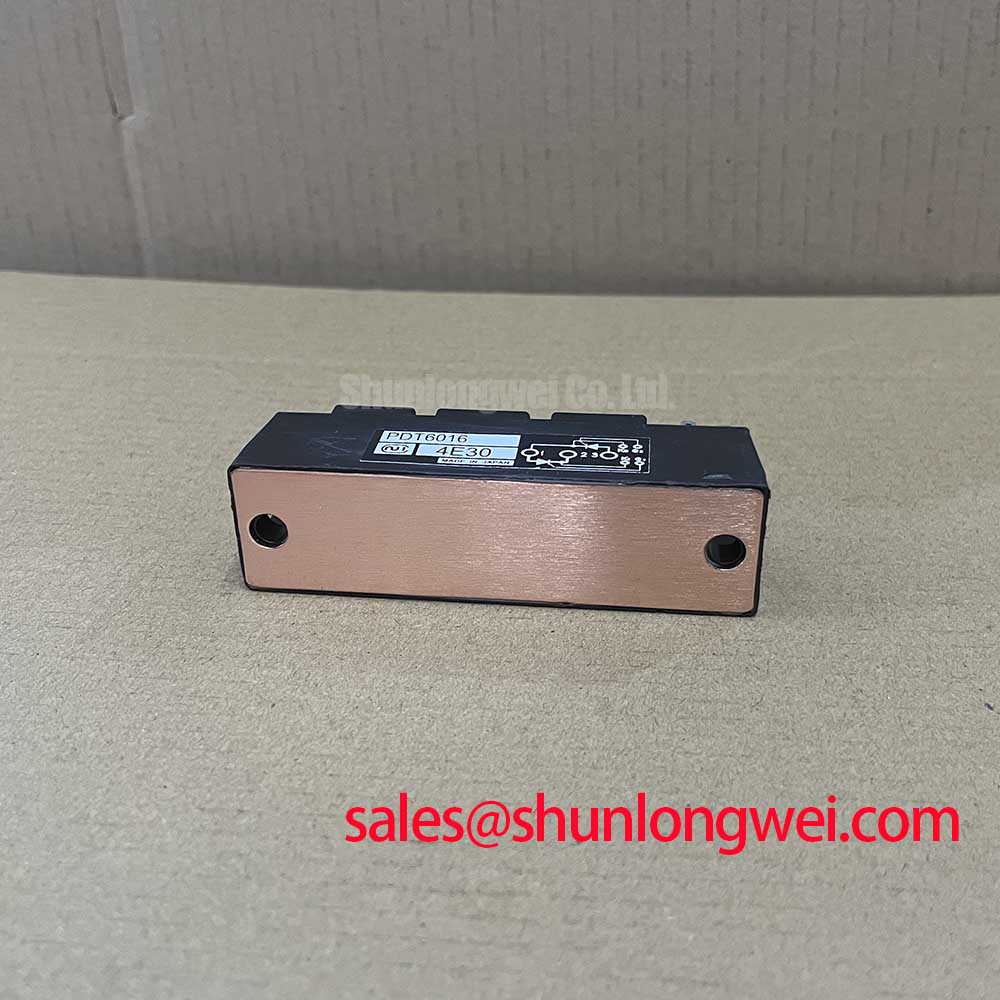

Second, the module's integrated design offers more than just space savings. By housing both the rectifier diodes and the braking thyristor on a common, isolated baseplate, the design ensures a unified approach to Thermal Management. A single heatsink can efficiently cool all major power-dissipating elements, simplifying the mechanical and thermal engineering of the final product and ensuring predictable performance under load.
Frequently Asked Questions (FAQ)
Your Engineering Questions Answered
What is the primary role of the integrated thyristor in the PDT6016 module?
The thyristor is designed primarily for use in a dynamic braking circuit. When a motor decelerates, it generates electricity that raises the DC bus voltage. The thyristor acts as a fast-acting switch to connect a power resistor to the DC bus, dissipating the excess energy as heat and protecting the inverter from an overvoltage trip.
How does the 1600V rating benefit a system designer?
A 1600V repetitive peak reverse voltage (VRRM) provides a substantial safety margin for systems operating on volatile industrial power grids. For a 690V AC line, the theoretical peak voltage is approximately 976V. The 1600V rating ensures the device can withstand significant voltage spikes and transients without breakdown, which is a critical factor for long-term system reliability.
Is this module suitable for direct connection to a 690V AC industrial line?
Yes, its 1600V VRRM rating makes it well-suited for use as a front-end rectifier in applications connected to 575V and 690V AC mains. This high voltage rating is essential for ensuring reliable operation and longevity in high-power industrial environments where line voltage fluctuations are common.
Strategic Design Considerations
Integrating the PDT6016 into a power system reflects a strategic choice towards design simplification and inherent robustness. By leveraging a component that consolidates rectification and energy management, engineers can reduce design cycle time, minimize potential points of failure associated with discrete solutions, and deliver a more compact and cost-effective end product. This approach aligns with the industry trend of increasing power density and reliability in motor control and power conversion equipment.
