R0878LS20K Circuit Protection & Reliability: Calibrating Pulse-Transformer Isolated Firing Circuit

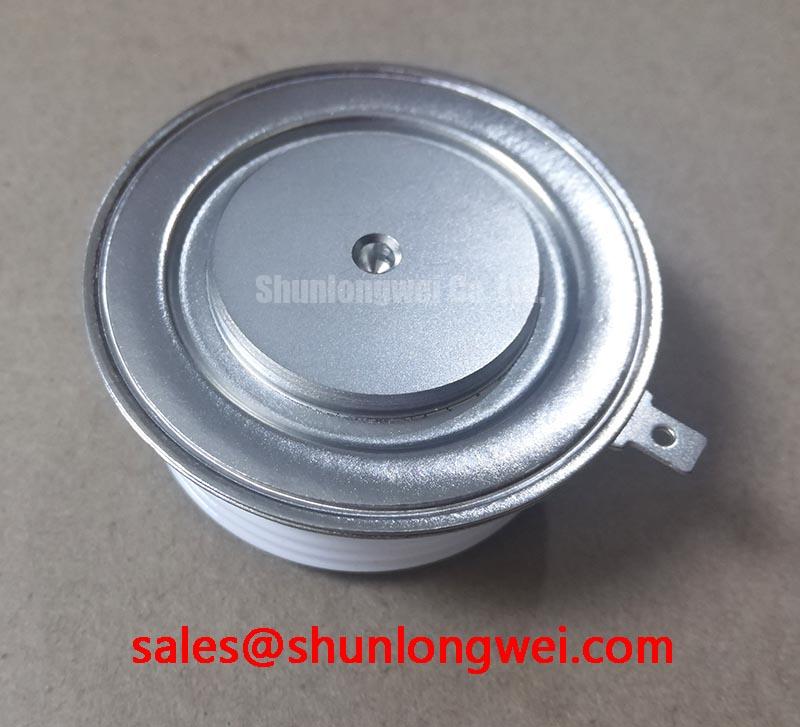

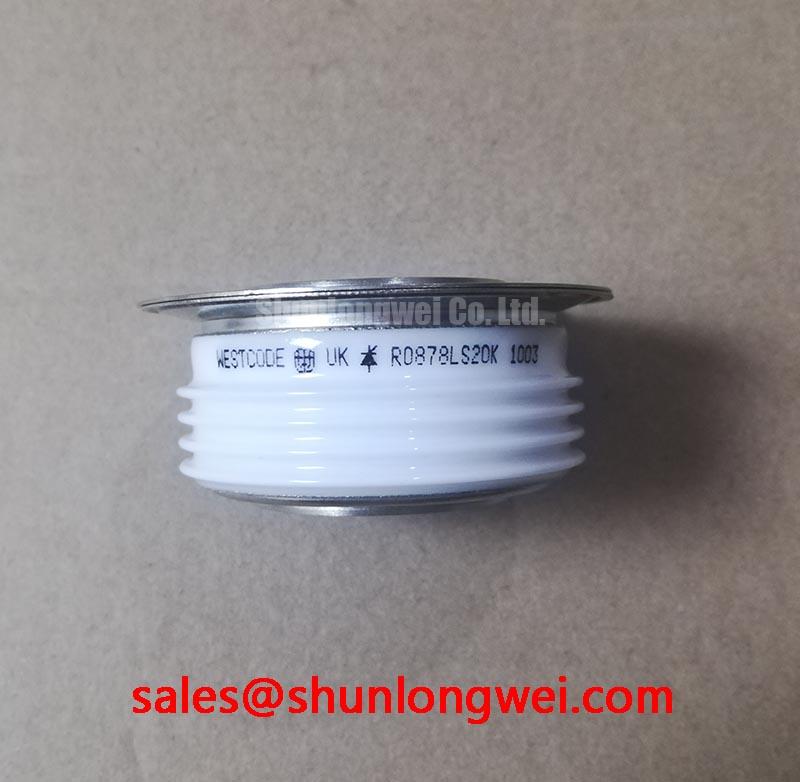

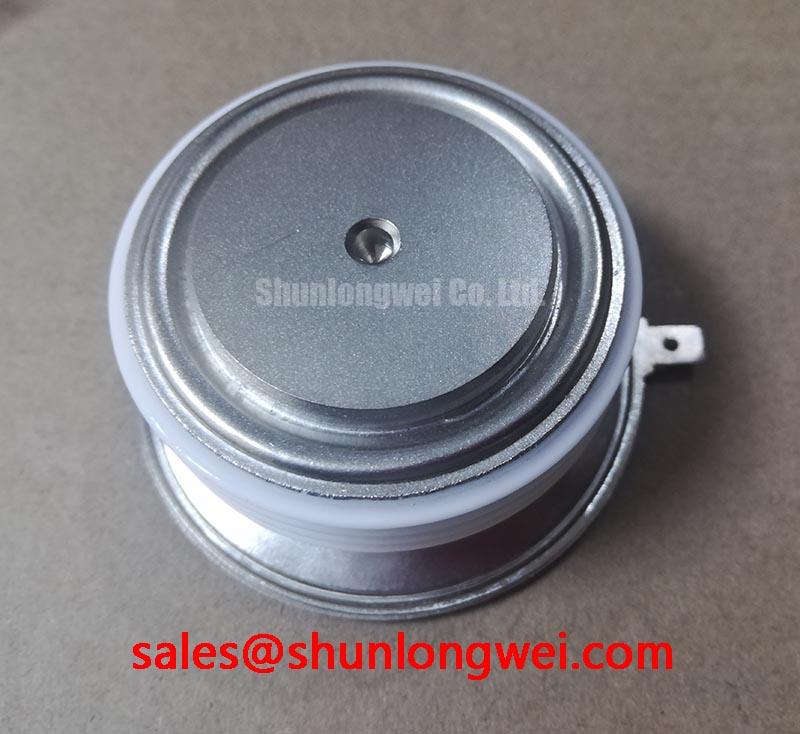

Begin the service check with the nameplate and package condition: confirm R0878LS20K, inspect the disc capsule for cracks or pressure-surface damage, and verify that the circuit position requires a Westcode thyristor in a press-pack arrangement with the specified voltage and current ratings. The published physical category is Disc Capsule / Press-Pack; gate, cathode, anode, fuse coordination, thermal, and mechanical limits must be taken from the applicable manufacturer documentation before energizing the replacement.
In a high-current DC rectifier, first trace the pulse-transformer secondary wiring to the correct gate and cathode terminals, then compare its polarity and insulation condition with the known-good phase. A cold resistance check can identify an open lead, damaged connector, or unintended short, but it cannot confirm gate sensitivity or firing capability. Those characteristics require a controlled test using the approved thyristor data.
The firing circuit should provide a clean, repeatable pulse with adequate gate current and duration for the actual IGT and VGT requirements. Pulse rise time, back-porch holding current, and any multi-pulse strategy are system-level design considerations rather than confirmed R0878LS20K ratings in the supplied specification. Engineers should verify these values against the original firing board documentation and observe the gate waveform with suitable isolation and measurement bandwidth. An irregular pulse train may also be associated with transformer saturation, wiring impedance, or a control-board fault.
Protection coordination requires the exact semiconductor fuse rating and I²t data for the installed circuit. Do not substitute a fuse based only on its voltage or ampere marking. The clearing characteristic must be checked against the rectifier fault current and applicable coordination data. This is especially important when a dead short could produce mechanical and thermal stress before the protective device clears.
⚠️ Field Alert: Isolate and discharge the rectifier before removing pulse-transformer wiring or touching the press-pack assembly, and follow the original clamping hardware procedure.
R0878LS20K Operational Boundaries: Evaluating IEC 61000-4-5 Industrial Surge Immunity Limits
The specified device voltage rating does not by itself define immunity to an IEC 61000-4-5 surge applied to the complete rectifier. AC input protection should be evaluated as a coordinated network that may include upstream fuses, surge arresters, MOVs, line impedance, and RC snubber stages. The correct MOV working voltage and energy capability depend on the supply system, fault level, wiring arrangement, and surge test level.
At the bench, inspect MOVs for cracking, discoloration, or leakage-related evidence, then check the RC snubber for capacitor damage and resistor interruption. A snubber that is suitable for one bridge configuration may produce excessive repetitive current in another. Designers should verify voltage overshoot directly at the thyristor terminals during representative switching tests, with probe placement that does not add misleading loop inductance.
DC-link ripple also affects junction stress and electromagnetic interference. Film capacitor selection should be checked for ripple-current capability and lifetime conditions; this film capacitor overview provides useful background, but it is not a substitute for the capacitor manufacturer’s data. Current monitoring can be reviewed alongside the rectifier protection scheme using resources such as TI Current Sense Amplifiers and Shunt Monitors.
R0878LS20K Operational Boundaries: Evaluating Uniform Heatsink Contact Pressure Limits
A press-pack device depends on the complete mechanical stack, not only the semiconductor disc. Before installation, clean the mating surfaces, inspect the heatsink faces for burrs or contamination, and confirm that the clamp arrangement matches the equipment documentation. Uneven pressure can increase contact resistance or stress the ceramic package, while excessive compound can interfere with the intended thermal interface.
The supplied product data confirms the Disc Capsule / Press-Pack construction, but no mounting torque, clamping force, thermal resistance, or thermal paste thickness is provided here as an official R0878LS20K value. These figures must come from the applicable Westcode mechanical and thermal documentation. During commissioning, monitor phase balance, heatsink temperature, and terminal voltage under controlled load. A phase running hotter than its peers may warrant checks of contact pressure, firing timing, current sharing, and cooling flow rather than an immediate device-only diagnosis.
For a green hydrogen electrolyzer DC power rectifier, designers should verify that enclosure airflow, busbar geometry, isolation distances, and service access are compatible with the press-pack assembly. The high-current rating should not be treated as permission to exceed the thermal, surge, or repetitive-current limits of the complete bridge.
R0878LS20K Thermal-Electrical Optimization: 6-Pulse and 12-Pulse Bridge Configurations Practical Tuning
In a six-pulse bridge, confirm the phase sequence, firing order, cathode and anode orientation, and the current path through each press-pack position before applying load. For a twelve-pulse arrangement, the phase-shifting transformer and, where fitted, an interphase transformer affect how the two bridges share current. Current imbalance can originate in transformer leakage, unequal busbar resistance, firing delay, cooling differences, or contact pressure, so the diagnostic record should compare all phases rather than assume a single failed thyristor.
The 878.0 A current figure is a product parameter supplied for this listing, while the allowable current in a six-pulse or twelve-pulse bridge remains system-dependent. Engineers should validate average and surge current, commutation conditions, ripple, thermal rise, and fuse coordination against the complete rectifier design. When selecting a related device for comparison, the SSIL2890S46C should be evaluated from its own published ratings rather than assumed interchangeable.
Where the rectifier includes an upstream or complementary power stage, the KT224515 may be reviewed as a separate system element. Final limits must remain tied to the actual rectifier schematic and approved component documentation.
