Semikron SKM300GB128D IGBT Module | Robust 6-Pack for High-Power Inverters

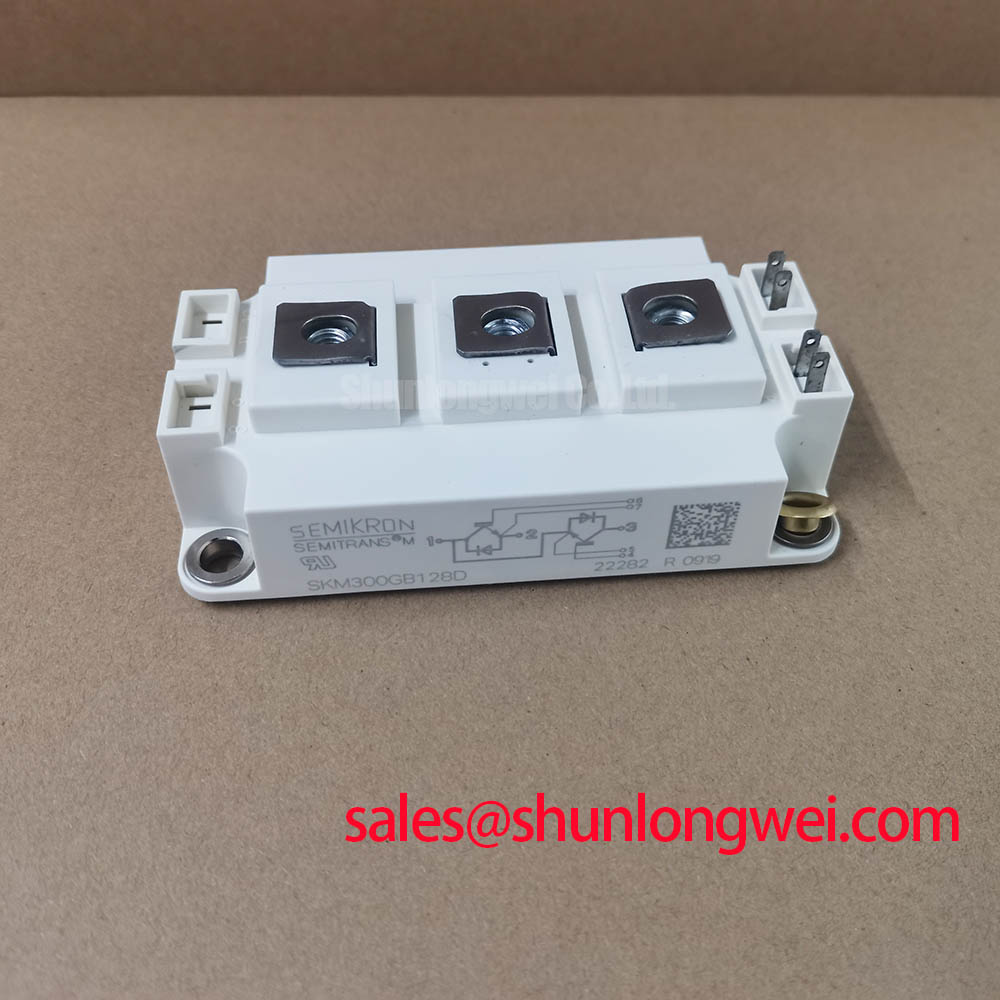

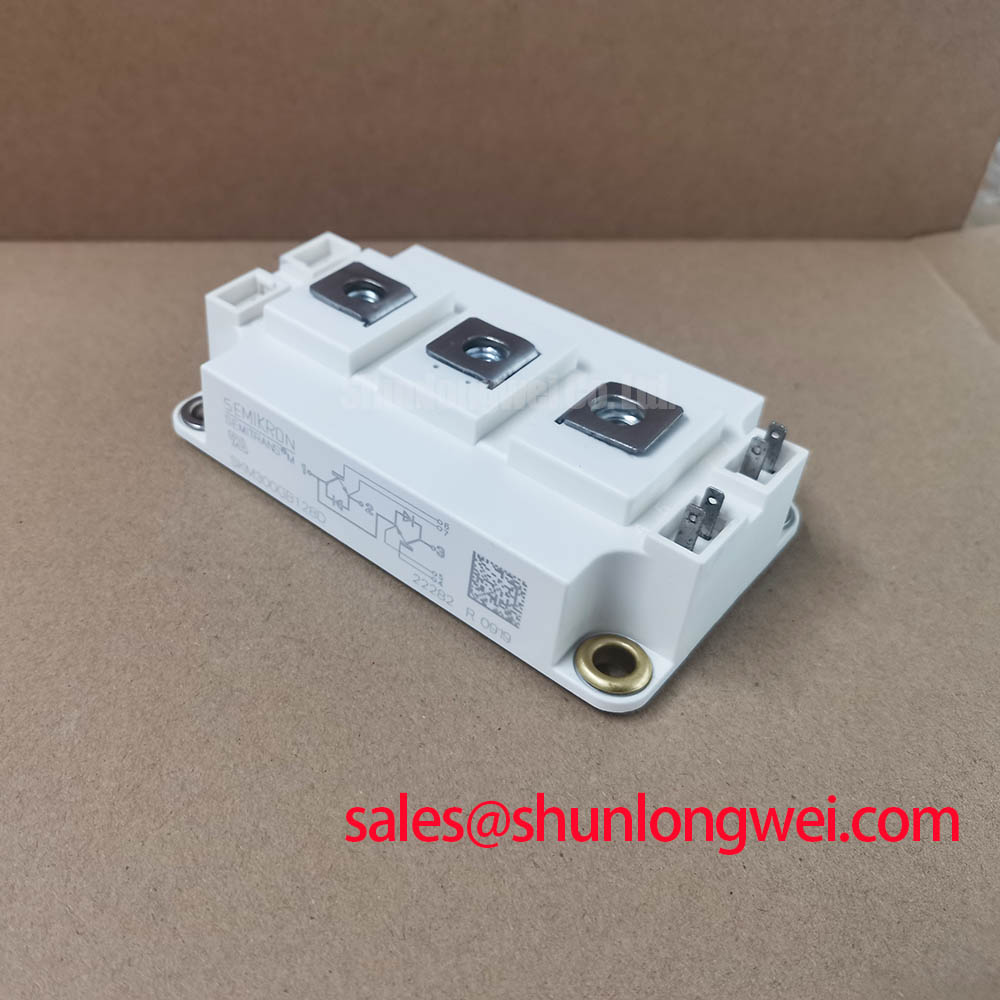

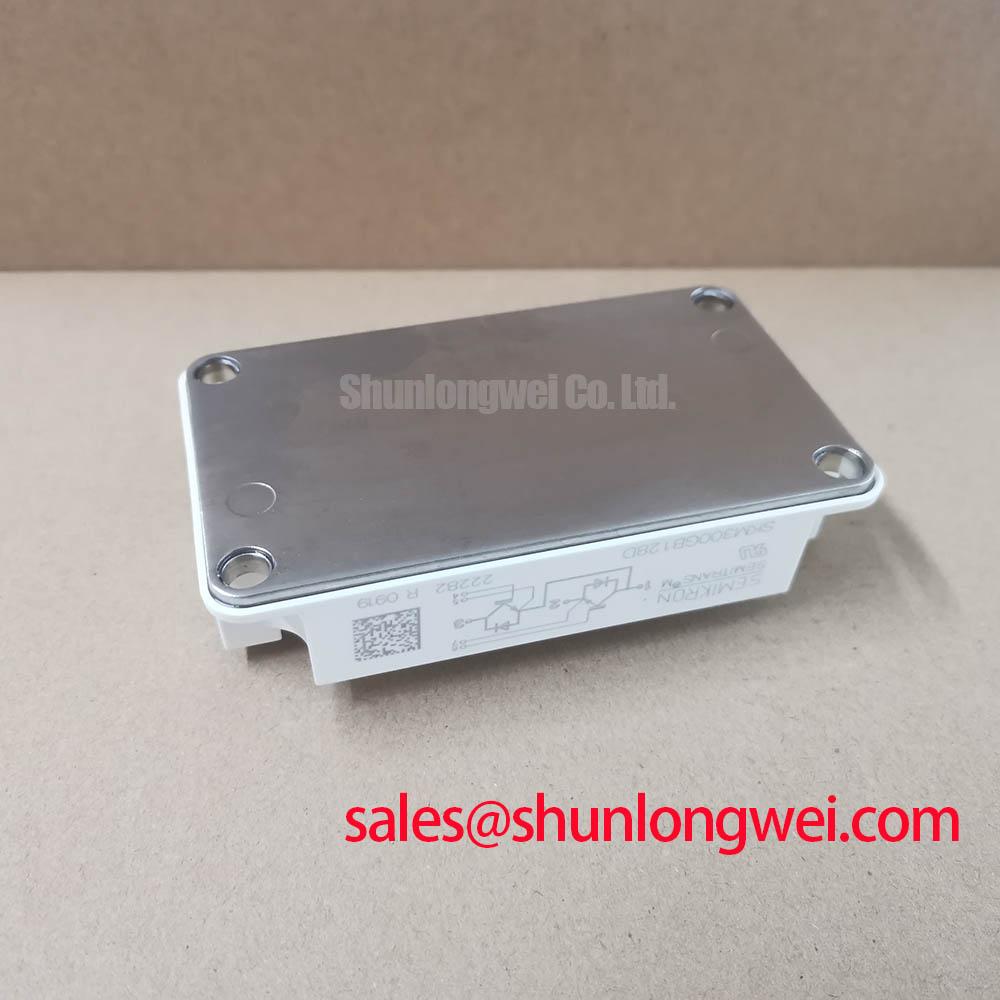

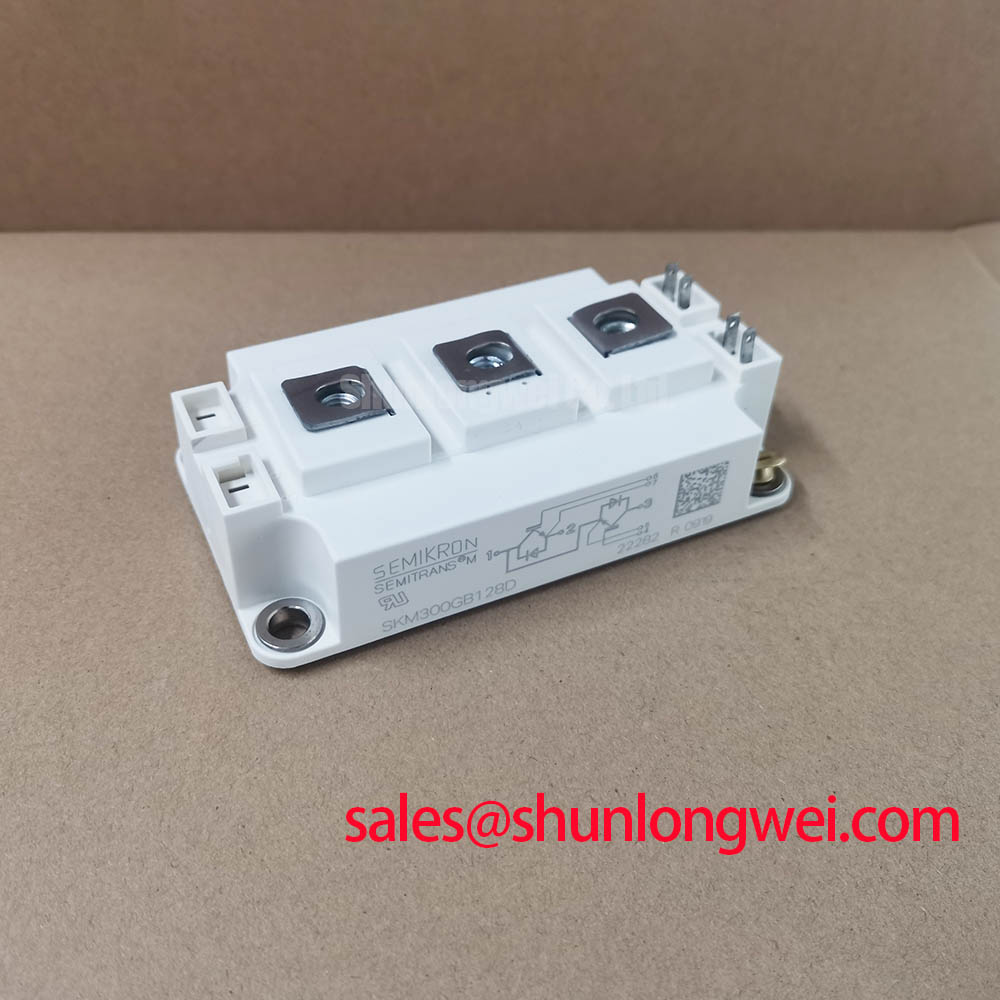

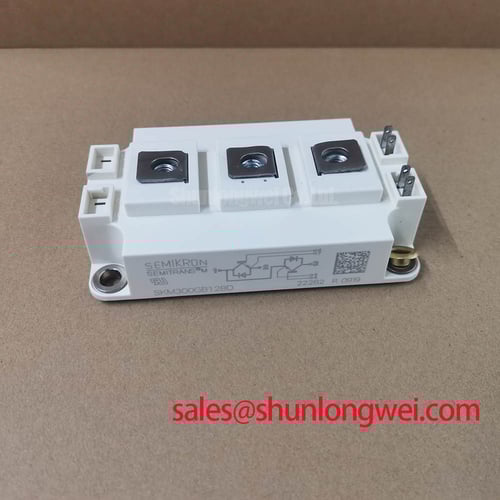

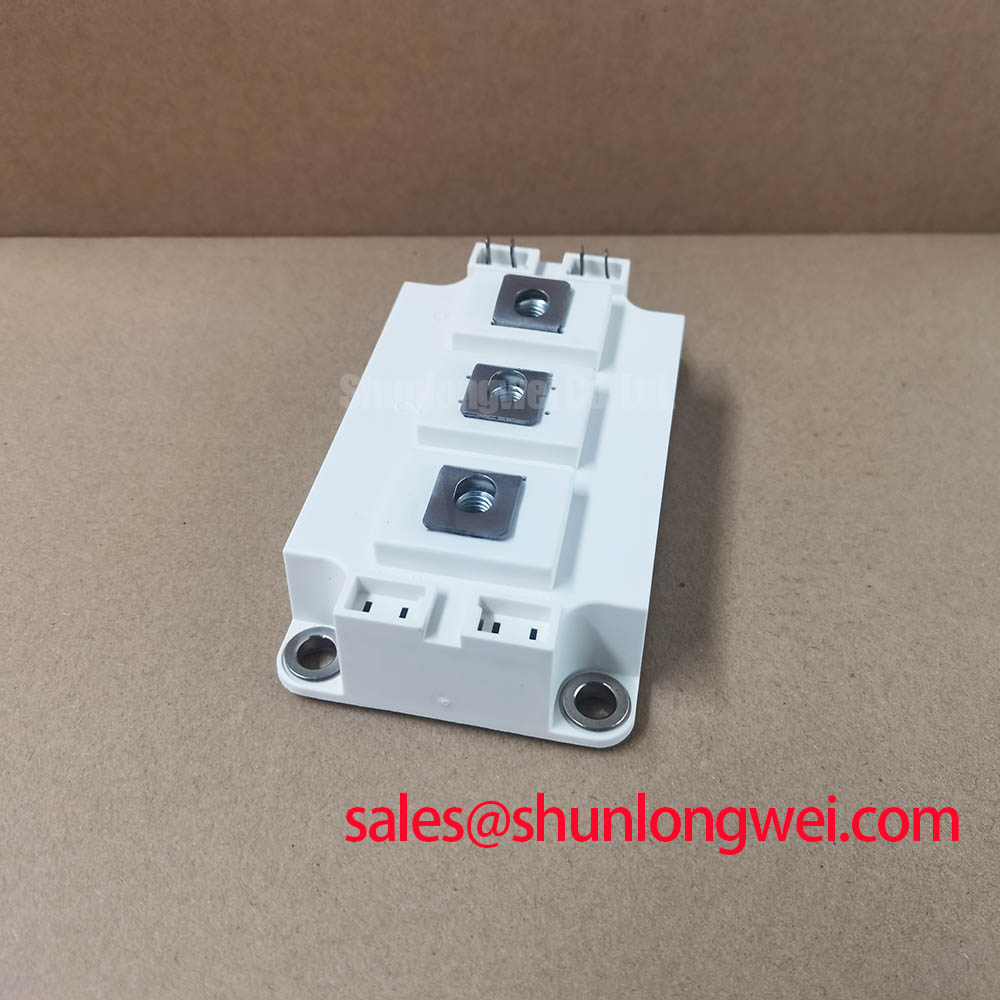

The Semikron SKM300GB128D is a cornerstone component for designers of high-power three-phase inverters. This 1200V / 300A 6-pack IGBT module packages proven technology into the industry-standard SEMiX 3 package, delivering a blend of performance, thermal stability, and rugged reliability that is essential for demanding industrial applications. It is engineered not just to meet specifications, but to provide a stable, long-life power switching solution for motor drives, UPS systems, and renewable energy converters.
Technical Deep Dive: The Engineering Behind the Reliability
The sustained performance of the SKM300GB128D stems from its meticulously integrated technologies. Two key features stand out for their direct impact on system efficiency and durability.
Proven IGBT4 Trench Field-Stop Technology
- Technical Principle: The module utilizes IGBT4 Trench Field-Stop technology, which represents a mature and optimized generation of IGBTs. This design achieves a very low collector-emitter saturation voltage (Vce(sat)), minimizing power dissipation during the on-state.
- Application Value: For the system designer, lower Vce(sat) directly translates to reduced conduction losses. This means less heat is generated, simplifying thermal management, potentially reducing heatsink size and cost, and ultimately increasing the overall energy efficiency of the end application.
CAL4F Freewheeling Diodes
- Technical Principle: Integrated alongside the IGBTs are CAL (Controlled Axial Lifetime) 4F freewheeling diodes. These diodes are engineered for "soft" recovery characteristics.
- Application Value: A soft recovery minimizes voltage overshoot and high-frequency oscillations during the diode's turn-off phase. This significantly reduces electromagnetic interference (EMI), which can simplify the design and cost of filtering circuits and help the system achieve EMC compliance more easily. The controlled switching behavior also reduces stress on the IGBTs, contributing to a longer system lifespan.
Multi-faceted Applications and Value Proposition
The SKM300GB128D is not a one-size-fits-all solution; its strengths are most apparent in specific high-power scenarios where reliability is non-negotiable.
- Industrial Motor Drives: In variable frequency drives (VFDs), the module's robust thermal cycling capability ensures dependable operation under fluctuating load conditions. Its low conduction losses improve drive efficiency, reducing operational energy costs over the lifetime of the machinery.
- Uninterruptible Power Supplies (UPS): For large-scale UPS systems, reliability is paramount. The proven technology within the Semikron SKM300GB128D provides the high availability required to protect critical loads. Its efficiency contributes to a lower total cost of ownership (TCO) by minimizing energy waste in standby and active modes.
- Solar and Wind Inverters: In renewable energy applications, the module effectively handles the demanding task of converting high DC voltage to grid-quality AC power. Its excellent thermal performance and robust packaging withstand the environmental and electrical stresses common in these systems, maximizing energy harvest and uptime.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C @ Tc = 80°C) | 300 A |
| Collector-Emitter Saturation Voltage (V_CE(sat), typ. @ I_C = 300A, Tvj = 125°C) | 1.85 V |
| Gate-Emitter Voltage (V_GES) | ±20 V |
| Isolation Voltage (V_isol, AC 50 Hz, t = 1 min) | 4000 V |
For a comprehensive list of parameters, please refer to the official datasheet.
Selection Guidance: SKM300GB128D vs. Newer Generation Modules
When selecting a power module, it's crucial to match the technology to the application's needs. The Semikron SKM300GB128D, based on IGBT4 technology, is an exceptional choice for applications operating at moderate switching frequencies (typically up to 10-15 kHz). It provides a fantastic balance of performance, ruggedness, and cost-effectiveness. For new designs pushing for maximum power density or operating at higher switching frequencies, you might consider modules based on newer technologies like IGBT7. These often feature even lower static losses but may come at a premium. The SKM300GB128D remains the go-to solution for upgrading existing systems or for new designs where proven reliability and value are the primary drivers.
To determine the best fit for your specific design constraints and performance targets, contact our technical specialists. We can help you navigate the trade-offs and find the optimal solution from our extensive portfolio of IGBT Modules.
