Assembly Integrity and Layout Architecture for T1503N75TS04

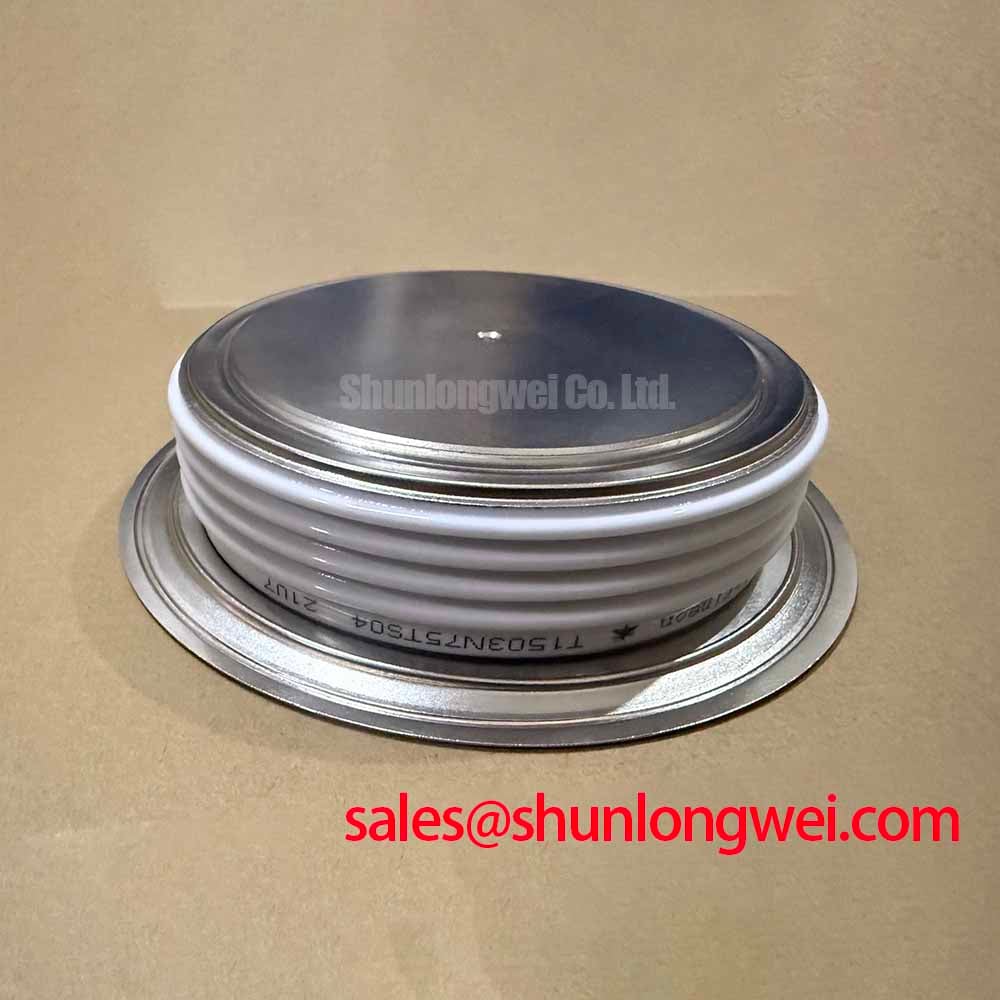

Before installation, verify the nameplate, terminal condition, baseplate flatness, and electrical boundary against the assembly record. The T1503N75TS04 is specified with a repetitive peak off-state voltage of 7500 V and an average on-state current of 1503 A at TC = 100°C. These are official specification values and should be evaluated with the actual rectifier duty cycle, cooling system, commutation behavior, and enclosure conditions.
Uniform heatsink contact is a practical priority for a high-current thyristor assembly. Clean the mating surfaces, inspect for burrs or contamination, and apply the approved thermal interface material consistently. The mounting hardware, terminal arrangement, and manufacturer-specified tightening procedure should be taken from the applicable mechanical drawing or datasheet. Do not infer a mounting torque value from the current rating alone, because excessive or uneven pressure can distort the assembly while insufficient pressure can increase thermal resistance.
| Parameter | Official Specification |
| Repetitive peak off-state voltage, VDRM / VRRM | 7500 V |
| Average on-state current, ITAVM | 1503 A at TC = 100°C |
| Surge on-state current, ITSM | 27000 A at 50 Hz, 10 ms |
| Critical rate of rise of on-state current, dI/dt | 300 A/µs |
| Operating junction temperature, Tvj op | −40°C to 125°C |
Field Alert: Confirm that the heatsink contact pressure is uniform before energizing the rectifier, since a visual fit does not verify thermal coupling.
T1503N75TS04 Circuit Protection and Reliability in Multi-Bridge Rectifiers
For a high-current green hydrogen electrolyzer DC power rectifier, engineers may evaluate six-pulse or twelve-pulse bridge arrangements according to transformer architecture, required DC ripple, and permitted supply harmonics. A twelve-pulse arrangement can use phase-shifted transformer secondaries and an interphase transformer to coordinate current sharing between bridge sections. The final firing-angle range, commutation overlap, and harmonic filter strategy remain system-level design decisions.
Protection coordination should begin with the specified ITSM rating of 27000 A for a 50 Hz, 10 ms half-cycle, then be checked against the semiconductor fuse let-through characteristic and the available short-circuit current. The fuse I²t coordination table for the applicable device and installation must be used; no fuse rating or I²t value is assumed here without the relevant manufacturer data. Fast semiconductor fuses, busbar impedance, transformer leakage, and the fault-clearing sequence should be reviewed together.
During commissioning, record bridge current balance, line current distortion, DC output ripple, and device temperature under the intended firing sequence. Designers should also verify gate-drive isolation, trigger timing, and terminal connections against the original rectifier documentation. For background on changing power-conversion architectures, the Future of Power Electronics guide provides additional industry context.
Benchtop Waveform Tuning for the 10 ms Surge Current Rating
Waveform testing should distinguish a controlled overload from a fault-clearing event. The official ITSM rating is 27000 A at 50 Hz and 10 ms, representing a defined surge-current test condition rather than a continuous operating target. Before reverse voltage is reapplied, verify junction-temperature assumptions, commutation timing, cooling conditions, and the actual current waveform with suitable isolated measurement equipment.
In a six-pulse or twelve-pulse bridge, firing-angle changes alter conduction duration, overlap, transformer current, and input harmonics. A controlled bench test should therefore capture gate pulses, anode-to-cathode voltage, phase current, DC output current, and the timing of reverse-voltage recovery. If the measured waveform differs from the known-good channel, investigate trigger timing, transformer balance, stray inductance, and measurement-loop bandwidth rather than assigning a single cause.
The −40°C to 125°C operating junction-temperature range is an official specification. Thermal safety margins must still be calculated from the complete thermal path, including baseplate, interface material, heatsink, coolant or airflow, and the measured electrical load. The system integrator should verify the permissible reverse-voltage and commutation conditions from the applicable device documentation.
Turn-On Current Rise Limiting and Snubber Verification
The listed dI/dt rating of 300 A/µs defines the critical rate of rise of on-state current for the specified device conditions. In practical bridge design, busbar symmetry, short commutation paths, and balanced terminal connections help limit localized current concentration. Designers should minimize parasitic loop inductance to control switching overshoot, then verify voltage and current margins during staged energization and double-pulse or equivalent switching tests.
An RC snubber can be evaluated for transient damping, while a series saturable reactor may be considered where the system fault and firing behavior require additional current-rise control. The values of Rs, Cs, and reactor characteristics must be determined from measured overshoot, load current, commutation inductance, switching frequency, and capacitor stress. They should not be copied from another rectifier topology without validation. The fuse I²t selection must also remain coordinated with the prospective fault current and the semiconductor clearing sequence.
For comparison work, engineers may review the electrically different TD210N12 as a separate device reference, not as an automatic substitute. Related Infineon power semiconductor families, including EconoPACK™ Plus and OptiMOS™ Low Voltage MOSFETs, address different voltage, current, switching, and package requirements. Final compatibility must be confirmed from the original converter schematic, mechanical drawing, protection study, and measured waveforms.
