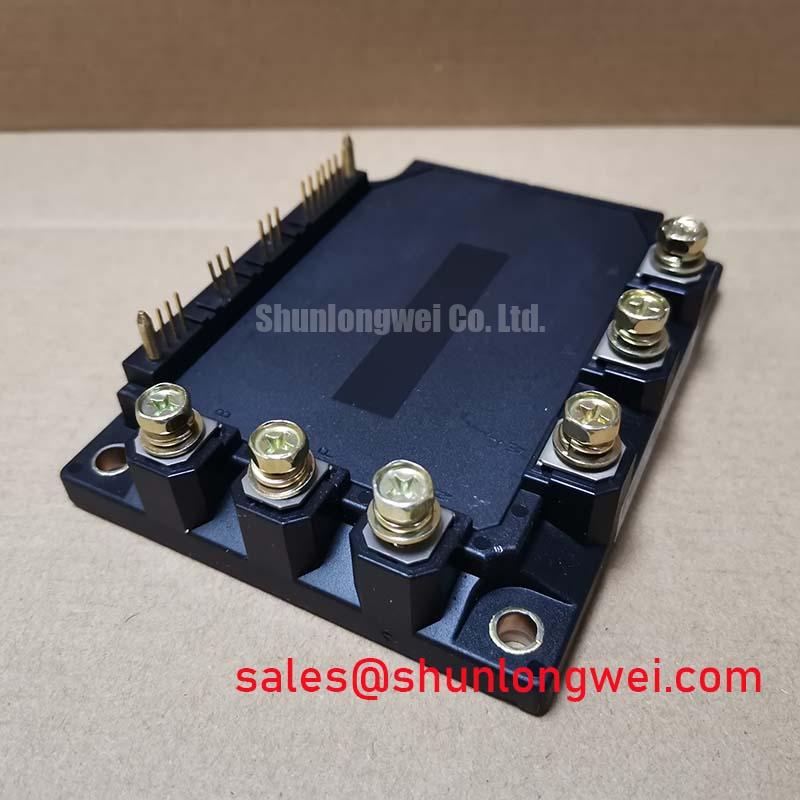

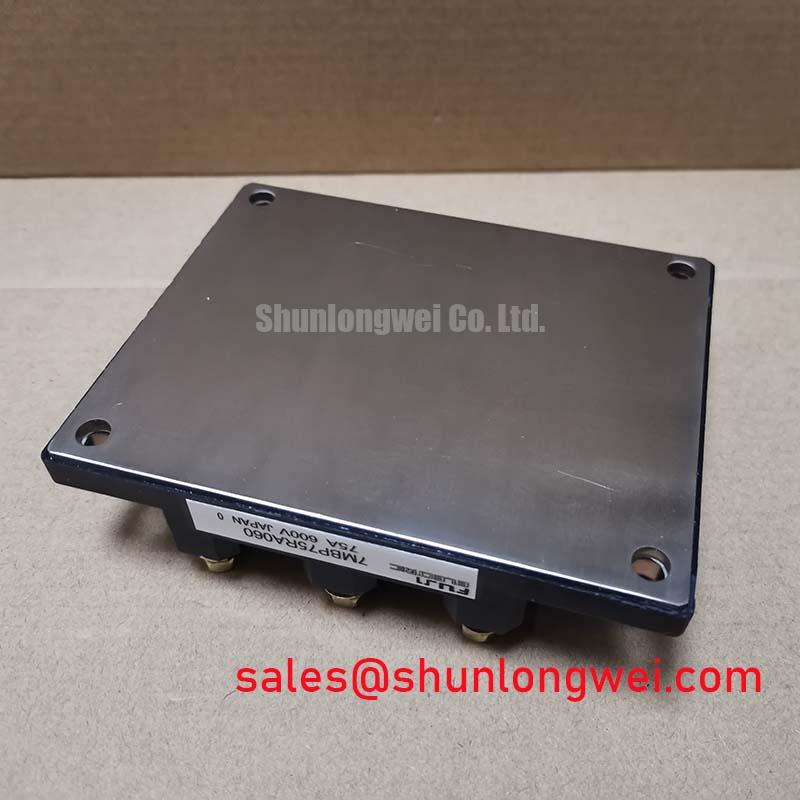

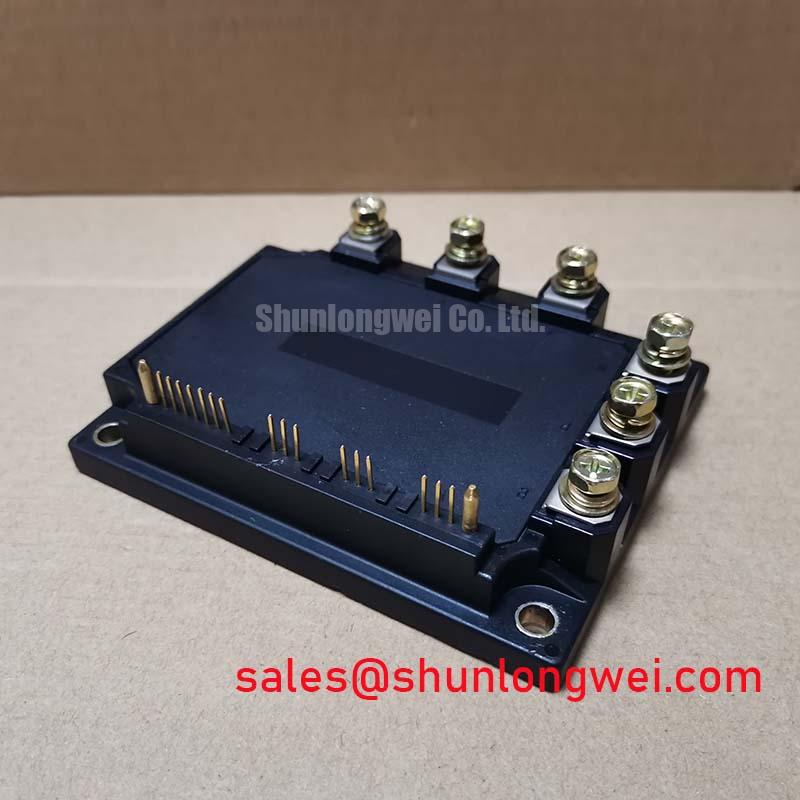

7MBP75RA060: Fuji Electric 600V/75A Intelligent Power Module for High-Reliability Motor Drives
Engineered for robust performance and simplified design in demanding motor control applications, the Fuji Electric 7MBP75RA060 is a highly integrated 7-in-1 IGBT Intelligent Power Module (IPM).
This R-series IPM delivers a streamlined solution by combining a three-phase IGBT inverter bridge, a brake chopper, and their associated gate drive and protection circuits into a single, compact package. Key specifications include: 600V | 75A | VCE(sat) of 2.7V (Max). The module's primary engineering benefits are enhanced thermal reliability and a significant reduction in system complexity. It directly addresses the need for robust overheating protection in variable frequency drives by integrating direct junction temperature detection. For systems requiring higher current handling up to 150A within a similar package, the related 7MBP150RA060 is also available.
Application Scenarios & Value
Achieving Enhanced Reliability and Simplified Thermal Management in Compact Inverters
The 7MBP75RA060 is specifically designed for low to medium-power motor control systems where reliability and efficient thermal management are critical design constraints. Its high level of integration makes it an excellent fit for applications such as Variable Frequency Drives (VFDs), industrial servo drives, and the power conversion stages of uninterruptible power supplies (UPS). A primary challenge for engineers designing compact motor drives is managing thermal stress, which is a leading cause of premature component failure. This IPM directly confronts this issue through its built-in overheating protection, which monitors the IGBT junction temperature in real-time. This feature allows for more aggressive, yet safe, system operation and can simplify heatsink selection, ultimately contributing to a smaller and more cost-effective final product. The integration of the brake chopper further simplifies the Bill of Materials (BOM) for applications requiring dynamic braking to control motor deceleration.
Key Parameter Overview
Decoding the Specs for System-Level Reliability and Performance
The specifications of the 7MBP75RA060 are tailored to provide a balance of performance, protection, and ease of use. The parameters below highlight its suitability for robust power conversion designs.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 600V | Provides a safe operating margin for applications running on 200/230V AC lines, protecting against voltage transients and ensuring reliable performance in common industrial power environments. |
| Collector Current (IC) | 75A (at Tc=25°C) | Defines the module's capacity for continuous current, making it suitable for driving motors in the approximate power range of 15 kW to 22 kW, depending on the specific application and cooling conditions. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.2V (Typ) / 2.7V (Max) | A lower VCE(sat) value translates directly to lower conduction losses during operation. This is like having a water pipe with less internal friction—more energy is delivered to the load (the motor) and less is wasted as heat, improving overall system efficiency. |
| Overheating Protection Trip Temperature (Tj(OH)) | 125°C (Min) | This is the module's critical self-preservation feature. By directly sensing the IGBT chip temperature and triggering an alarm/shutdown, it prevents catastrophic failure from thermal runaway, a crucial element for long-term operational reliability. |
| Isolation Voltage (Viso) | 2500V (AC, 1 minute) | Guarantees robust electrical isolation between the power circuit and the control logic/mounting base, a fundamental safety requirement in industrial equipment to protect operators and low-voltage control systems. |
Download the 7MBP75RA060 datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
Meeting the Demands for Higher Power Density and Uptime in Industrial Automation
The industrial automation landscape is continuously pushing for more compact and reliable machinery. As factory floor space becomes more valuable, engineers are tasked with designing smaller, more powerful motor drive systems. The 7MBP75RA060 from Fuji Electric directly supports this trend. By integrating seven power devices (a three-phase inverter and a brake chopper) along with their associated protection and drive circuits into one component, it drastically reduces the PCB footprint and simplifies assembly compared to a discrete solution. This integration is a key enabler for achieving higher power density. Furthermore, the emphasis on built-in protection features, especially direct thermal sensing, aligns with the industry's focus on maximizing uptime and minimizing maintenance. A drive built with this IPM is inherently more resilient to abnormal operating conditions, providing a strategic advantage for OEMs who prioritize the long-term reliability of their equipment.
Frequently Asked Questions (FAQ)
What is the primary benefit of the integrated overheating protection in the 7MBP75RA060?
The primary benefit is significantly enhanced system reliability. By directly monitoring the IGBT junction temperature, the module can protect itself from destructive thermal runaway events caused by overload conditions or cooling system failures, preventing catastrophic damage and costly downtime.
How does the "7-in-1" integration of this IPM simplify the design of a motor drive?
It consolidates the three-phase inverter, the dynamic braking chopper, gate drive logic, and protection circuits into a single component. This reduces the number of parts on the bill of materials, shrinks the required PCB area, simplifies the thermal design to a single heatsink interface, and shortens the overall development and assembly time.
Is the 7MBP75RA060 suitable for battery-powered applications?
With a VCES of 600V, it is primarily intended for AC line-powered systems (e.g., 230V AC). While it could be used in DC-powered systems, the voltage rating may be excessive for many common battery voltages, and a module with a lower voltage rating might offer better efficiency in those specific cases.
What does the VCE(sat) of 2.7V (Max) imply for thermal design?
This value is crucial for calculating conduction losses (P_loss = VCE(sat) * IC). A higher VCE(sat) means more heat is generated for the same amount of current. Engineers must use this maximum value in their thermal calculations to select an appropriate heatsink that can dissipate the generated heat and keep the module's junction temperature well below the 150°C maximum limit, ensuring reliable operation under worst-case conditions.
Can I parallel these modules for higher current output?
The datasheet for the 7MBP75RA060 does not explicitly specify provisions for paralleling. Paralleling IPMs is a complex task requiring careful attention to gate drive signals and thermal balancing. For applications requiring higher current, it is generally recommended to select a single module with a higher current rating, such as the 7MBP150RA060-01, to ensure reliable current sharing and system stability.
Strategic Engineering Perspective
Choosing the 7MBP75RA060 is a strategic decision for engineering teams aiming to balance performance with design efficiency and long-term field reliability. Its integrated nature shifts design complexity away from the PCB layout and into a pre-validated, thermally optimized module. This approach not only accelerates time-to-market but also builds a more robust and predictable end product by leveraging Fuji Electric's expertise in power module design and protection. For low-to-mid-power industrial drives, this IPM offers a compelling pathway to a more compact, reliable, and cost-effective system architecture.
