# What’s New in 7th Generation IGBT Technology? A Deep Dive into the Q4 2025 Landscape
In the world of power electronics, the pursuit of perfection is a relentless cycle of innovation. For years, engineers have battled the fundamental trade-offs in power semiconductor design: reducing conduction losses often meant accepting higher switching losses, and increasing power density introduced daunting thermal management challenges. As applications like electric vehicle (EV) inverters, utility-scale solar farms, and high-frequency industrial drives push performance boundaries, the limitations of previous IGBT generations have become increasingly apparent. The industry needed more than an incremental improvement; it needed a breakthrough.
Enter the 7th generation of Insulated Gate Bipolar Transistors (IGBTs). Arriving in the market with promises of shattered trade-offs and new performance benchmarks, this technology is not merely a refresh. It represents a fundamental redesign at the silicon level, poised to redefine what’s possible in power conversion. This deep dive explores the core technological breakthroughs of 7th generation IGBTs and what they mean for engineers and procurement managers in late 2024 and beyond.
## The Evolutionary Leap: From IGBT5 to the 7th Generation
To appreciate the significance of the 7th generation, it’s essential to understand its heritage. Generations like Infineon’s IGBT4 and IGBT5, or Mitsubishi’s 6th and 6.1 Gen CSTBT™, were workhorses that powered countless applications. They successfully optimized the classic trade-off between the collector-emitter saturation voltage (Vce(sat)) and the turn-off switching energy (E_off). Lowering Vce(sat) reduces the power lost as heat during the ‘on’ state, which is crucial for low-frequency applications like motor drives. Conversely, reducing E_off is vital for high-frequency systems like solar inverters and welders, as switching losses accumulate with every cycle.
However, these generations were approaching a point of diminishing returns. Pushing Vce(sat) lower would inevitably spike switching losses, and vice versa. This created a design ceiling. 7th generation technology, such as Infineon’s TRENCHSTOP™ IGBT7 and Mitsubishi’s 7th Gen IGBT modules, attacks this problem at its core with novel silicon structures and optimized co-packaged components.
## Key Technological Breakthroughs of 7th Generation IGBTs
The latest IGBTs are not defined by a single feature but by a synergy of advancements. Three pillars stand out: redesigned cell structures, optimized diode performance, and enhanced thermal capabilities.
### Breakthrough 1: Redesigned Cell Structures (MPT – Micro-Pattern Trench)

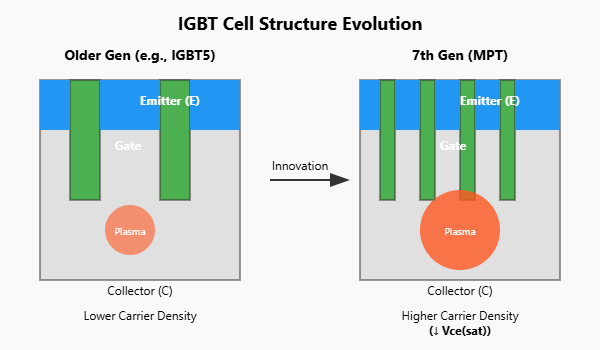

The most significant innovation lies in the IGBT’s cell structure. Previous generations used well-established trench gate designs. The 7th generation introduces what is known as Micro-Pattern Trench (MPT) technology. Imagine the flow of charge carriers through the silicon as cars on a highway. Older designs had fewer, wider lanes. The MPT concept is akin to building a super-highway with many more, narrower lanes packed closely together.
This new topology dramatically increases the cell density on the silicon die. The result is a much more efficient management of the plasma (charge carrier) concentration within the device during conduction. This directly leads to a significantly lower Vce(sat) for the same chip area, reducing static losses by as much as 20% compared to the previous generation. Crucially, this is achieved with only a marginal increase in switching losses, effectively “breaking” the traditional Vce(sat)-E_off trade-off curve. This leap forward allows for the design of systems that are more efficient at both low and high operating frequencies. For a deeper understanding of the core principles, exploring the fundamental IGBT structure is highly beneficial.
### Breakthrough 2: Optimized Diode Performance (EC7 Diodes)
An IGBT module’s performance is only as good as its companion Free-Wheeling Diode (FWD). In hard-switching applications, a poorly-behaved diode can cause voltage overshoots and oscillations, increasing system-level losses and electromagnetic interference (EMI). The 7th generation brings new Emitter-Controlled (EC7) diodes specifically engineered to partner with the new MPT IGBT chips.
These diodes exhibit a much “softer” reverse recovery characteristic. This gentler switching behavior drastically reduces voltage peaks during turn-on, simplifying the design of snubber circuits and improving the module’s overall robustness. Furthermore, the forward voltage drop (Vf) of the diode has been reduced, and its temperature dependency optimized. The new EC7 diodes maintain low Vf even at elevated temperatures, which is a marked improvement over previous generations where Vf would increase more significantly with heat.
### Breakthrough 3: Enhanced Thermal Performance and Power Cycling
Higher power density is meaningless if you can’t get the heat out. 7th generation modules are designed to operate at higher junction temperatures (Tj(op)), often up to 175°C. This provides a larger thermal budget for designers, allowing them to either push more power through the same package or use a smaller, less expensive cooling system for the same power output.
This increased temperature tolerance is supported by advancements in packaging. Many manufacturers are moving towards advanced interconnect technologies like sintering instead of traditional soldering. Sintering creates a stronger, more reliable bond between the chip and the substrate, offering superior thermal resistance and significantly boosting power cycling capability. This enhanced reliability is critical for applications with frequent temperature swings, such as EV drivetrains and wind turbine pitch controls.
## Comparative Analysis: 7th Gen vs. Predecessors
For engineers and procurement managers, the benefits must be quantifiable. The following table provides a high-level comparison between a typical 5th generation module and a new 7th generation equivalent.
| Parameter | 5th Gen IGBT (e.g., IGBT5) | 7th Gen IGBT (e.g., TRENCHSTOP™ 7) | Impact on System Design |
|---|---|---|---|
| Vce(sat) (Static Loss) | Standard for its class | ~10-20% lower | Higher efficiency, especially in motor drives. Reduced heatsink requirements. |
| Switching Loss (E_off) | Optimized for specific frequencies | Slightly higher, but Vce(sat) reduction far outweighs it | Overall loss reduction allows for higher operating frequencies, shrinking passive components. |
| Max Junction Temp (Tj,max) | Typically 150°C (op) / 175°C (max) | 175°C (op) | Increased power density, greater overload capability, and enhanced reliability. |
| Power Density | Baseline | Up to 30% higher for the same footprint | Smaller, lighter, and more cost-effective power converters. |
| Diode Behavior | Standard recovery | Softer recovery, lower Vf | Lower EMI, reduced voltage overshoot, and improved system-level reliability. |
## Practical Implications for Engineers and System Designers
These technological advancements translate directly into tangible design benefits across various high-power applications.
### Application Spotlight: Electric Vehicle (EV) Traction Inverters
In the highly competitive EV market, every percentage point of efficiency and every kilogram of weight matters.
- Problem: Automakers need smaller, lighter, and more efficient traction inverters to maximize vehicle range and reduce cost.
- Solution: 7th Gen IGBTs enable this by reducing overall power losses. The lower Vce(sat) directly cuts down on heat generation, allowing for a smaller and lighter liquid cooling system. The ability to operate at slightly higher switching frequencies without a severe loss penalty also helps shrink the size of bulky DC-link capacitors. This is a critical factor in achieving the goals of next-generation platforms, as discussed in guides on 800V architectures.
- Result: Potential for a 10-20% reduction in inverter volume and a measurable increase in driving range due to improved powertrain efficiency. The enhanced power cycling capability also contributes to a longer inverter lifetime, a key metric for automotive reliability.
### Application Spotlight: Solar and Wind Inverters
For renewable energy systems, the goal is to maximize energy harvest and ensure long-term reliability in often harsh environments.
- Problem: Inverter efficiency directly impacts the levelized cost of energy (LCOE). Systems must be highly reliable to operate for 20+ years with minimal maintenance.
- Solution: The lower loss profile of 7th gen IGBTs, such as those from major manufacturers like Mitsubishi and Infineon, improves the Maximum Power Point Tracking (MPPT) efficiency of solar inverters, capturing more energy from the panels throughout the day. The higher operating temperature and superior thermal cycling of modules, like those in the advanced CM600DX-24T class, mean they can withstand the daily and seasonal temperature swings common in outdoor installations, leading to a more robust and long-lasting system.
- Result: Higher annual energy production (AEP), lower LCOE, and improved return on investment for renewable energy projects.
### A Note on Gate Drive Design
With greater power comes the need for finer control. The faster switching characteristics and refined input parameters of 7th generation IGBTs necessitate a careful look at the gate drive circuitry. The lower internal gate-collector capacitance (Cgc) reduces the Miller plateau, but also makes the device more sensitive to gate loop inductance. A clean, low-inductance PCB layout and a robust gate driver capable of providing clean, sharp pulses are essential to fully harness the technology’s potential and ensure reliable switching.
## Is It Time to Upgrade? A Decision-Making Checklist
For your next project, consider the following questions:
- Are you designing a new, high-performance system where efficiency and power density are paramount?
- Is reducing the size and cost of your thermal management system a key objective?
- Does your application demand the highest possible reliability and a long operational lifetime (e.g., automotive, utility-scale renewables)?
- Are you facing design limitations with current-generation IGBTs that are holding back your product’s performance?
If you answered “yes” to two or more of these, it is time to seriously evaluate 7th generation IGBT modules. Exploring a comprehensive catalog of IGBT modules can provide a clear picture of the available options and their specifications.
## Conclusion: The New Benchmark in Power Electronics
The arrival of 7th generation IGBT technology is a pivotal moment for power electronics. By fundamentally re-engineering the silicon and its surrounding package, manufacturers have delivered a new class of device that offers lower losses, significantly higher power density, and superior operational reliability. This is not just an incremental step; it’s a leap that empowers engineers to design smaller, lighter, and more efficient power conversion systems than ever before.
For anyone involved in the design or procurement of high-power systems, understanding these breakthroughs is no longer optional—it’s essential for staying competitive. As these new modules become more widely available, they will undoubtedly become the new industry standard, driving innovation from the electric vehicle on your driveway to the power grid that supports it. For expert guidance on selecting the right 7th generation IGBT for your specific application, don’t hesitate to consult with the specialists at SLW-ELE.com
