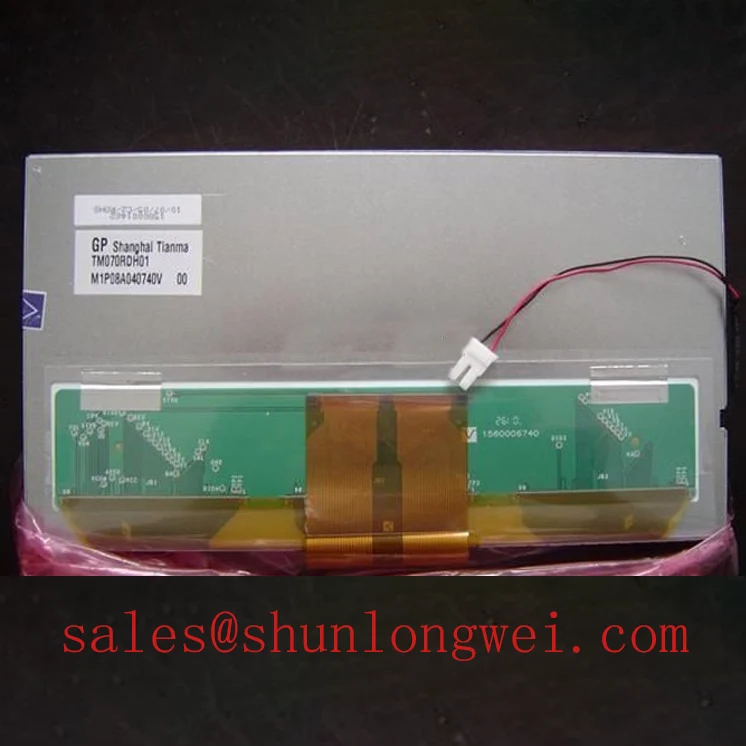

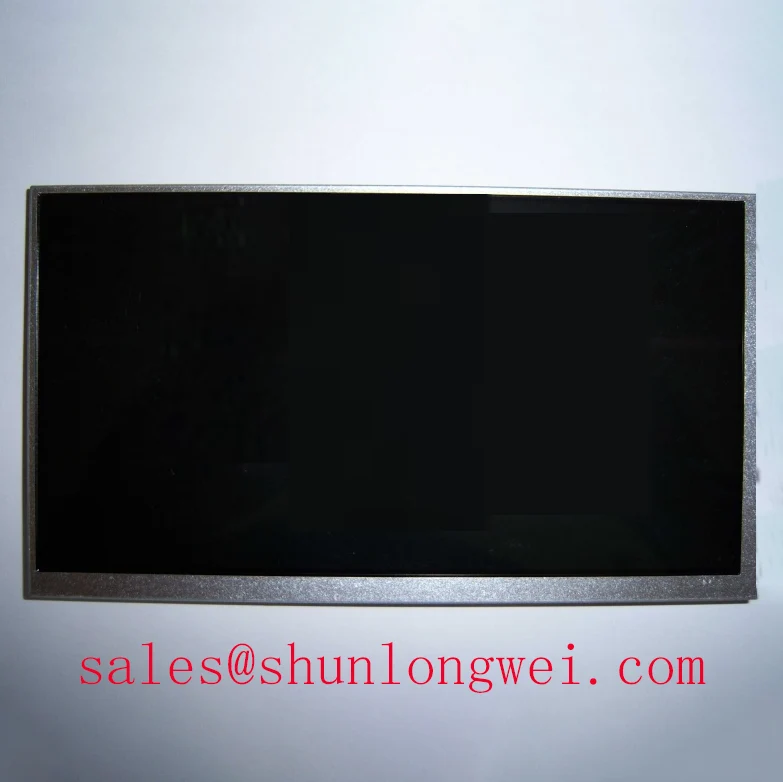

- Brand: TIANMA
- Model: P/NTM070RDH01
- Diagonal Size: 7.0 inches
- Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
- Resolution: 800 (RGB) × 480 pixels, WVGA
- Pixel Format: RGB Vertical Stripe
- Active Area: 157.2 (W) × 82.32 (H) mm
- Bezel Opening: 160.2 (W) × 85.32 (H) mm
- Outline Size: 167 (W) × 93 (H) × 6.1 (D) mm
- Brightness: 400 cd/m² (Typical)
- Contrast Ratio: 400:1 (Typical)
- Viewing Angle: 70/70/60/70 degrees (Typical) for Left/Right/Up/Down (CR≥10)
- Best View on: 12 o'clock
- Display Colors: 262K (50% NTSC)
- Frequency: 60Hz
- Weight: 138g (Typical)
- Surface: Antiglare
- Display Mode: TN (Twisted Nematic), Normally White, Transmissive
- Response Time: 25 milliseconds (Typical) for Tr+Td (Rise and Fall time)
- Lamp Type: 3S10P WLED (White LED), rated for 20,000 hours, without LED Driver
- Touch Screen: Without
- Application: Automotive Display, Digital Photo Frame, Portable DVD Player
- Signal Interface: TTL (1 channel, 6-bit), 60 pins FPC (Flexible Printed Circuit)
- Input Voltage: 3.3V (VCC), 3.3V (VDD1), 9.84V (VDD2), 19.0V (VGG), -7.0V (VEE)
- Environment:
- Operating Temperature: -20 to 70 °C
- Storage Temperature: -30 to 80 °C
