Tianma TM070RDH10-20 | Robust 7.0" WVGA Display for Industrial Applications

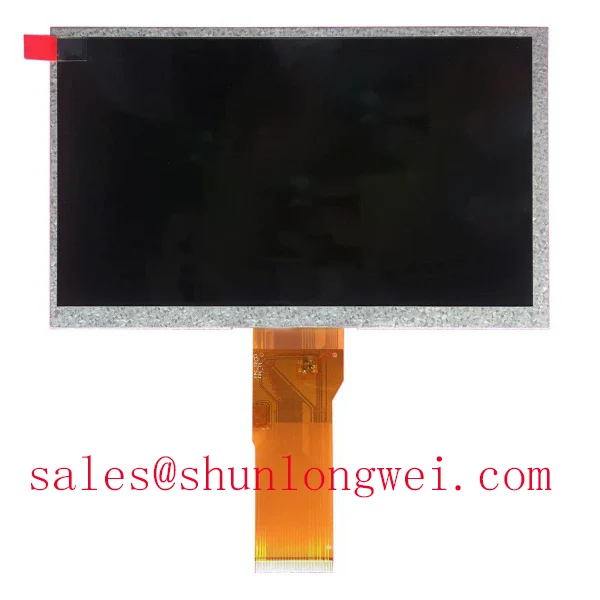

The Tianma TM070RDH10-20 is a 7.0-inch TFT-LCD panel engineered for consistency and reliability in demanding industrial environments. It's a workhorse display, designed not for headline-grabbing specs, but for long-term performance where durability, stable supply, and straightforward integration are paramount. This makes it an ideal choice for a wide range of Human-Machine Interface (HMI), control system, and instrumentation applications.
Key Performance Highlights
- Industrial-Grade Temperature Range: With an operating window of -20°C to 70°C, this display is built to function reliably in unconditioned factory floors, outdoor-adjacent enclosures, and transportation systems.
- Standard WVGA Resolution: The 800x480 resolution provides a clear and effective canvas for graphical user interfaces, diagnostic data, and operator controls without overburdening system processors.
- WLED Backlight System: Features a durable and energy-efficient White LED backlight, ensuring stable brightness (350 cd/m²) and a long operational lifespan.
- Proven Interface: Utilizes a standard Parallel RGB (8-bit) interface, simplifying driver board design and ensuring compatibility with a wide array of microcontrollers and embedded systems.
Key Parameters Overview
The following table outlines the core specifications for the TM070RDH10-20, providing a quick reference for system design and integration. For comprehensive electrical and mechanical details, you can download the complete datasheet.
| Parameter | Specification |
|---|---|
| Manufacturer | Tianma |
| Screen Size | 7.0 inch |
| Resolution | 800(RGB)×480 [WVGA] |
| Display Technology | a-Si TFT-LCD, TN |
| Brightness (Typical) | 350 cd/m² |
| Viewing Angle (L/R/U/D) | 70/70/50/70 (Typ.) (CR≥10) |
| Contrast Ratio (Typical) | 500:1 |
| Interface Type | Parallel RGB (1 ch, 8-bit) |
| Operating Temperature | -20 ~ 70 °C |
| Backlight | WLED |
Application Scenarios & Engineering Value
The Tianma TM070RDH10-20 excels in applications where operational resilience is more critical than cutting-edge display features. Its design choices directly address common industrial pain points.
- Industrial Control Panels: The wide operating temperature ensures the HMI remains functional and readable whether the facility is hot or cold. Its standard TN panel is perfectly suited for single-operator stations where the user is positioned directly in front of the screen.
- Medical Instrumentation: In devices like patient monitors or diagnostic equipment, reliability is non-negotiable. The proven a-Si TFT (Amorphous Silicon) technology and robust build provide the long-term stability required for medical certifications and use.
- Test & Measurement Equipment: For portable or benchtop devices, the straightforward Parallel RGB interface simplifies the electronics design, potentially lowering BOM costs and shortening development cycles compared to more complex serial interfaces.
Technical Deep Dive: The Engineering Behind the Specs
Understanding the "why" behind the specifications reveals the TM070RDH10-20's strategic value. Two key elements stand out: its temperature tolerance and interface choice.
First, the -20°C to 70°C operating range is a direct result of material science and mechanical engineering. Achieving this tolerance requires specific liquid crystal fluid formulations that resist freezing or degradation, polarizers that remain stable, and adhesives and sealants that prevent delamination under thermal cycling. This is a mark of a true industrial-grade component, not just a consumer display repurposed for industrial use.
Second, the choice of a Parallel RGB interface is a deliberate engineering decision favoring robustness and simplicity. While high-speed interfaces like LVDS or MIPI are common in consumer electronics, they can introduce EMI/EMC challenges in electrically noisy industrial environments. The parallel interface is less complex to implement and debug, making it a reliable, cost-effective solution for systems where video bandwidth is not the primary constraint.
Frequently Asked Questions (FAQ)
Is the TM070RDH10-20 suitable for outdoor use?
With a brightness of 350 cd/m², this display is designed for indoor or heavily shaded environments. It is not considered sunlight-readable. For applications in direct or bright ambient light, a display with a brightness of 1000 cd/m² or more, often combined with optical bonding, is necessary. For a deeper understanding, explore our definitive engineer's guide to sunlight-readable HMIs.
What is the primary trade-off compared to an IPS display?
The main difference lies in the Viewing Angle. The TM070RDH10-20 uses TN (Twisted Nematic) technology, which offers fast response times but has more limited viewing angles, especially vertically. This is ideal for single-user interfaces. An IPS (In-Plane Switching) panel would provide much wider, more color-consistent viewing angles for multiple observers but typically comes at a higher price point. The choice depends entirely on the end-use case.
For projects requiring a balanced, reliable, and cost-effective HMI solution, the Tianma TM070RDH10-20 is an exceptional choice. If you are integrating this model or looking for similar industrial LCD displays for your project, please contact our technical team for pricing, availability, and integration support.
