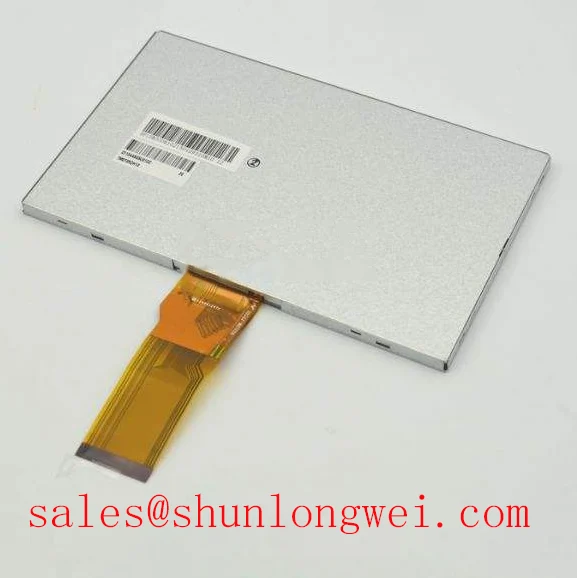

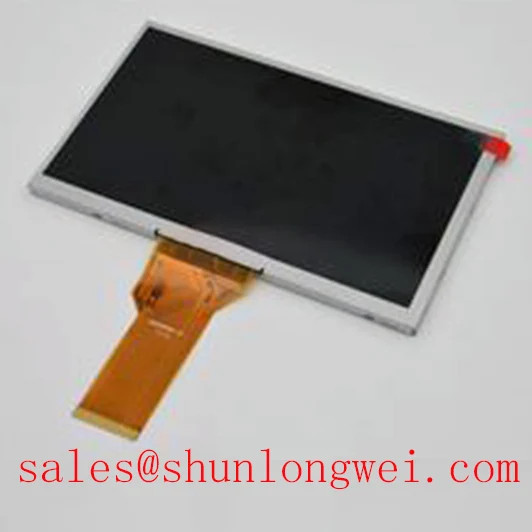

- Brand: TIANMA
- Model: P/NTM070RDHG23-40
- Diagonal Size: 7.0 inches
- Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
- Resolution: 800 (RGB) × 480 pixels, WVGA
- Pixel Format: RGB Vertical Stripe
- Active Area: 154.08 (W) × 85.92 (H) mm
- Bezel Opening: 157.08 (W) × 89.39 (H) mm
- Outline Dimensions: 165 (H) × 100 (V) × 6 (D) mm
- Treatment: Antiglare, Hard coating (3H)
- Luminance: 1400 cd/m² (Typical)
- Contrast Ratio: 1000:1 (Typical)
- Viewing Angle: 80/80/60/80 degrees (Typical) for Left/Right/Up/Down (CR≥10)
- Response Time: 25 milliseconds (Typical) for Tr+Td (Rise and Fall time)
- View Direction: 12 o'clock
- Operating Mode: TN (Twisted Nematic), Normally White, Transmissive
- Support Color: 16.7 million (50% NTSC)
- Light Source: WLED (White LED) [6S5P], rated for 40,000 hours, without LED Driver
- Weight: 150 grams (Typical)
- Designed For: Industrial, Outdoor, High Brightness applications
- Frame Rate: 60Hz (can support higher frame rates with MEMC, as mentioned)
- Touch Panel: Not included
- Interface Type: Parallel RGB (1 channel, 8-bit), 50 pins FPC (Flexible Printed Circuit)
- Power Supply: 3.3V (VCC), 10.4V (AVDD), 16.0V (VGH), -7.0V (VGL) (Typical)
- Environment:
- Operating Temperature: -20 to 70 °C
- Storage Temperature: -30 to 80 °C
