- Brand: TIANMA

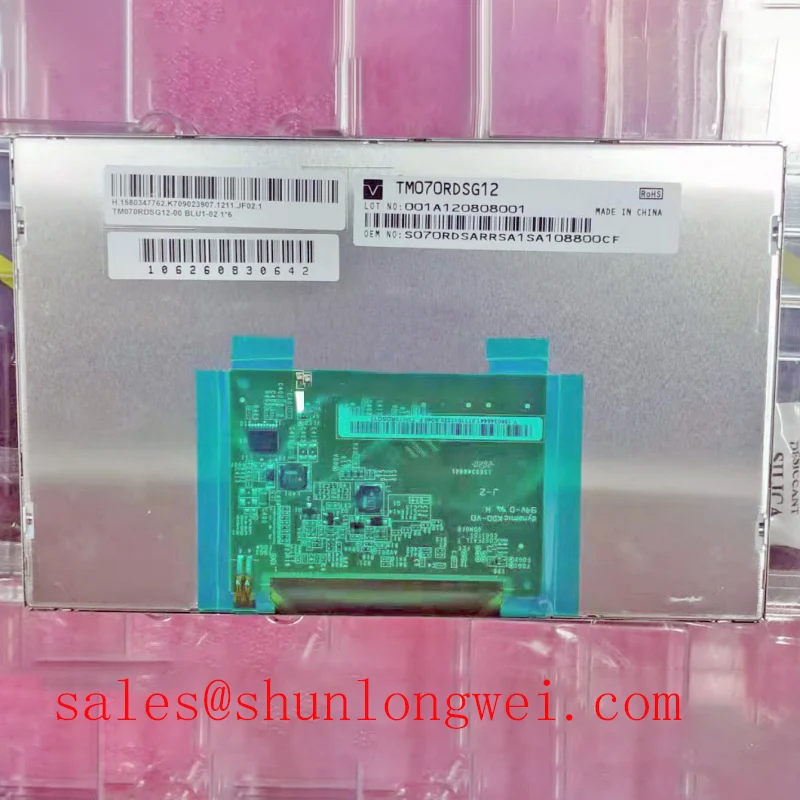

- Model: P/NTM070RDSG12
- Diagonal Size: 7.0 inches
- Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
- Resolution: 800 (RGB) × 480 pixels, WVGA
- Pixel Format: RGB Vertical Stripe
- Active Area: 152.4 (W) × 91.44 (H) mm
- Bezel Opening: 154.4 (W) × 93.44 (H) mm
- Outline Dimensions: 167 × 106.3 × 9.8 mm (H×V×D)
- Treatment: Antiglare
- Luminance: 400 cd/m² (Typical)
- Contrast Ratio: 1000:1 (Typical)
- Viewing Angle: 85/85/85/85 degrees (Typical) for Left/Right/Up/Down (CR≥10)
- Response Time: 20 milliseconds (Typical) for Tr+Td (Rise and Fall time)
- Good View at: Symmetry
- Work Mode: SFT (Super Fine TFT), Normally Black, Transmissive
- Color Depth: 262K/16.7M (70% NTSC)
- Backlight: 7S3P WLED (White LED), rated for 50,000 hours, with LED Driver
- Mass: 175 grams (Typical)
- Used for: Industrial applications
- Refresh Rate: 60Hz (can support higher frame rates with MEMC, as mentioned)
- Touchscreen: Not included
- Signal Type: LVDS (Low-Voltage Differential Signaling), 1 channel, 6/8-bit, 20 pins Connector
- Voltage Supply: 3.3V (Typical)
- Max. Ratings:
- Storage Temperature: -30 to 80 °C
- Operating Temperature: -20 to 70 °C
