Content last revised on September 18, 2023

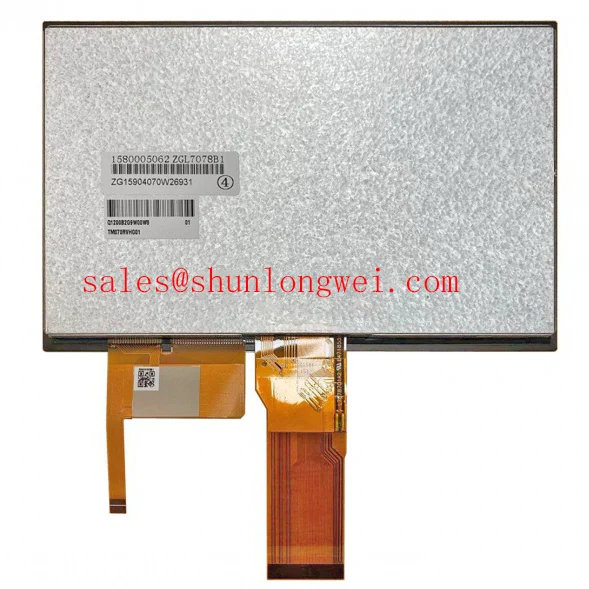

- Diagonal Size: 7.0 inches
- This is the size of the display panel measured diagonally.
- Panel Type: a-Si TFT-LCD, LCM
- The display panel is of the a-Si (amorphous silicon) Thin-Film Transistor Liquid Crystal Display (TFT-LCD) type.
- Resolution: 800(RGB)×480, WVGA
- The panel has a resolution of 800 pixels in the horizontal (RGB) direction and 480 pixels in the vertical direction, making it a WVGA display.
- Pixel Format: RGB Vertical Stripe
- The arrangement of the pixels on the panel is in an RGB vertical stripe format.
- Active Area: 154.08(W)×85.92(H) mm
- This is the dimension of the screen's active area where images are displayed.
- Bezel Opening: 157.08(W)×89.39(H) mm
- This is the opening in the bezel through which the active area is visible.
- Outline Dimensions: 171.5(W)×110.3(H)×7.65(D) mm
- These are the physical dimensions of the entire display panel.
- Treatment: Hard coating (3H), Reflection 4.0% (Max.)
- The display panel has a hard coating with a hardness of 3H and a maximum reflection of 4.0%.
- Luminance: 300 cd/m² (Typ.)
- The typical brightness of the display is 300 nits (candelas per square meter).
- Contrast Ratio: 500:1 (Typ.)
- The typical contrast ratio of the display is 500:1.
- Viewing Angle: 70/70/60/70 (Typ.)(CR≥10) Left / Right / Up / Down
- The typical viewing angles for the display are 70 degrees to the left, 70 degrees to the right, 60 degrees up, and 70 degrees down, with a contrast ratio of at least 10.
- Response Time: 20 (Typ.)(Tr+Td) ms
- The typical response time of the display is 20 milliseconds (milliseconds) for both rise and fall times.
- View Direction: 12 o'clock
- The optimal viewing direction for this display is at 12 o'clock.
- Operating Mode: TN, Normally White, Transmissive
- The display panel uses a Twisted Nematic (TN) technology, is normally white in its unpowered state, and is transmissive.
- Support Color: 262K/16.7M (50% NTSC)
- The display supports 262,000 colors in 6-bit mode and 16.7 million colors in 8-bit mode, covering approximately 50% of the NTSC color gamut.
- Light Source: WLED [3S8P], 30K hours, W/O Driver
- The panel uses a White Light Emitting Diode (WLED) backlight with a rated lifetime of 30,000 hours. It does not require an external LED driver.
- Weight: 216g (Typ.)
- The weight of the display panel is approximately 216 grams.
- Designed For: Industrial
- The display panel is designed for industrial use.
- Touch Panel: PCAP (Projected Capacitive), Air Bonding, I²C
- The display includes a Projected Capacitive Touch Panel with air bonding and supports I²C communication.
- Frame Rate: 60Hz
- The panel has a standard frame rate of 60Hz.
- Interface Type: Parallel RGB (1 ch, 6/8-bit), 50 pins FPC
- The display panel uses a parallel RGB interface with 1 channel and either 6-bit or 8-bit data, and it connects via a 50-pin Flexible Printed Circuit (FPC) connector.
- Power Supply: 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGG/VEE)
- The typical input voltage requirements for various power supplies are provided.
- Environment:
- Operating Temperature: -20 ~ 70 °C
- Storage Temperature: -30 ~ 80 °C
