Content last revised on September 18, 2023

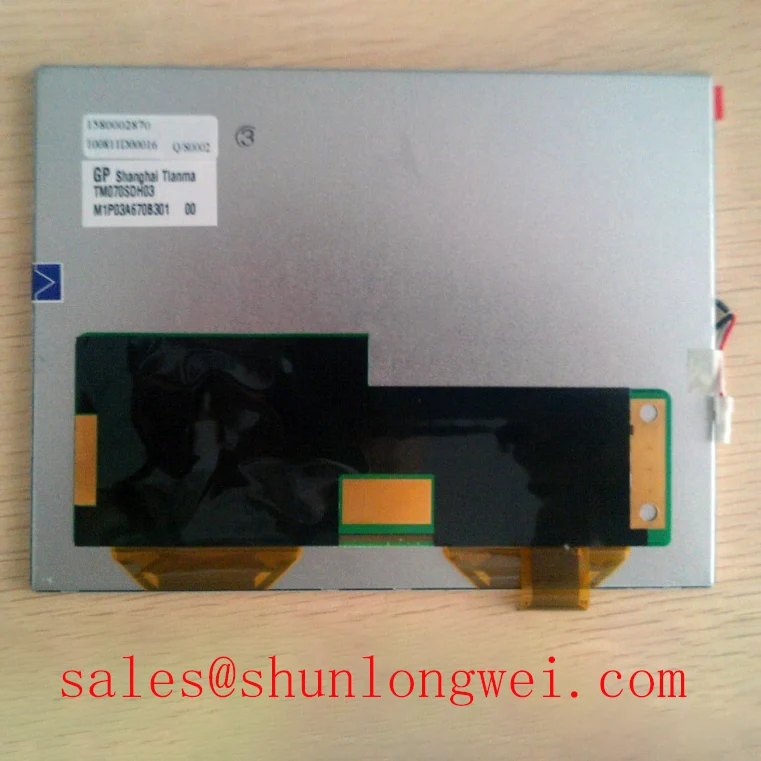

Diagonal Size: 7.0 inches
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 800 (RGB) × 600 pixels, SVGA, with a pixel format of RGB Vertical Stripe
Active Area: 141(W) × 105.75(H) mm
Bezel Opening: 143.5(W) × 108.25(H) mm
Outline Size: 155.5(W) × 118.7(H) × 3.7(D) mm
Brightness: 200 cd/m² (Typical)
Viewing Angle: 70/70/60/70 degrees (Typical) for Left/Right/Up/Down (CR≥10)
Best View on: 12 o'clock
Display Colors: 262K, covering 50% of the NTSC color gamut
Frequency: 60Hz (Panel refresh rate), 120Hz (with embedded MEMC circuit, 60Hz input), 240Hz (with embedded MEMC circuit, 60Hz input)
Weight: Not specified (TBD)
Surface: Antiglare
Contrast Ratio: 500:1 (Typical)
Display Mode: TN (Twisted Nematic), Normally White, Transmissive
Response Time: 25 milliseconds (Typical, Tr+Td)
Lamp Type: 3S6P WLED (White LED), with a lifespan of 20,000 hours, without a driver
Touch Screen: Not included
Application: Digital Photo Frame, Portable DVD Player
Signal Interface: Parallel RGB (1 channel, 6-bit), 30 pins FPC (Flexible Printed Circuit)
Input Voltage: 3.3V (Typical)
Environment: Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C
This display module is designed for various applications, including digital photo frames and portable DVD players, and it offers decent specifications such as a 7.0-inch SVGA resolution display with a 262K color palette and a typical brightness of 200 cd/m².
