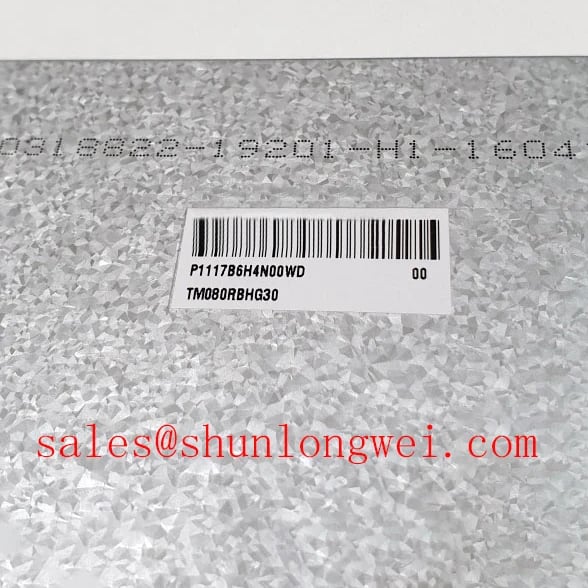

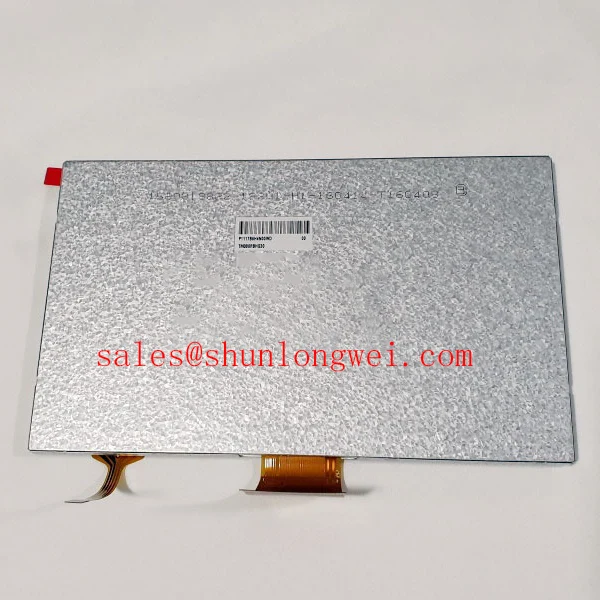

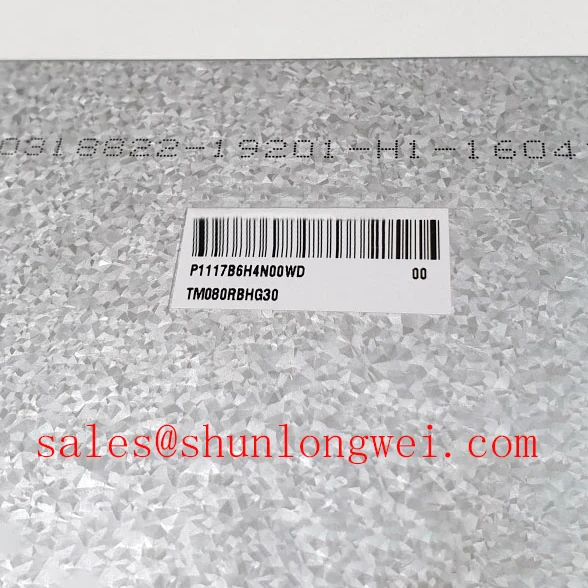

Tianma TM080RDHG30 LCD Display

Tianma TM080RDHG30 | Robust 8.0" SVGA Display for Demanding Industrial Environments

The Tianma TM080RDHG30 is an 8.0-inch SVGA TFT-LCD module engineered not just for display, but for performance and endurance in challenging operational contexts. It moves beyond standard consumer-grade panels, delivering the optical clarity, ruggedness, and extended lifecycle required by professional systems. This display is the definitive choice for applications where visual consistency and reliability are non-negotiable.

• Model: TM080RDHG30
• Brand: Tianma
• Core Technology: 8.0" SFT (IPS-like) TFT-LCD with a long-life WLED backlight system.
• Key Strengths: Exceptional viewing angles, high contrast, and a wide operating temperature range.
• Primary Applications: Industrial Human-Machine Interfaces (HMI), medical diagnostic equipment, test and measurement instruments, and transportation control systems.

Technical Deep Dive: Engineered for Clarity and Durability

Two core engineering decisions elevate the Tianma TM080RDHG30 above its competitors, directly addressing common pain points in industrial design.

Superior Visual Performance with SFT (IPS-like) Technology

• The Principle: SFT (Super Fine TFT) technology, analogous to IPS (In-Plane Switching), arranges liquid crystal molecules to move parallel to the panel's surface. This contrasts sharply with traditional TN (Twisted Nematic) panels where crystals twist perpendicularly.
• The Value for Your Application: This architecture dramatically minimizes off-axis color and contrast shifts. For an operator on a factory floor or a clinician viewing a medical device, it means the displayed information is accurate and legible from virtually any angle. This is a critical feature for a industrial power electronics HMI, where misinterpreting data due to viewing angle limitations is not an option. It ensures ergonomic flexibility in equipment design and reduces operator error.

Uncompromised Operation in Extreme Temperatures

• The Principle: The TM080RDHG30 utilizes specialized wide-temperature liquid crystals and robust electronic components that are validated to perform consistently from -20°C to 70°C. The entire assembly, from the driver IC to the backlight unit, is designed to prevent performance degradation at temperature extremes.
• The Value for Your Application: This wide temperature range guarantees operational stability in environments without climate control, such as outdoor kiosks, unheated warehouses, vehicle cabins, or manufacturing facilities with significant heat-generating machinery. It reduces the need for costly external heating or cooling systems and ensures system longevity by mitigating failures caused by thermal stress. The module's construction reflects principles seen in high-reliability power electronics packaging, where thermal management and mechanical stability are paramount.

Multi-Faceted Applications: Where the TM080RDHG30 Excels

The specific technical advantages of the Tianma TM080RDHG30 translate into tangible benefits across several demanding sectors:

• Industrial HMI Panels: In high-stakes manufacturing environments, the display’s SVGA resolution provides sharp rendering of schematics and control menus. Its durability withstands vibrations and its wide viewing angle allows multiple personnel to monitor a process simultaneously without crowding a single optimal viewing spot.
• Medical Diagnostic Equipment: For devices like patient monitors or ultrasound systems, color fidelity and contrast are vital for accurate diagnosis. The SFT panel ensures that critical diagnostic information is presented without distortion, regardless of the clinician's position relative to the screen.
• Test and Measurement Instruments: Precision instruments demand a display that can clearly render fine graphical data and numerical readouts. The high contrast ratio and stable performance of the TM080RDHG30 ensure that engineers and technicians can trust the data they see.
• Transportation & Marine Displays: From navigation systems in a ship's bridge to control panels in a locomotive, this industrial LCD module's wide temperature range and robust backlight provide excellent readability in fluctuating light and temperature conditions.

To find the right display for your specific system, explore our full range of industrial LCDs.

Key Technical Specifications: Tianma TM080RDHG30

The following table outlines the critical performance metrics. For complete details, please refer to the official datasheet.

Frequently Asked Questions (FAQ)

• What is the typical backlight lifetime for the TM080RDHG30?The WLED backlight system is rated for a 50,000-hour lifetime to half-brightness. This long operational life is critical for industrial and medical applications where continuous operation and low maintenance are essential, significantly reducing the total cost of ownership.

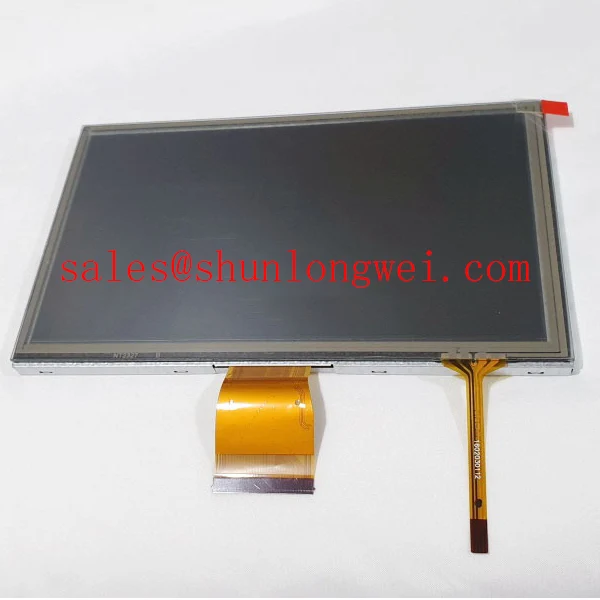

• Can the Tianma TM080RDHG30 be supplied with a touch panel?Yes, this display is frequently integrated with both resistive and projected capacitive (PCAP) touch overlays. A factory-bonded touch solution ensures optimal optical performance and durability, eliminating air gaps that can cause internal reflections and condensation.
• How does the LVDS interface benefit my design?The Low-Voltage Differential Signaling (LVDS) interface is an industry standard known for its high speed and excellent noise immunity. This simplifies the electrical integration into your host system, reduces potential EMI issues, and allows for longer cable runs between the controller board and the display compared to parallel TTL interfaces.

For detailed integration support or to discuss your project's unique requirements, please do not hesitate to contact our display specialists for a personalized consultation.
