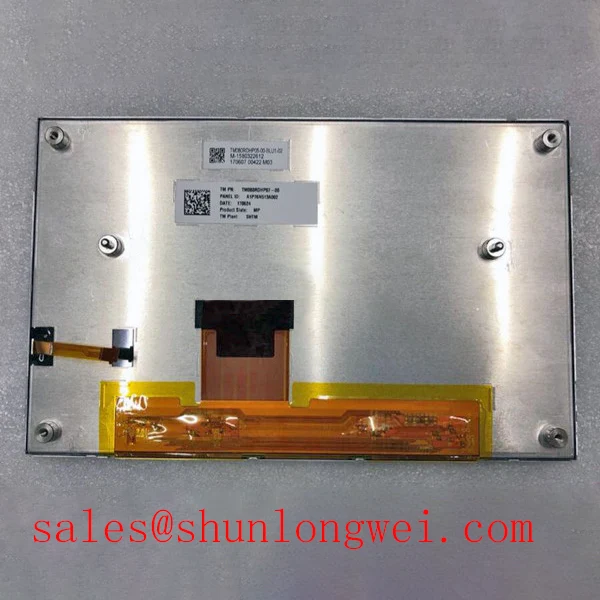

#Tianma, #TM080RDHP07, #LCD_Display, #LCD, TM080RDHP07 Tianma 8 inch LCM 800×480 600 1000:1 88/88/88/88 16.7M WLED TTL
Diagonal Size: 8.0 inches.
Panel Type: a-Si TFT-LCD (Amorphous Silicon Thin-Film Transistor Liquid Crystal Display), LCM (Liquid Crystal Module).
Resolution: 800 (RGB)×480 pixels, WVGA (Wide Video Graphics Array), with a pixel format of RGB Vertical Stripe.
Active Area: 174(W)×104.4(H) mm.
Bezel Opening: 177(W)×107.4(H) mm.
Outline Dimensions: 190.4(H)×120.7(V)×16.1(D) mm.
Treatment: Antiglare.
Luminance: 600 cd/m² (Typical).
Contrast Ratio: 1000:1 (Typical).
View Direction: Symmetry.
Response Time: 50 milliseconds (Maximum) for Tr (Rise Time) + Td (Decay Time).
Viewing Angle: 88/88/88/88 (Typical) for left, right, up, and down directions with a minimum contrast ratio of 10.
Operating Mode: SFT (Super Fine TFT), Normally Black, Transmissive.
Support Color: 16.7 million colors (16.7M) with 71% NTSC color gamut coverage.
Light Source: WLED (White Light Emitting Diode) [8S2P] with a lifespan of 20,000 hours, and it does not require a separate driver.
Weight: The weight is not specified (TBD - To Be Determined).
Designed For: Automotive display applications.
Frame Rate:
60Hz
120Hz (with embedded MEMC Circuit for 60Hz input)
120Hz + 120Hz (combination of 120Hz Panel and 120Hz Backlight)
240Hz (with embedded MEMC Circuit for 60Hz input)
Touch Panel: This panel does not have a built-in touch panel.
Interface Type: Parallel RGB with 1 channel and 8-bit color depth, using a 60-pin FPC (Flexible Printed Circuit) connector.
Power Supply:
VCC: 3.3V (Typical)
VDDP: 6.0V (Typical)
VDDN: -6.0V (Typical)
VGH: 17V (Typical)
VGL: -8.0V (Typical)
Operating Environment:
Operating Temperature: -30°C to 85°C
Storage Temperature: -40°C to 95°C
Vibration Level: 3.0G (29.4 m/s²)
