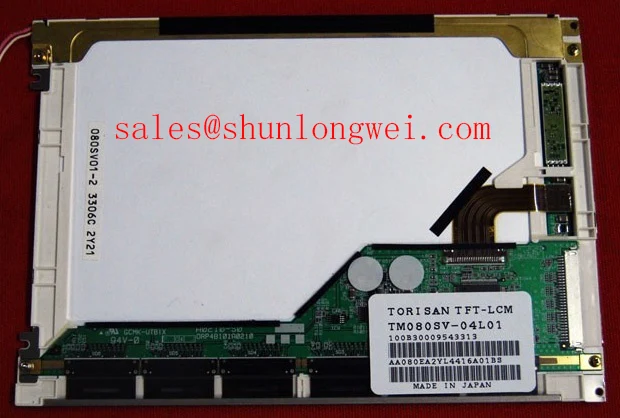

TORISAN 8.0-inch TFT-LCD display panel with the model number P/NTM080SV-04L01:
Diagonal Size: 8.0 inches
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 800(RGB)×600 pixels, SVGA
Pixel Format: RGB Vertical Stripe
Active Area: 163.2(W)×122.4(H) mm
Bezel Opening: 167.2(W)×126.4(H) mm
Outline Size: 201.4(W)×140.3(H) mm
Surface: Antiglare
Brightness: 150 cd/m² (Typical)
Contrast Ratio: 250:1 (Typical)
Viewing Angle: 40/40/30/10 (Minimum) - Left/Right/Up/Down (CR≥10)
Display Mode: TN (Twisted Nematic), Normally White, Transmissive
Response Time: 35 ms (Typical) (Tr) / 15 ms (Typical) (Td)
Display Colors: 262K (52% NTSC)
Lamp Type: 1 piece CCFL (Cold Cathode Fluorescent Lamp), 20,000 hours, Without Driver
Frequency: Not specified
Touch Screen: Without
Panel Weight: 190g (Typical)
Application: Digital Photo Frame
Signal Interface: Parallel RGB (1 channel, 6-bit), 30 pins Connector
Input Voltage: 3.3V (Typical)
Environment: Operating Temperature: 0 ~ 50°C; Storage Temperature: -20 ~ 60°C
