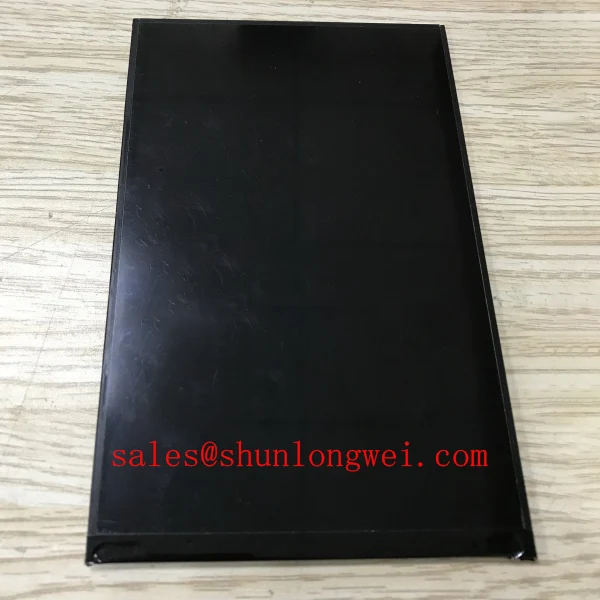

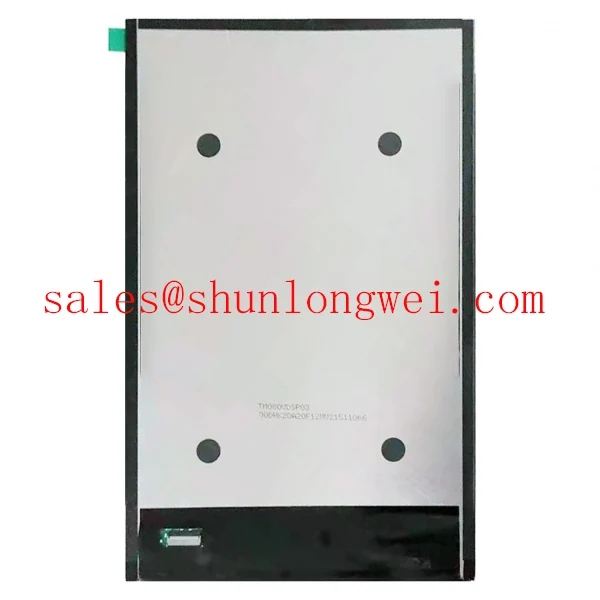

- Brand: TIANMA
- Model: P/NTM080VDSP03
- Diagonal Size: 8.0 inches
- Panel Type: a-Si TFT-LCD, LCM (a-Si stands for amorphous silicon)
- Resolution: 1200 (RGB) × 1920, WUXGA
- Pixel Format: RGB Vertical Stripe
- Active Area: 107.64 (W) × 172.224 (H) mm
- Bezel Opening: Not specified
- Outline Size: 114.58 (H) × 184.09 (V) × 3.95 (D) mm
- Treatment: Hard coating
- Brightness: 390 cd/m² (Typical)
- Contrast Ratio: 800:1 (Typical) (TM)
- Viewing Angle: 85/85/85/85 (Typical) (CR≥10) Left / Right / Up / Down
- Display Mode: SFT (Super Fine TFT), Normally Black, Transmissive
- Support Color: 16.7M, 60% NTSC
- Lamp Type: WLED [7S3P]
- Weight: To be determined (TBD)
- Designed For: Pad & Tablet
- Frame Rate: 60Hz (normal refresh rate)
- Refresh Rates with Embedded MEMC (Motion Estimation, Motion Compensation) Circuit:
- 120Hz (60Hz Input): Embedded MEMC Circuit
- 120Hz+120Hz: 120Hz Panel+120Hz Backlight
- 240Hz (60HZ Input): Embedded MEMC Circuit
- Touch Panel: Without
- Power Supply: 3.3V (Typical) (VCI)
- Environment:
- Operating Temperature: -10 ~ 60 °C
- Storage Temperature: -15 ~ 70 °C
This 8.0-inch TIANMA LCD panel offers a high-resolution WUXGA display with a pixel format of RGB Vertical Stripe. It features a typical brightness of 390 cd/m², wide viewing angles, and supports 16.7 million colors with 60% NTSC coverage. The panel has a slim and lightweight design, making it suitable for pad and tablet applications. It supports a standard 60Hz refresh rate and offers the option of higher refresh rates (120Hz and 240Hz) with embedded MEMC circuitry. The panel does not include a touch screen. It operates at a power supply voltage of 3.3V (VCI). The operating temperature range is -10 ~ 60 °C, with a storage temperature range of -15 ~ 70 °C. The weight is not specified (TBD).
