Content last revised on November 15, 2023

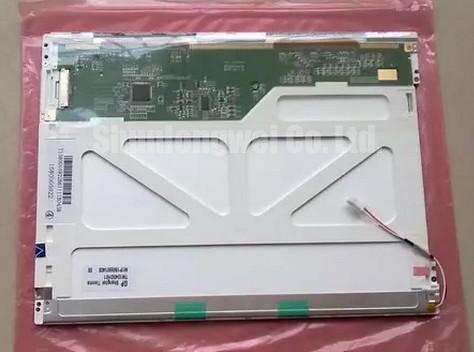

- Brand: Tianma
- Model: P/NTM104SBH01
- Diagonal Size: 10.4 inch
- Panel Type: a-Si TFT-LCD, LCM
- Resolution: 800(RGB)×600, SVGA, 96PPI Pixel Format RGB Vertical Stripe
- Active Area: 211.2(W)×158.4(H) mm
- Bezel Opening: 214.2(W)×161.4(H) mm
- Outline Dimensions: 236 × 176.9 × 7.6 (H×V×D) mm
- Treatment: Antiglare, Hard coating (3H)
- Luminance: 300 cd/m² (Typ.)
- Contrast Ratio: 400:1 (Typ.) (TM)
- Viewing Angle: 70/70/60/70 (Typ.)(CR≥10) Left / Right / Up / Down
- Response Time: 10/15 (Typ.)(Tr/Td) ms
- Good View at: 12 o'clock
- Work Mode: TN, Normally White, Transmissive
- Color Depth: 262K 50% NTSC
- Backlight: 6S6P WLED, 20K hours, No Driver
- Mass: 412g
- Used for: Industrial
- Refresh Rate: 60Hz
- Touchscreen: 4-wire Resistive Touch
- Signal Type: LVDS (1 ch, 6-bit), 20 pins Connector
- Voltage Supply: 3.3V (Typ.)
- Max. Ratings: Storage Temp.: -30 ~ 80 °C, Operating Temp.: -20 ~ 70 °C
