Content last revised on November 25, 2024
Manufacturer Hitachi

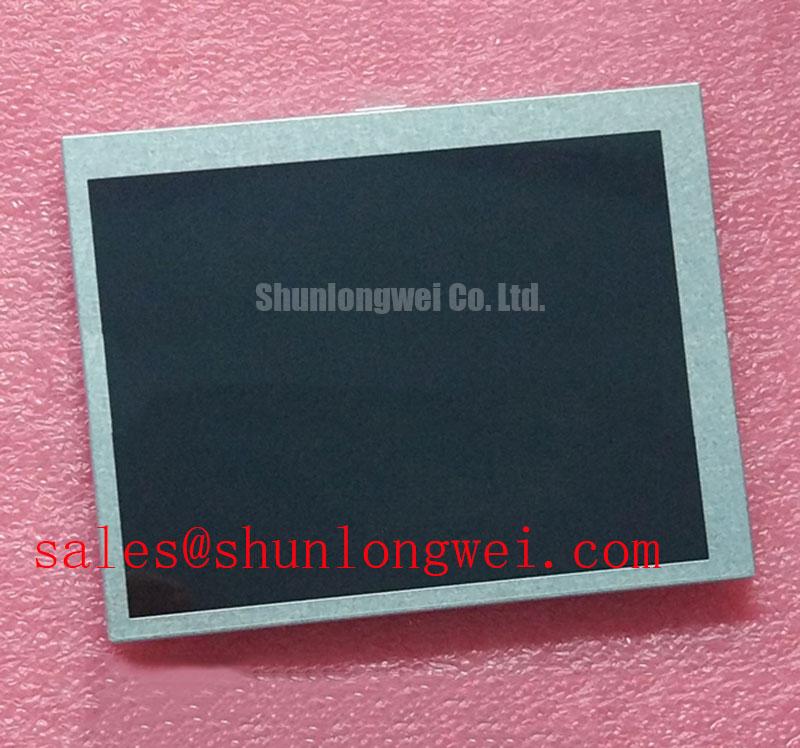

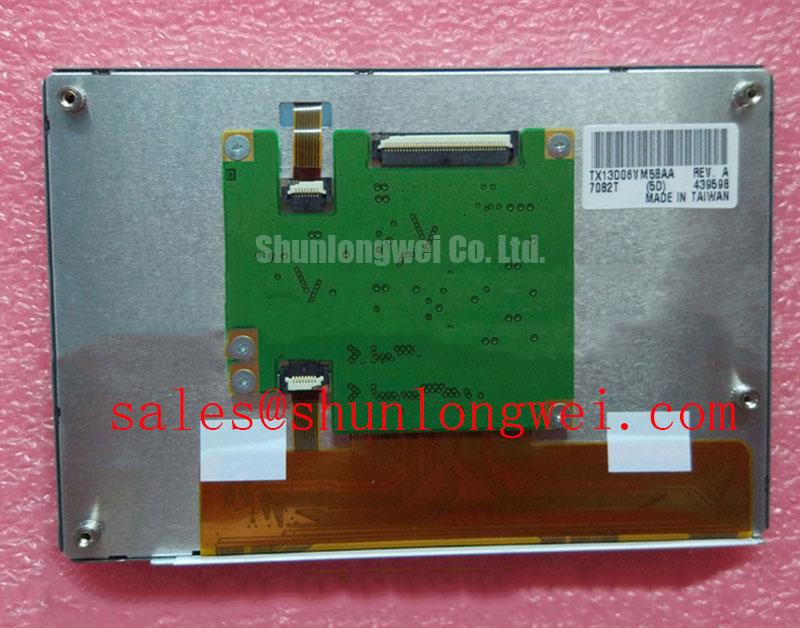

Model Name TX13D06VM5BAA
Screen Size 5.0 inch
Screen Type LCM, a-Si TFT-LCD
Pixel Number 800(RGB)×480 (WVGA) 188PPI
Arrangement RGB Vertical Stripe
Active Area(mm) 108 × 64.8 (H×V)
Outline(mm) 120 × 80.7 × 8.5 (H×V×D)
Bezel Area(mm) 110.0 × 66.8 (H×V)
Treatment Antiglare
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down
Response 500 (Typ.)(Tr+Td) ms
Work Mode TN, Normally White, Transmissive
Color Depth 262K 50% NTSC
Backlight 3S6P WLED , 50K hours , No Driver
Mass 75.0g (Typ.)
Used for Industrial Outdoor High Brightness Automotive Display
Refresh Rate60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type CMOS (1 ch, 6-bit) , Connector 40 pins
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp: -30 ~ 80 °C Operating Temp: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²)
