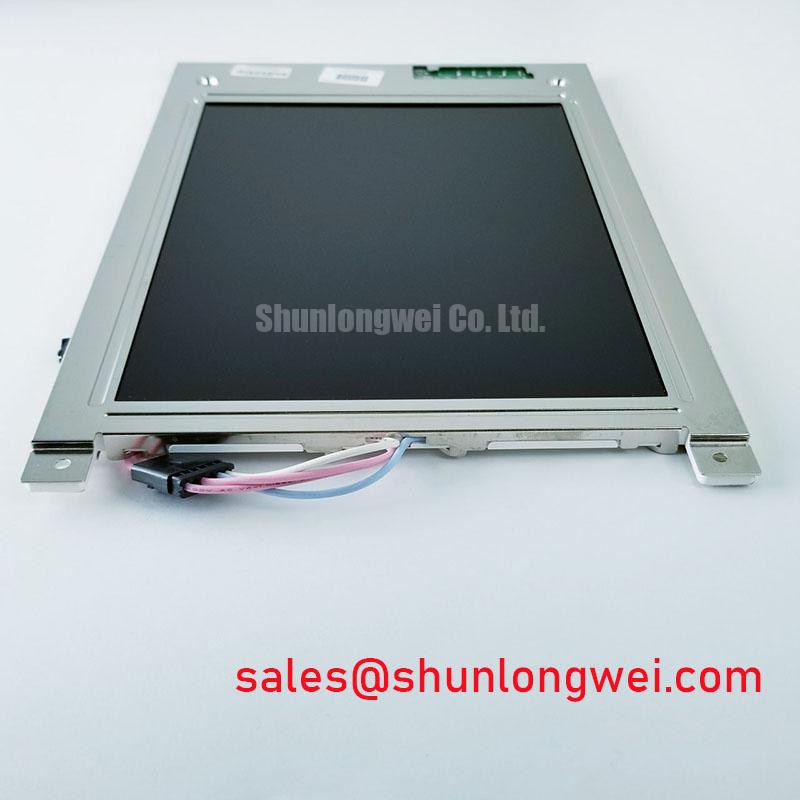

Name: TX17D01VM5BAA
Brand: Hitachi
SKU: TX17D01VM5BAA
Availability: InStock

Content last revised on August 26, 2023

Brand: KOE

Model: P/NTX17D01VM5BAA

Diagonal Size: 6.5 inches

Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)

Resolution: 640(RGB)×480 pixels (VGA)

Pixel Format: RGB Vertical Stripe

Active Area: 132.48(W)×99.36(H) mm

Bezel Opening: 135.9(W)×102.8(H) mm

Outline Size: 153(W)×118(H)×9.6(D) mm

Surface: Not specified

Brightness: 800 cd/m² (Typical)

Contrast Ratio: 350:1 (Typical)

Viewing Angle: 80°/80°/80°/80° (Typical) (Left / Right / Up / Down)

Display Mode: TN (Twisted Nematic), Normally White, Transmissive (belongs to IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich, and VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA)

Best View on: Not specified

Response Time: 30 ms (Typical) (Tr+Td)

Display Colors: 262K (50% NTSC coverage)

Lamp Type: 3S4P WLED (White Light Emitting Diode), 70K hours, With LED Driver

Frequency: 60Hz

120Hz (60Hz Input): Embedded MEMC Circuit
120Hz+120Hz: 120Hz Panel + 120Hz Backlight
240Hz (60Hz Input): Embedded MEMC Circuit

Touch Screen: Without

Panel Weight: 190g

Application: Industrial

Signal Interface: CMOS (Complementary Metal-Oxide-Semiconductor), 1 channel, 6-bit, 31 pins Connector

Input Voltage: 3.3V (Typical)

Operating Environment:

Operating Temperature: -20°C to 70°C
Storage Temperature: -30°C to 80°C
Vibration Level: 2.0G (19.6 m/s²)
