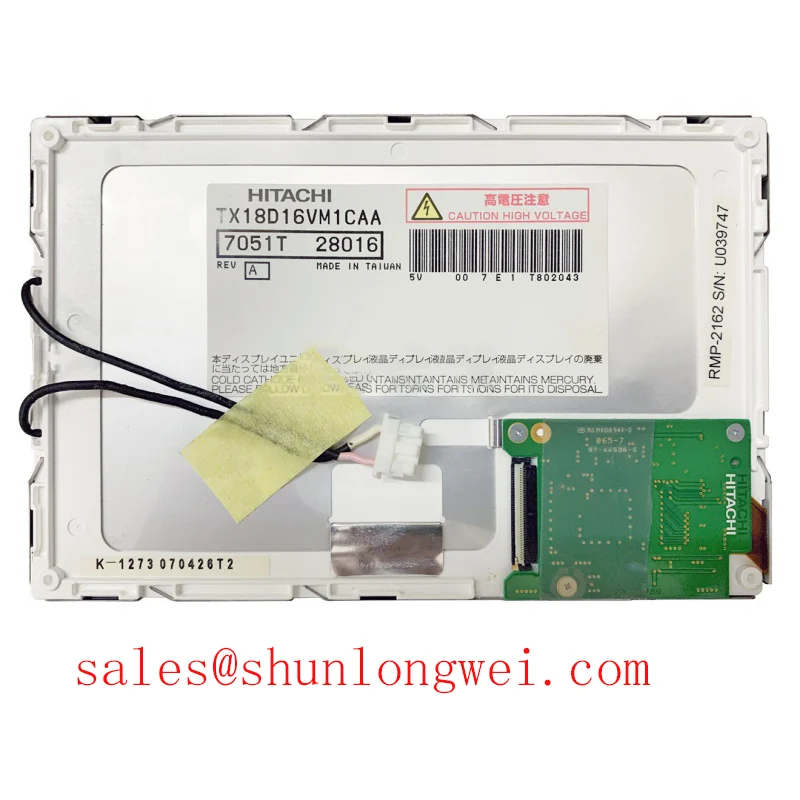

Hitachi TX18D16VM1CAA LCD Display

Diagonal Size: 7.0 inches

Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)

Resolution: 800 (RGB) × 480 pixels, WVGA

Pixel Format: RGB Vertical Stripe

Active Area: 152.4 mm (width) × 91.44 mm (height)

Bezel Opening: 156.4 mm (width) × 95.44 mm (height)

Outline Dimensions: 165 mm (height) × 106 mm (width) × 10.5 mm (depth)

Treatment: Antiglare (reduces glare on the screen)

Luminance: 350 cd/m² (Typical)

Contrast Ratio: 200:1 (Typical)

View Direction: 12 o'clock

Response Time: 20 ms (Typical) for Tr (Rise time) and 10 ms (Typical) for Td (Fall time)

Viewing Angle: 50 degrees in all directions (Minimum) with a contrast ratio of at least 10

Operating Mode: TN (Twisted Nematic), Normally White, Transmissive

Support Color: 262K colors, 60% NTSC color gamut

Light Source: CCFL (Cold Cathode Fluorescent Lamp), 1 piece, without a driver

Weight: 170 grams (Typical)

Designed For: Industrial use

Frame Rate: 60Hz (Panelook copyright, copy is strictly prohibited) 120Hz (60Hz Input): Embedded MEMC (Motion Estimation/Motion Compensation) Circuit 120Hz + 120Hz: 120Hz Panel + 120Hz Backlight 240Hz (60Hz Input): Embedded MEMC Circuit

Touch Panel: Without a touch panel

Interface Type: CMOS (1 channel, 6-bit), 40 pins Connector

Power Supply: 3.3V (Typical) for VDD (Voltage Drain to Drain)

Operating Environment:

• • Operating Temperature: -20°C to 70°C
  • Storage Temperature: -30°C to 85°C
  • Vibration Level: 2.0G (19.6 m/s²)

This display module is designed for industrial applications and has a 7-inch screen with WVGA resolution, suitable for various display purposes. It has a relatively low contrast ratio, a TN panel, and supports a 60Hz frame rate, but it also includes an embedded MEMC circuit for higher frame rate options. It operates in a wide temperature range and is built to withstand industrial environments.
