Content last revised on September 18, 2023
Brand: KOE

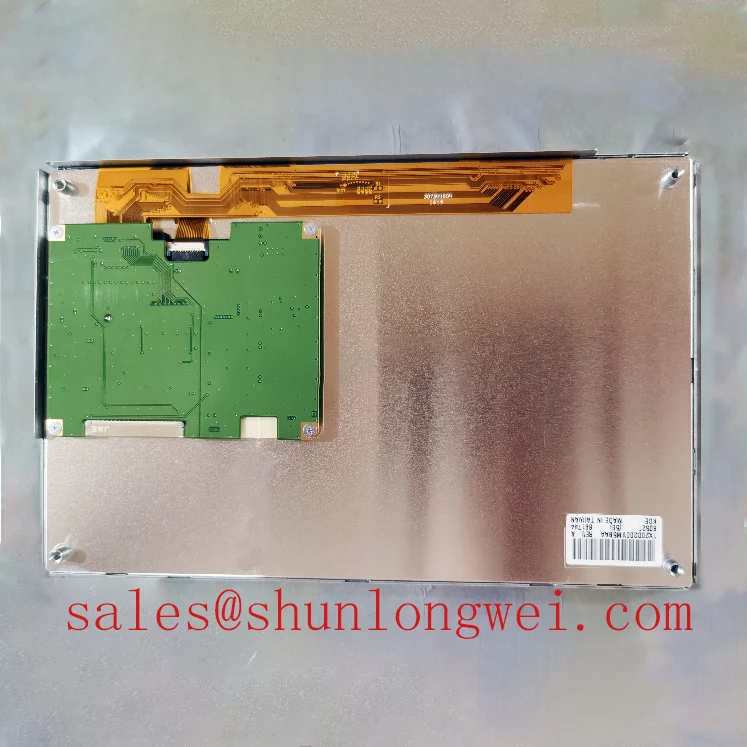

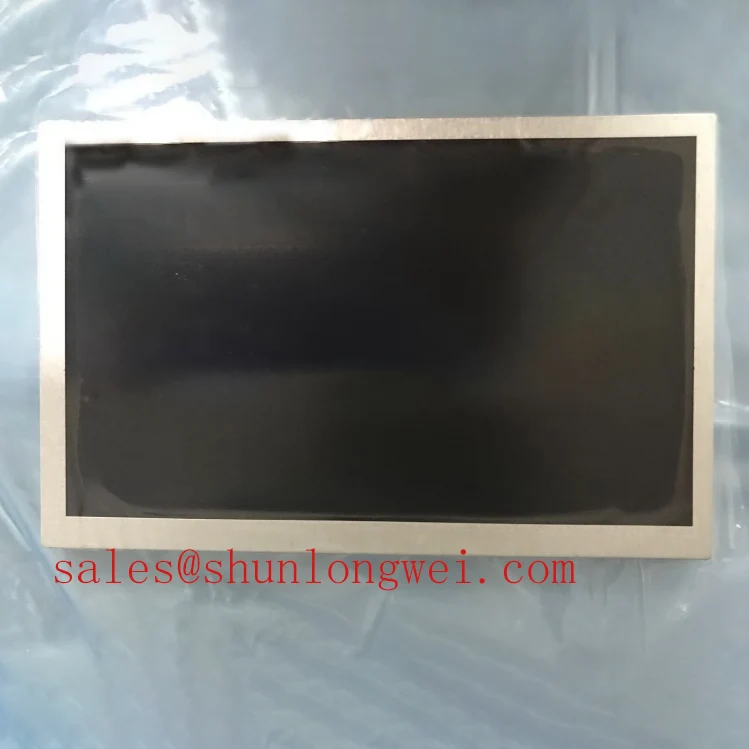

Model: P/NTX20D200VM5BAA
Diagonal Size: 8.0 inches
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800 (RGB)×480, WVGA (116 PPI)
Pixel Format: RGB Vertical Stripe
Active Area: 174(W)×104.4(H) mm
Bezel Opening: 177.0(W)×107.4(H) mm
Outline Dimensions: 189(W)×122(H) mm
Luminance: 1000 cd/m² (Typical)
Contrast Ratio: 400:1 (Typical)
View Direction: -
Response Time: 20 ms (Typical) (Tr+Td)
Viewing Angle: 80/80/80/80 (Typical) (CR≥10) Left / Right / Up / Down
Operating Mode: TN (Twisted Nematic), Normally White, Transmissive
Support Color: 262K (60% NTSC)
Light Source: WLED (White Light Emitting Diode), 70,000 hours, with LED Driver
Weight: 220 grams
Designed For: Industrial Outdoor High Brightness
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: LVDS (1 channel, 6-bit), 20 pins Connector
Power Supply: 3.3V (Typical)
Operating Temperature: -30 ~ 80 °C
Storage Temperature: -30 ~ 80 °C
Vibration Level: 2.0G (19.6 m/s²)
