Content last revised on September 18, 2023

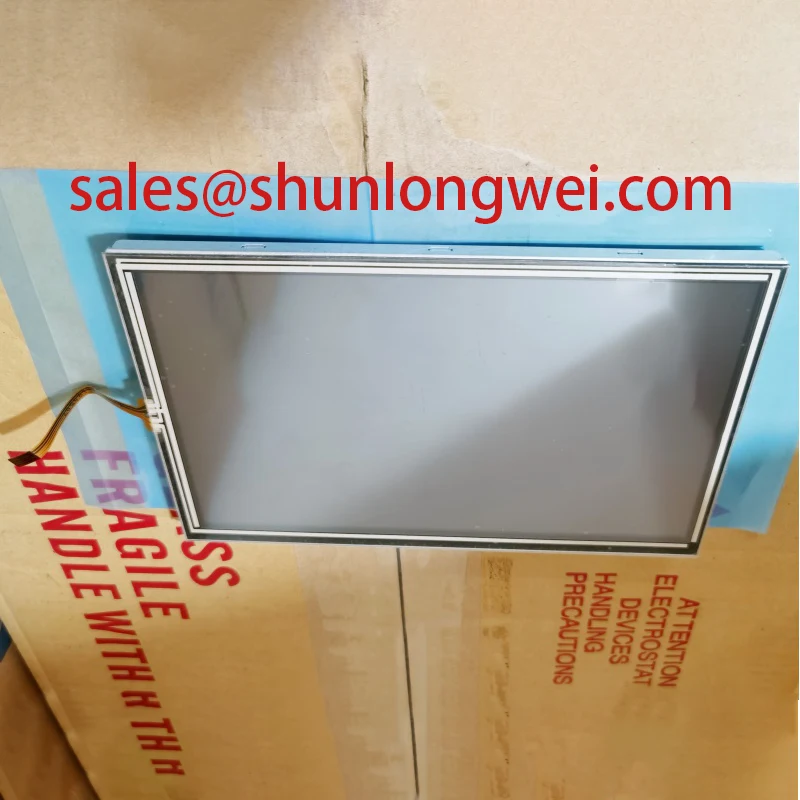

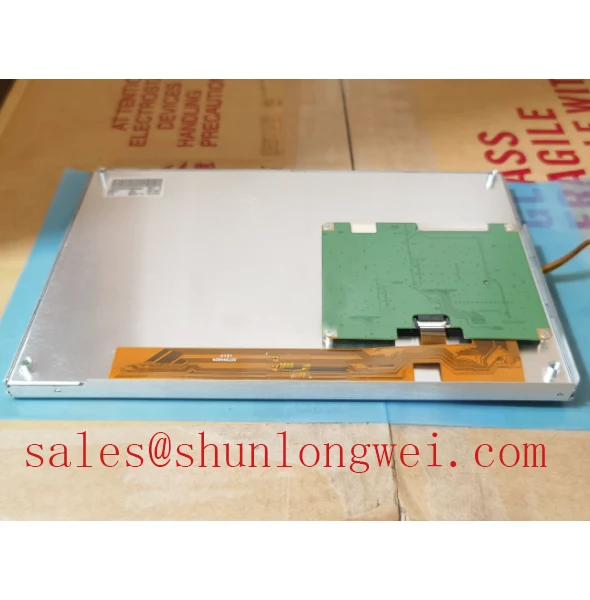

P/NTX20D200VM5BPA:
Diagonal Size: 8.0 inches
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 800(RGB)×480 pixels (WVGA), with a pixel format of RGB Vertical Stripe
Active Area: 174(W)×104.4(H) mm
Outline Size: 189 × 122 × 12.2 mm (H×V×D)
Treatment: Antiglare, Hard coating (3H)
Luminance: 800 cd/m² (Typical)
Contrast Ratio: 400:1 (Typical)
Viewing Angle: 80/80/80/80 (Typical) (CR≥10), indicating good viewing angles from left, right, up, and down.
Response Time: 20 ms (Typical) for Tr+Td (Rise time + Fall time)
Color Depth: 262,000 colors (60% NTSC)
Backlight: WLED (White Light Emitting Diode) with a lifespan of 70,000 hours and equipped with an LED driver.
Mass: 290 grams
Used for: Industrial Outdoor High Brightness applications
Refresh Rate: 60Hz (standard), but it also supports higher refresh rates like 120Hz (with 60Hz input and embedded MEMC circuit), 120Hz+120Hz (using a 120Hz panel and backlight), and 240Hz (with 60Hz input and embedded MEMC circuit).
Touchscreen: 4-wire Resistive Touch with F/G (Film/Glass) structure.
Signal Type: LVDS (Low Voltage Differential Signaling) with 1 channel and 6-bit data, using a 20-pin connector.
Voltage Supply: 3.3V (Typical)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C
Vibration Level: 2.0G (19.6 m/s²)
