Content last revised on September 18, 2023

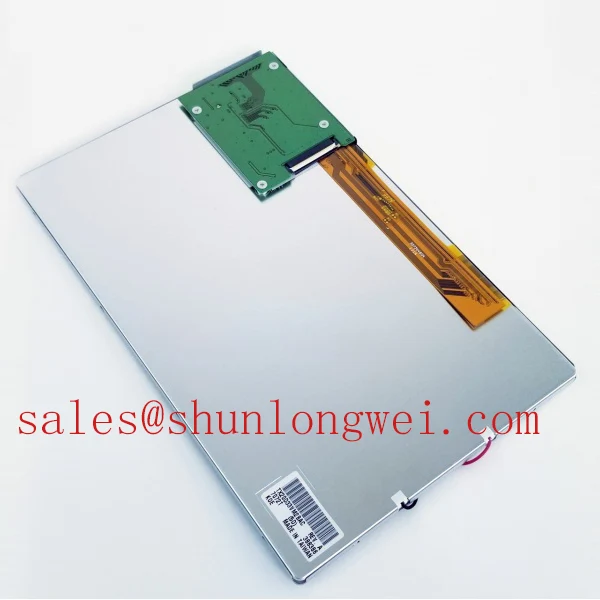

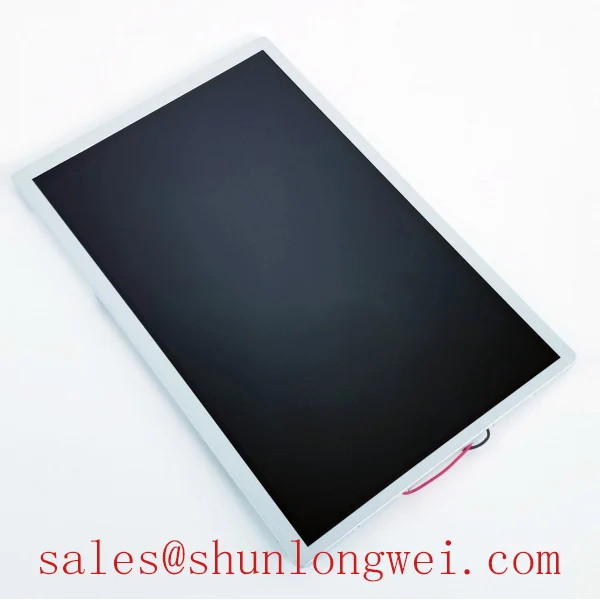

Brand: KOE
Model: P/NTX20D33VM2BAC
Diagonal Size: 8.0 inches
Panel Type: a-Si TFT-LCD, LCM (Liquid Crystal Module)
Resolution: 800 (RGB) × 480, WVGA
Pixel Format: RGB Vertical Stripe
Active Area: 174 (W) × 104.4 (H) mm
Bezel Opening: 178.0 (W) × 108.4 (H) mm
Outline Dimensions: 189 (H) × 120 (V) × 8 (D) mm
Treatment: Not specified
Luminance: Not specified
Contrast Ratio: 600:1 (Typical)
View Direction: 6 o'clock
Response Time: 20 ms (Typical) - Tr+Td represents the total response time.
Viewing Angle: 80/80/60/80 (Typical) - This represents the viewing angles in degrees (Left, Right, Up, Down) with a minimum contrast ratio of 10.
Operating Mode: TN (Twisted Nematic), Normally White, Transmissive
Support Color: 262K
Light Source: WLED (White Light Emitting Diodes), 50K hours lifespan, Without Driver
Weight: 160g
Designed For: Industrial use
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: CMOS (Complementary Metal-Oxide-Semiconductor), 1 channel, 6-bit, 40 pins Connector
Power Supply: 3.3V (Typical)
Environment:
Operating Temperature: -30 ~ 80°C
Storage Temperature: -30 ~ 80°C
Vibration Level: 2.0G (19.6 m/s²)
