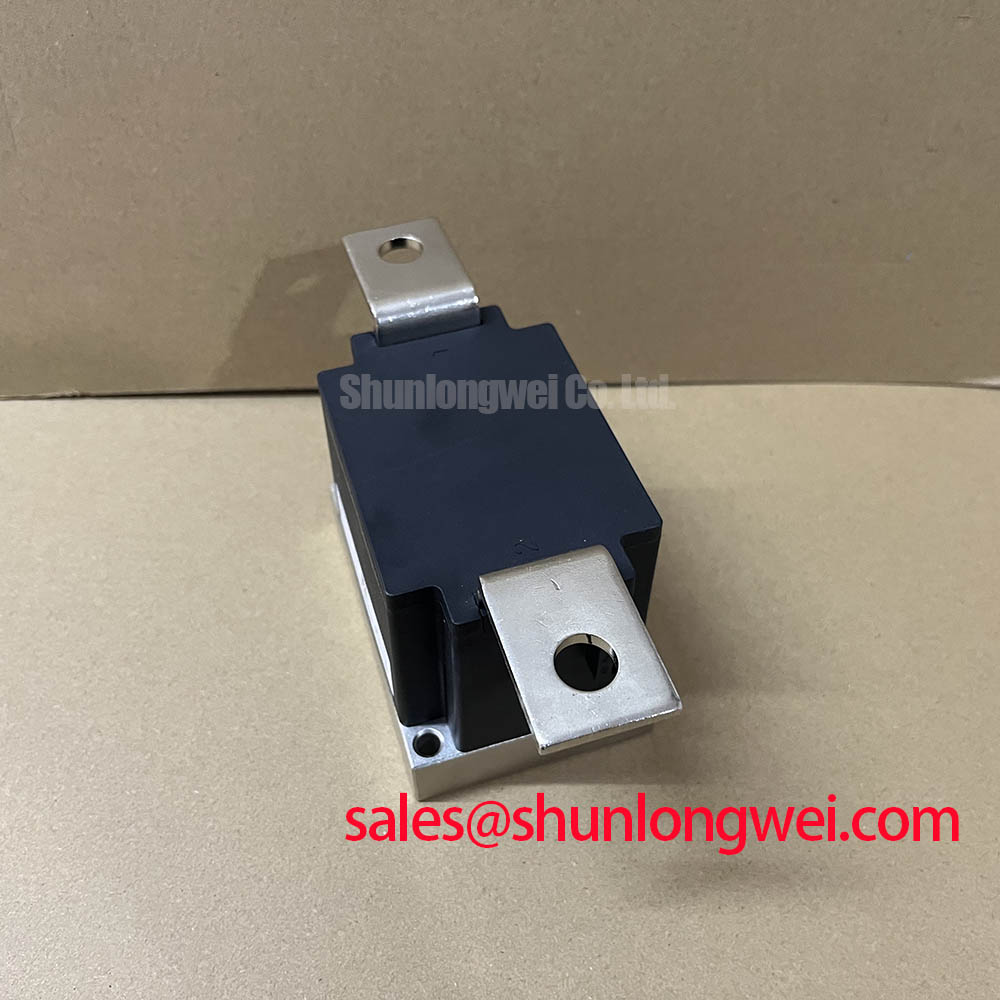

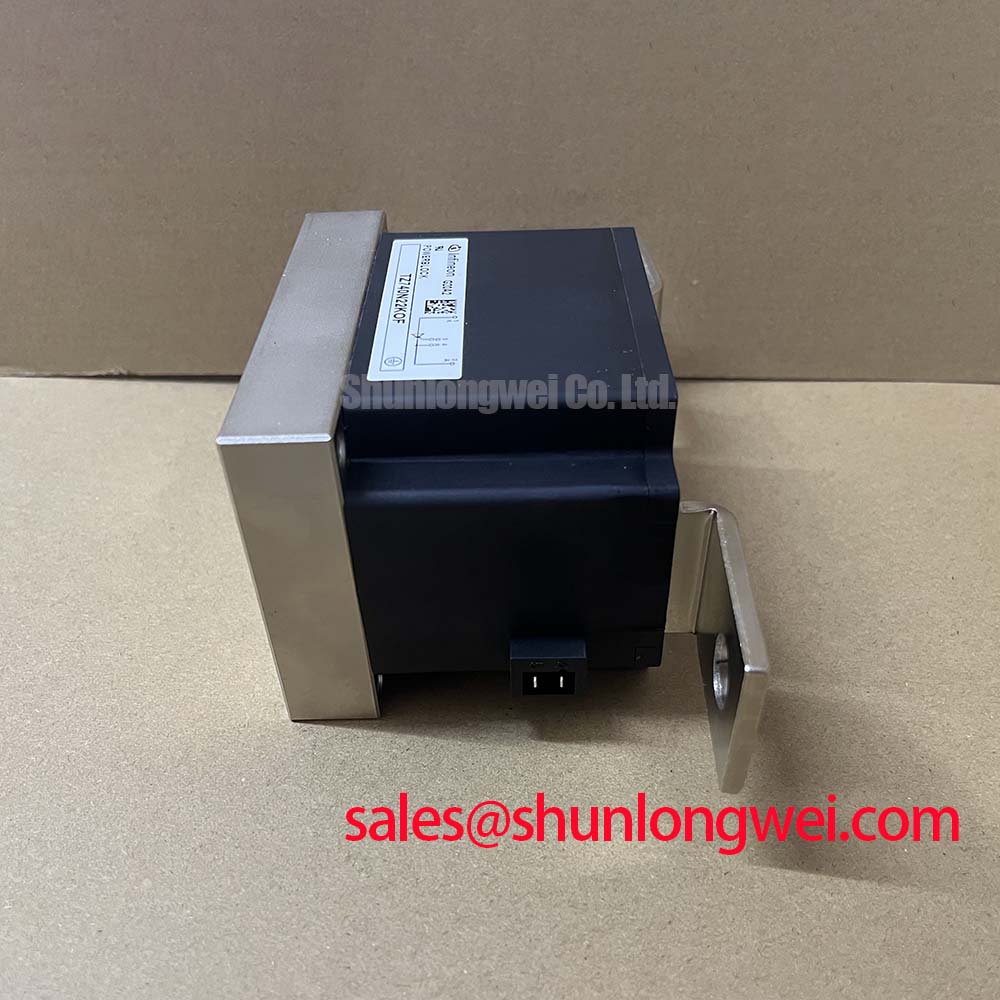

TZ740N22KOF: Thyristor Module for Extreme Temperatures
Operational Certainty from -40°C to 125°C
The increasing decentralization of industrial automation and renewable energy systems places power electronics in environments where temperature is uncontrolled and unpredictable. For design engineers, this poses a significant challenge: how do you guarantee reliable power control when equipment is subjected to extreme hot and cold cycles? The Infineon TZ740N22KOF Thyristor/Diode Module directly addresses this by providing unwavering performance across an exceptionally wide operating junction temperature range of -40°C to 125°C. This industrial-grade module ensures consistent, predictable behavior whether deployed in a freezing outdoor substation or a high-temperature metal processing facility.
Strategic Advantage in Unpredictable Thermal Environments
The ability to operate reliably across a 165°C spectrum provides a distinct strategic advantage. For systems installed in cold climates, the TZ740N22KOF eliminates the need for costly and complex pre-heating circuits, reducing bill-of-materials (BOM) cost and a potential point of failure. Conversely, in high-ambient-temperature applications, its robust thermal design, based on proven pressure contact technology, ensures a longer operational lifetime and higher reliability compared to conventional soldered modules. This focus on environmental resilience makes it a forward-looking choice for assets that require maximum uptime and a lower total cost of ownership.
Selecting for Resilience: The TZ740N22KOF vs. Conventional Modules
When selecting a phase control module, engineers often focus on voltage and current ratings. However, for applications in demanding environments, thermal cycling capability is a more critical differentiator. Standard modules with soldered connections can be susceptible to bond wire lift-off and solder fatigue over thousands of temperature cycles. The Infineon TZ740N22KOF utilizes pressure contact technology, which creates a robust, solder-free interface between the silicon chip and the contacts. This design is inherently more resistant to mechanical stress induced by thermal expansion and contraction, offering superior longevity in applications like soft starters and motor drives that experience frequent load changes. A similar high-reliability component for rectification stages is the SKKD162/16 diode module, which complements the control capabilities of the TZ740N22KOF.
Performance Metrics Across the Operational Temperature Spectrum
Understanding the key specifications of the TZ740N22KOF reveals how its design translates to dependable performance in the field. This table highlights parameters that are crucial for engineers designing systems that must operate without compromise in extreme conditions.
| Parameter | Value | Engineering Insight |
|---|---|---|
| Operating Junction Temperature (Tvj op) | -40°C to 125°C | Provides a massive operational window, guaranteeing startup in deep cold and stability under heavy thermal load, reducing the need for external environmental conditioning. |
| Repetitive Peak Voltage (VDRM, VRRM) | 2200 V | Offers a substantial safety margin for applications on 690V AC industrial lines, ensuring high resilience against voltage transients and improving system-level reliability. |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.040 K/W | This value represents the efficiency of heat transfer from the silicon to the heatsink. A low thermal resistance is like a wide-open drain pipe for heat, allowing it to be evacuated quickly and keeping the junction cool, which is essential for long-term device health. For more on this critical topic, see our guide on unlocking thermal performance. |
| Mounting Force (Fm) | 18 ±3 kN | Precise mounting force is critical for pressure contact modules. This specification ensures that the optimal thermal and electrical connection is made, maximizing reliability over the product's entire lifecycle. |
Where Environmental Extremes Are the Norm: TZ740N22KOF Applications
The robust construction and wide thermal window of the Infineon TZ740N22KOF make it an ideal solution for a range of high-power control applications where reliability is paramount.
- Industrial Motor Drives and Soft Starters: In industries such as mining, water treatment, and manufacturing, motor starters are often located in unconditioned cabinets. The module's ability to withstand both cold starts and high operational heat ensures dependable motor control and reduces system downtime.
- Grid-Tied Converters: For renewable energy sources like wind turbines or solar farms, power conversion equipment can be exposed to significant daily and seasonal temperature swings. The TZ740N22KOF provides the necessary durability for long-term grid interface stability.
- High-Power Rectifiers: In applications like DC power supplies for electrochemical processes, consistent and controlled power is critical. This module provides the stable front-end rectification needed for such demanding loads. For systems requiring a different current class, the related TT215N22KOF12M1 offers a different performance profile within the same reliable technology family.
The Engineering Behind Thermal Stability: Pressure Contact Technology
At the core of the TZ740N22KOF module's environmental toughness is its use of pressure contact technology. Unlike traditional power modules that rely on soldered connections, this design establishes electrical and thermal paths through precisely controlled mechanical force. This approach fundamentally eliminates the primary failure mechanism in high-power modules: solder fatigue. By avoiding solder, the module gains an exceptional ability to withstand repetitive thermal cycles without degradation. This ensures a significantly longer service life and predictable performance, which is a critical factor in calculating the long-term reliability of any power conversion system.
Field-Proven Resilience: Deploying the TZ740N22KOF
System integrators deploying the TZ740N22KOF in the field benefit from its standardized housing, which simplifies mechanical design and heatsink integration. The key to unlocking its full reliability potential lies in adhering to the specified mounting force. Using a calibrated mounting press and ensuring a clean, flat heatsink surface guarantees the low thermal resistance specified in the datasheet. This disciplined assembly process translates directly into a power stage that is built to endure years of thermal stress, providing a tangible return on investment through reduced maintenance and enhanced system availability.
A Design Perspective for Future-Proof Systems
Integrating the Infineon TZ740N22KOF into a new design is more than a component choice; it's a strategic decision to build in resilience from the ground up. For engineers, this module opens up possibilities for creating more compact, cost-effective, and reliable systems. By reducing the dependency on auxiliary heating or oversized cooling systems, designers can simplify their thermal management architecture. This allows for a greater focus on optimizing the core power conversion topology, confident that the heart of the system is fortified against the most challenging environmental conditions it will face over its operational life.
