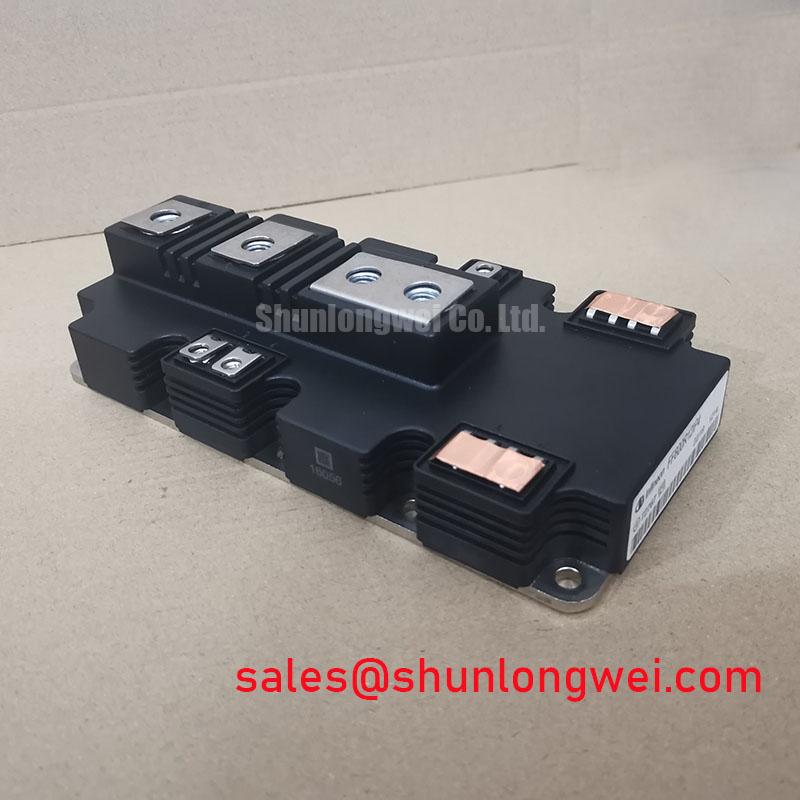

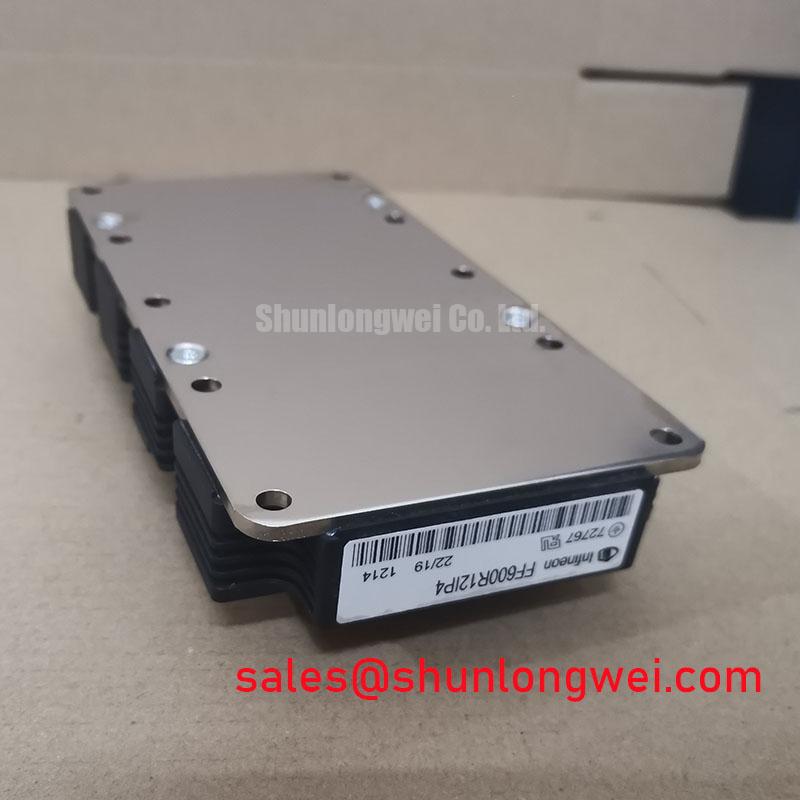

FF600R12IP4: A Deep Dive into the 1200V, 600A PrimePACK™ 2 IGBT Module
An Engineer's Introduction to the FF600R12IP4
The Infineon FF600R12IP4 is a high-power dual IGBT module designed for demanding power conversion systems, delivering a robust balance of thermal performance, electrical efficiency, and operational reliability. Engineered with Infineon's proven TRENCHSTOP™ IGBT4 technology, this module provides a dependable foundation for high-stress applications. Its key specifications are: 1200V VCES | 600A IC nom | Tvj op 150°C. This combination delivers two critical engineering benefits: enhanced thermal headroom and minimized conduction losses. The design directly addresses the challenge of achieving high power density in systems like wind turbine inverters and high-power motor drives, where thermal management is a primary design constraint. For megawatt-scale wind inverters requiring proven reliability, the FF600R12IP4's robust thermal design is the optimal foundation.
Application Scenarios & Value
System-Level Benefits in Renewable Energy and High-Power Drives
For systems engineers designing high-power inverters, the FF600R12IP4 module offers a clear pathway to enhanced power density and system reliability. Its excellent thermal characteristics, particularly the maximum operating junction temperature of 150°C, provide critical design margin. This is not just a higher temperature rating; it translates directly into the ability to use smaller heatsinks or operate at higher output power in elevated ambient temperatures, a common scenario in air-cooled renewable energy converters. The low collector-emitter saturation voltage (VCEsat) of 1.90V (typical at Tvj=150°C) is fundamental to minimizing conduction losses, which is the dominant loss factor in high-current, medium-frequency applications like industrial motor drives. By reducing the heat generated within the module, designers can improve the overall efficiency of their Variable Frequency Drive (VFD), leading to lower operational costs and enhanced system longevity. For systems demanding even greater current capacity, the related FF900R12IP4 offers a 900A capability within the same PrimePACK™ family.
Key Parameter Overview
Decoding the Datasheet for Thermal Performance and Efficiency
The performance of the FF600R12IP4 is defined by key parameters that directly influence its behavior in a power conversion circuit. Understanding these specifications is crucial for effective system design and thermal management.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V | Provides the necessary voltage blocking capability for applications connected to 400V to 690V AC lines, ensuring a safe operating margin against DC link voltage transients. |
| Nominal Collector Current (IC nom) | 600 A | Defines the module's continuous current handling capability, making it suitable for inverters in the several hundred kilowatt range. |
| Collector-Emitter Saturation Voltage (VCEsat) @ Tvj=150°C | 1.90 V (typ.) | A low VCEsat directly correlates to lower on-state power loss (P = VCEsat * IC). This is akin to having a lower resistance in a mechanical system, minimizing energy wasted as heat and improving overall system efficiency. |
| Thermal Resistance, Junction to Case (RthJC) per IGBT | ≤ 0.057 K/W | This critical value represents the efficiency of heat transfer from the IGBT chip to the module's baseplate. A lower number indicates superior thermal performance, allowing for cooler chip operation and improved reliability under load. |
| Maximum Operating Junction Temperature (Tvj op) | 150 °C | Offers significant thermal headroom for designers, allowing for higher power density or reliable operation in harsh environmental conditions. |
| Short-Circuit Withstand Time (tSC) | 10 µs | Guarantees the module can survive a direct short-circuit event for a specified duration, allowing the gate drive protection circuitry time to safely shut down the device and prevent catastrophic failure. |
Download the FF600R12IP4 datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
Meeting Megawatt-Scale Demands with Proven IGBT Technology
The FF600R12IP4 is built upon Infineon's TRENCHSTOP™ IGBT4 technology, a mature and widely adopted platform known for its robustness in the field. In industries like renewable energy, particularly wind and solar power generation, long-term reliability and predictable performance are non-negotiable. The adoption of standardized module footprints like the PrimePACK™ allows system designers to create scalable inverter platforms. This means an inverter architecture can be adapted for different power levels—for example, from 500kW to 750kW—simply by changing the module (e.g., moving from the FF600R12IP4 to a higher current model) without a complete redesign of the mechanical layout, bus bars, or gate driver interface. This modularity is a significant strategic advantage, reducing development time and cost for manufacturers of grid-tied inverters and industrial drive systems.
Frequently Asked Engineering Questions on the FF600R12IP4
What is the primary benefit of the PrimePACK™ 2 housing design?
The PrimePACK™ 2 housing is engineered for low internal stray inductance. This is a critical feature that minimizes voltage overshoot during high-speed switching events, reducing stress on the IGBTs and improving the overall reliability and electromagnetic compatibility (EMC) of the inverter system.
How does the positive temperature coefficient of VCEsat aid in paralleling modules?
The VCEsat of the FF600R12IP4 increases with temperature. When paralleling modules, if one module starts to carry more current and heats up, its VCEsat (on-state voltage drop) will rise. This rising "resistance" naturally encourages current to redirect to the cooler, parallel modules, creating a self-balancing effect. This inherent characteristic simplifies the design of high-power converters that require multiple modules to operate in parallel for increased output current.
Is an external freewheeling diode required for this module?
No, the FF600R12IP4 is a half-bridge module that includes co-packed, fast and soft Emitter Controlled diodes optimized for freewheeling functions in inverter circuits. These integrated diodes are specifically matched to the IGBTs for optimal performance during commutation.
What is the function of the integrated NTC thermistor?
The integrated NTC (Negative Temperature Coefficient) thermistor provides a means for real-time temperature monitoring of the module's baseplate. This feedback is essential for the control system to implement over-temperature protection, ensuring the module operates within its Safe Operating Area (SOA) and preventing thermal runaway.
Can this 1200V module be used in an 800V DC system?
Yes, a 1200V IGBT module like the FF600R12IP4 is well-suited for systems with DC link voltages up to approximately 800V-900V. This provides a standard design margin to accommodate voltage overshoots caused by stray inductance during switching, ensuring long-term reliability. For a deeper understanding of module specifications, refer to this guide on decoding IGBT datasheets.
An Engineer's Perspective
From a design engineering standpoint, the FF600R12IP4 represents a workhorse solution for high-power applications. Its value lies not in a single groundbreaking feature, but in the combination of a robust IGBT4 chip, a thermally efficient and low-inductance package, and a comprehensive set of electrical characteristics that are well-understood in the industry. This module provides a reliable, predictable, and scalable building block, enabling engineers to focus on system-level optimization rather than component-level risk mitigation. This makes it a strong candidate for designs where long service life and high availability are paramount. For designers working on next-generation systems, it's also worth investigating newer technologies, such as the module detailed in our FF600R12IP4 deep dive for wind turbines.
