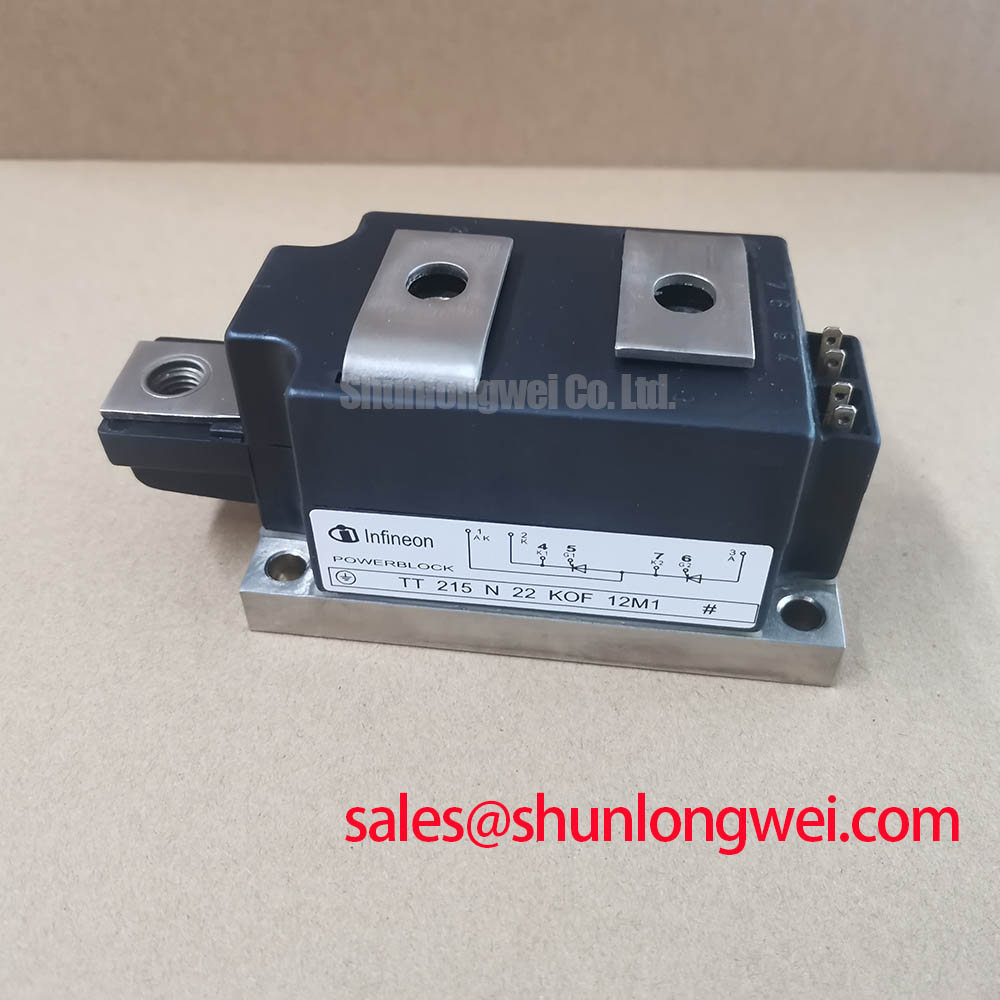

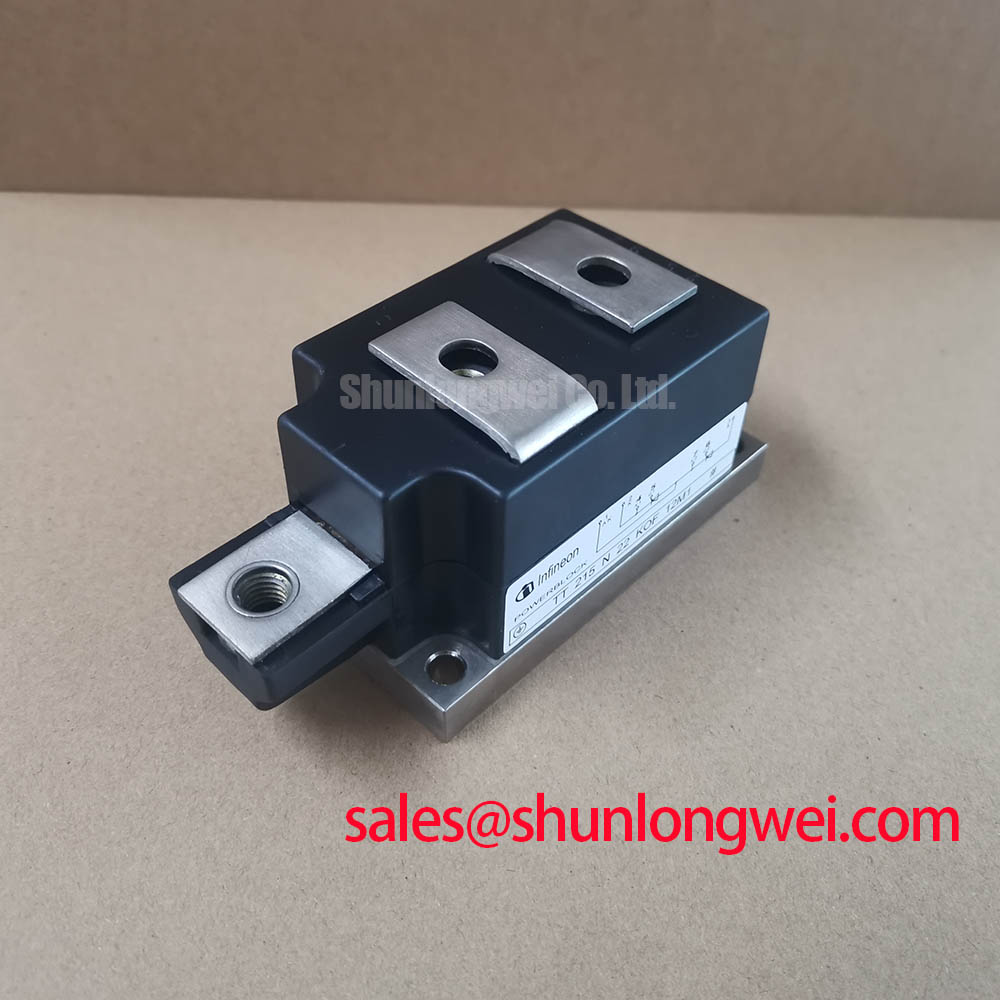

Infineon TT215N22KOF12M1 Thyristor Module | High-Reliability AC Control & Rectification
The Infineon TT215N22KOF12M1 is a high-performance thyristor module engineered for demanding industrial power conversion and control applications. Far more than a simple switch, this component is the cornerstone of system reliability in high-power environments, offering precise control over AC waveforms and robust performance where standard semiconductors falter. It is specifically designed not for high-frequency switching like an IGBT, but for line-frequency phase control and rectification tasks that demand unparalleled ruggedness.
- Model: Infineon TT215N22KOF12M1
- Component Type: Dual Thyristor (SCR-SCR) Module
- Core Functionality: High-power phase control and controlled rectification
- Key Strengths: Exceptional thermal cycling capability and high electrical isolation
- Primary Applications: Industrial motor soft starters, AC voltage controllers, high-current rectifiers, welding power sources.
Multi-dimensional Application Scenarios & Value Proposition
The Infineon TT215N22KOF12M1 excels where brute force meets precision. Its design directly addresses the pain points of several key industrial applications:
- AC Motor Soft Starters: In heavy-duty conveyor belts or large pump systems, abrupt motor starts cause massive inrush currents and mechanical shock. The TT215N22KOF12M1 enables a smooth voltage ramp-up by precisely phasing back the AC waveform, drastically reducing electrical and mechanical stress, thereby extending the lifetime of the entire drivetrain.
- High-Power Controlled Rectifiers: For applications like industrial electroplating or large-scale battery charging systems, this module forms the heart of a robust AC-to-DC converter. Its 2200V blocking voltage provides a significant safety margin on industrial grids, ensuring stable and reliable DC output even under fluctuating line conditions.
- Industrial Heating Control: In furnaces and industrial ovens, the TT215N22KOF12M1 module allows for highly efficient power regulation through phase-angle control. This results in more precise temperature management compared to rudimentary on-off controllers, saving energy and improving product quality.
- Static VAR Compensators (SVC): For power quality improvement, this thyristor module can be used to build thyristor-switched capacitor (TSC) or reactor (TSR) banks. Its reliable switching at line frequency helps stabilize the grid voltage and improve the power factor, reducing utility penalties for large industrial consumers.
Technical Deep Dive: The Foundation of Reliability
Two core technologies set the Infineon TT215N22KOF12M1 apart in terms of durability and performance:
Pressure Contact Technology
Instead of relying on solder joints which can fatigue and crack under thermal stress, this module utilizes pressure contact technology. The internal silicon wafers are held under a precise, high-force pressure, ensuring a superior and consistently low-resistance thermal and electrical path. For system designers, this translates directly to a dramatically increased power cycling capability and a longer operational lifespan, minimizing maintenance and costly downtime in critical systems.
High-Performance Insulated Baseplate
The module is built on an Aluminum Nitride (AlN) ceramic substrate. This advanced material provides excellent electrical isolation (up to 3600Vrms) while offering thermal conductivity that far surpasses traditional alumina. This allows you to mount multiple modules onto a single, non-isolated heatsink, simplifying mechanical design, reducing assembly costs, and ensuring efficient heat extraction from the semiconductor chips.
Key Technical Parameters at a Glance
Parameter | Value |
---|---|
Repetitive Peak Off-State Voltage (VDRM/VRRM) | 2200 V |
Average On-State Current (IT(AV)) @ TC=85°C | 215 A |
RMS On-State Current (IT(RMS)) | 338 A |
Surge Current (ITSM) @ 50Hz | 4500 A |
Isolation Voltage (Visol) | 3600 V (RMS) |
Operating Junction Temperature (Tvj op) | -40°C to 125°C |
For a complete list of specifications, please refer to the official datasheet: [TT215N22KOF12M1 Datasheet].
Thyristor vs. IGBT: Making the Right Choice
Engineers often compare thyristors and IGBTs. The distinction is critical for optimal system design. The Infineon TT215N22KOF12M1 is a thyristor, or SCR (Silicon-Controlled Rectifier). It is a latching device that turns on with a gate pulse but only turns off when its load current falls to zero (line commutation). This makes it ideal for low-frequency (50/60Hz) AC control and rectification.
In contrast, an IGBT module can be turned on and off actively via its gate, enabling high-frequency (kHz range) pulse-width modulation (PWM). You should choose this thyristor module for robustness in line-frequency applications. For variable frequency drives (VFDs), solar inverters, or high-frequency switching power supplies, an IGBT is the appropriate choice.
Frequently Asked Questions (FAQ)
- What is a "back-to-back" configuration for this module?
This involves connecting two thyristors in anti-parallel to control both the positive and negative half-cycles of an AC waveform. The dual-thyristor topology of the TT215N22KOF12M1 is perfectly suited for building a compact and efficient back-to-back SCR topology for AC voltage controllers.
- What are the key mounting considerations for this module?
Due to its pressure contact design, ensuring the correct and uniform mounting pressure across the baseplate is critical for achieving specified thermal and electrical performance. Always use a calibrated torque wrench and follow the datasheet's mounting guidelines precisely.
- Why is the surge current rating (ITSM) so important?
The high surge current rating (4500A) indicates the module's ability to withstand significant, non-repetitive fault currents, such as those from a motor stall or a short circuit on the line. This inherent ruggedness is a key factor in building fault-tolerant industrial equipment.
For high-power, line-frequency applications that demand unwavering reliability and thermal endurance, the Infineon TT215N22KOF12M1 thyristor module provides a field-proven and technically superior solution. To validate if this component is the right fit for your design or to request a quote, please Contact Us for expert guidance.
