MG50Q6ES40 IGBT Module: A Technical Review for Industrial Drives

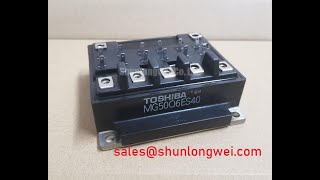

The Toshiba MG50Q6ES40 is an integrated six-pack IGBT module engineered for reliability in three-phase motor control and high-power switching applications. It delivers a robust 1200V | 50A | VCE(sat) 4.0V max specification, providing a dependable foundation for industrial inverter designs. This module excels at simplifying circuit layouts and ensuring consistent thermal performance. For engineers designing compact Variable Frequency Drives (VFDs), the MG50Q6ES40's integrated six-IGBT topology directly addresses the challenge of minimizing board space and parasitic inductance. Its proven design makes it an optimal choice for systems where straightforward implementation and operational durability are paramount.
Application Scenarios & Value
Achieving System-Level Benefits in Three-Phase Motor Control
The MG50Q6ES40 is purpose-built for the core of many industrial systems: AC motor control. Its primary value lies in its integrated "six-pack" configuration, which contains all six necessary IGBTs for a complete three-phase inverter bridge in a single, compact package. This design directly solves a key engineering challenge in systems like Variable Frequency Drive (VFD) units, industrial pumps, and automated conveyor systems.
Consider the design of a mid-power VFD. Using discrete IGBTs requires complex gate drive circuitry, careful PCB layout to minimize stray inductance, and a larger, more intricate heatsink arrangement. The MG50Q6ES40 streamlines this entire process. By co-packaging the switches, it inherently reduces the parasitic inductance between them, which can otherwise lead to voltage overshoots and increased switching noise. This integration simplifies compliance with electromagnetic compatibility (EMC) standards like IEC 61800-3. The result is a more compact, reliable, and easier-to-manufacture motor drive with a simplified bill of materials (BOM).
For systems that require higher current handling capabilities, the related MG150Q2YS50 offers a similar integrated approach with an increased power rating.
Key Parameter Overview
Decoding the Specs for Efficient Power Conversion
The specifications of the MG50Q6ES40 are tailored for robust performance in demanding industrial environments. The parameters below have been selected to highlight the module's core capabilities in power handling and switching efficiency.
| Parameter | Value | Engineering Implication |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V | Provides a substantial safety margin for applications running on 380V to 480V AC lines, protecting against voltage spikes. |
| Collector Current (IC) | 50 A (DC) | Suitable for controlling motors typically in the 7.5 kW to 15 kW (10 to 20 hp) range, depending on system voltage and efficiency. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 4.0 V (Max) | This parameter is a direct indicator of conduction losses. Think of it as electrical friction; a lower VCE(sat) means less power is wasted as heat while the switch is on. |
| Collector Power Dissipation (PC) | 250 W (@ Tc = 25°C) | Defines the module's ability to dissipate heat, a critical factor for thermal design and ensuring long-term reliability. |
| Isolation Voltage (VISOL) | 2500 V (AC, 1 min) | Ensures safety by providing high dielectric strength between the live electrical terminals and the module's metal baseplate, which is typically mounted to a grounded heatsink. |
Download the MG50Q6ES40 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
What is the primary benefit of the MG50Q6ES40's six-pack configuration?
Its main advantage is system integration. By combining six IGBTs into one module, it simplifies the design of three-phase inverters, reduces assembly time, minimizes PCB space, and lowers parasitic inductance compared to using discrete components.
How does the VCE(sat) of 4.0V impact system design?
The Collector-Emitter Saturation Voltage, or VCE(sat), directly influences the module's conduction losses. While a value of 4.0V is characteristic of its technology generation, it requires the system designer to plan for adequate thermal management to dissipate the resulting heat effectively, ensuring the junction temperature remains within its safe operating limits.
Is the MG50Q6ES40 suitable for high-frequency switching applications?
The datasheet specifies a fall time (tf) of 0.5μs (max). This positions the module for applications with moderate PWM switching frequencies, typically in the range of 2 kHz to 10 kHz, which is common for standard industrial motor drives. It is not optimized for very high-frequency applications like switched-mode power supplies.
What does the 2500V isolation rating signify for practical use?
The VISOL rating of 2500V (AC for 1 minute) guarantees robust electrical isolation between the high-voltage circuits and the module's mounting base. This is a critical safety feature, ensuring that the heatsink can be safely grounded without creating a short circuit, protecting both the equipment and personnel.
Industry Insights & Strategic Advantage
System Reliability and Design Simplification
In the landscape of industrial automation, equipment uptime and reliability are non-negotiable. The MG50Q6ES40 IGBT module aligns with this core principle by offering a design that prioritizes robustness and ease of implementation. While newer semiconductor technologies may offer lower switching or conduction losses, the strategic advantage of a module like the MG50Q6ES40 lies in its proven track record and design simplicity. For many established industrial applications, transitioning to a newer, more complex power stage can introduce unforeseen risks in validation and field reliability. This Toshiba module represents a known quantity, allowing engineers to develop or maintain power conversion systems with a high degree of confidence and predictable performance. Its integrated nature inherently reduces the number of potential failure points and simplifies the thermal design, contributing directly to a lower total cost of ownership (TCO) through reduced maintenance and enhanced system longevity.
Strategic Outlook
The MG50Q6ES40 embodies a design philosophy centered on integration and reliability for mainstream industrial power conversion. Its value proposition is not in pushing the boundaries of switching speed but in delivering a dependable, easy-to-implement solution for the vast installed base of AC motor drives and power converters. For engineering teams focused on speed to market, system robustness, and manufacturing simplicity, this module provides a solid, field-proven foundation. It serves as a testament to the enduring importance of well-architected power modules that solve fundamental system-level challenges in industrial electronics.
