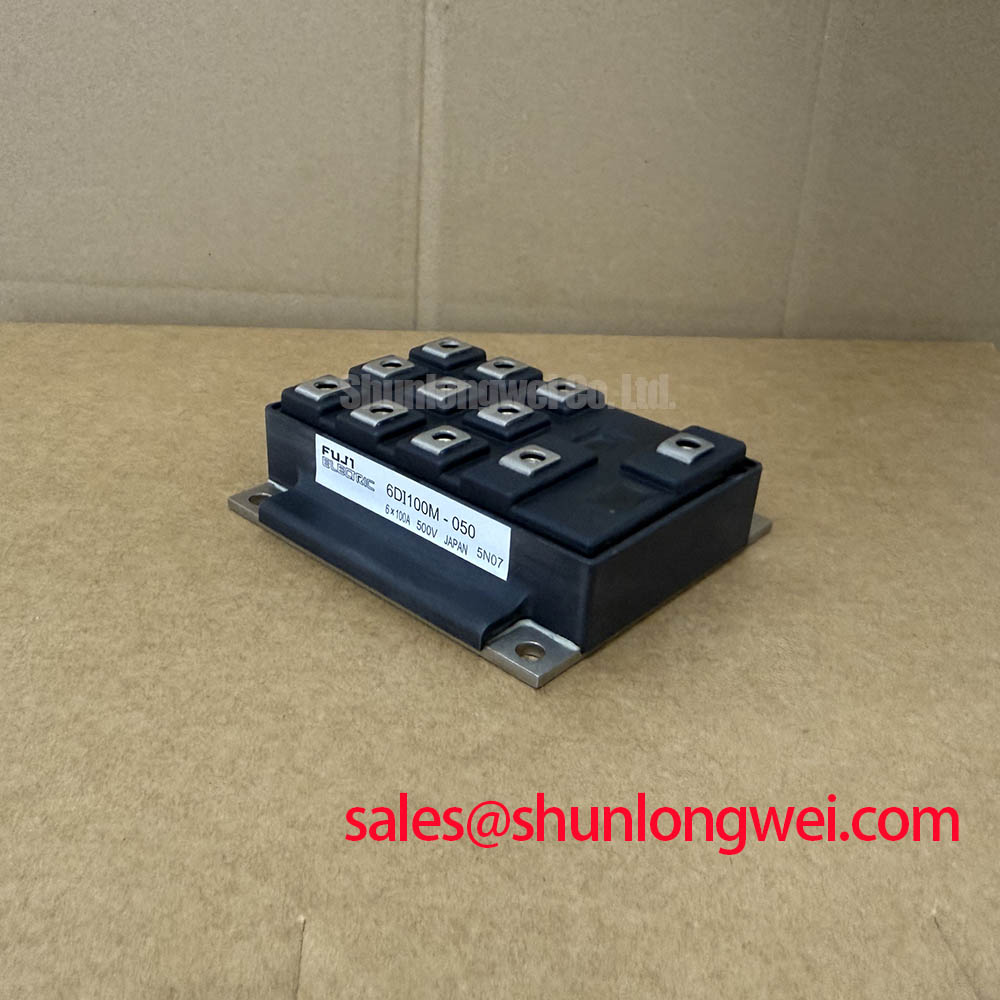

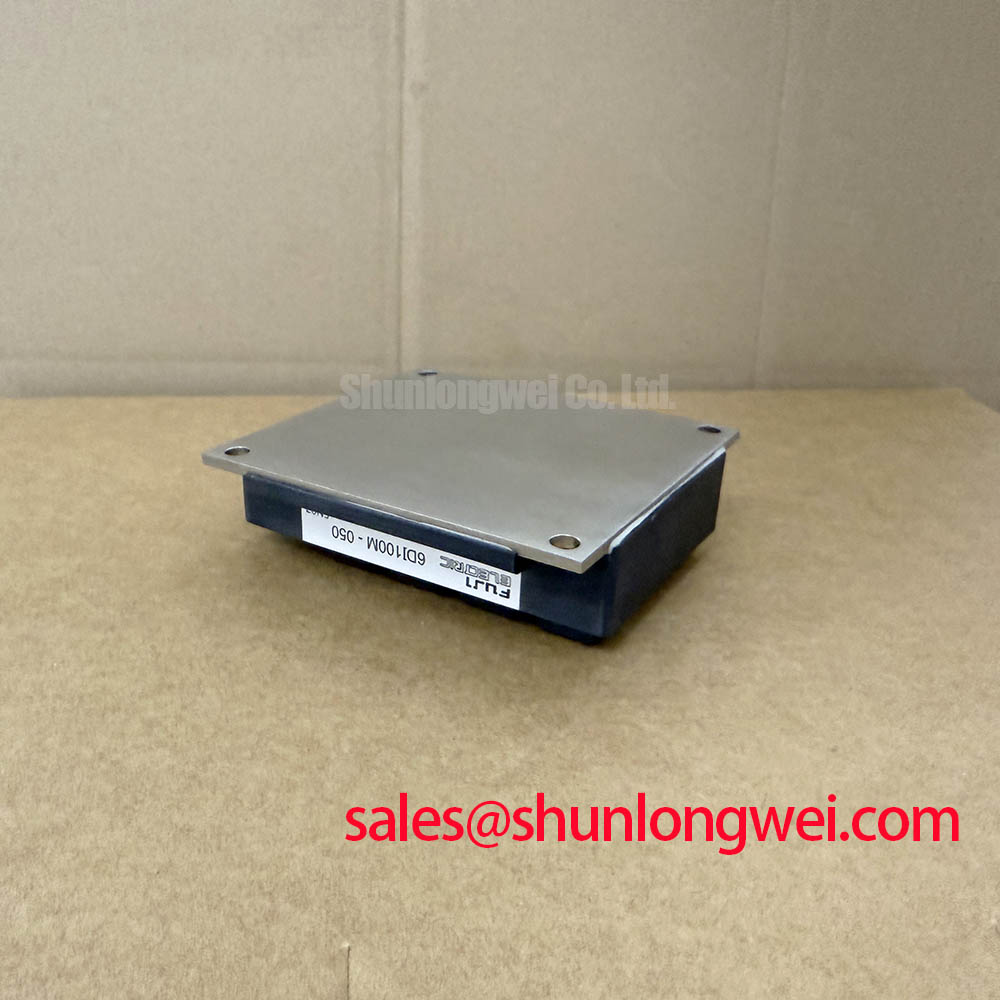

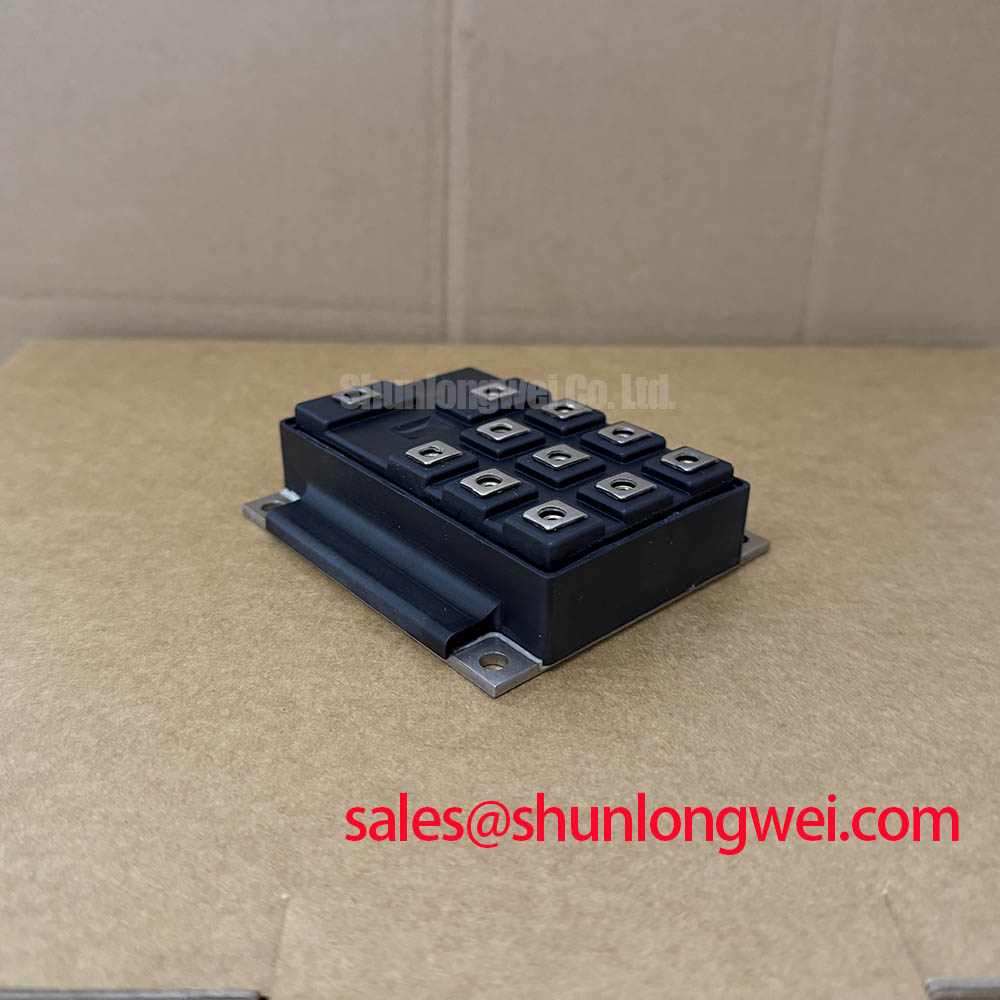

6DI100M-050 Fuji Electric 500V 100A Power Transistor Module
The Fuji Electric 6DI100M-050, a cornerstone of the specialized Power Transistor Module family, is a high-density 6-pack (three-phase bridge) solution designed for robust switching in legacy industrial environments. By integrating six high-gain transistors into a single isolated package, this module eliminates the parasitic inductance and thermal management complexities associated with discrete BJT layouts. For engineers managing 200V-400V class industrial systems, the 6DI100M-050 offers a proven architecture for AC motor drives and UPS stages where reliable current handling is the primary design constraint.
Top Specifications: 500V | 100A | 6-Pack Configuration
- Key Benefit 1: Reduced system footprint through 6-pack integrated architecture.
- Key Benefit 2: High DC current gain (hFE) for simplified drive circuitry.
How does the 6DI100M-050 improve system reliability? Its isolated mounting base acts as a "thermal highway," allowing for direct attachment to heatsinks without additional isolation pads, thereby lowering the total junction-to-ambient thermal resistance. For 200V industrial drives prioritizing high current density, the 100A rating of this module provides the necessary overhead for inductive load surges.
Key Parameter Overview
Decoding the 6-Pack Specs for Enhanced Power Density
The 6DI100M-050 is engineered to operate within stringent electrical boundaries to ensure long-term stability in high-duty cycle applications. The following parameters represent the absolute maximum ratings and typical characteristics derived from the official technical documentation.
| Parameter Symbol | Technical Description | Rating / Value |
|---|---|---|
| VCBO / VCEO | Collector-Emitter Voltage | 500V |
| IC | Continuous Collector Current | 100A |
| ICP | Peak Collector Current (1ms) | 200A |
| PC | Collector Power Dissipation (Per Transistor) | 400W |
| VCE(sat) | Collector-Emitter Saturation Voltage | 2.0V (Max) |
| Viso | Isolation Voltage (AC 1 minute) | 2000V |
Application Scenarios & Value
Solving Legacy Integration Challenges in 3-Phase Systems
The 6DI100M-050 is frequently utilized in the repair and maintenance of legacy Variable Frequency Drives (VFD) and Servo Drives. In these systems, engineers often face the challenge of managing high-surge currents during motor startup. For instance, in an industrial conveyor system, the 100A continuous rating and 200A peak rating allow the 6DI100M-050 to handle the initial LRA (Locked Rotor Amps) without triggering desaturation or thermal shutdown.
The integration of six transistors significantly simplifies the Gate Drive layout compared to using multiple discrete devices. This reduces the risk of EMI interference in sensitive control electronics. While this module is optimal for 200V-400V rectified DC buses, for systems requiring higher voltage overhead, the related 6DI100A-060 offers a 600V rating. For more modern high-frequency designs, engineers may consider a transition toward an IGBT vs MOSFET vs BJT assessment to optimize switching losses.
Industry Insights & Strategic Advantage
Strategic Maintenance and the Lifecycle of Power Modules
In the evolving landscape of power electronics, the 6DI100M-050 represents a vital link for maintaining "brownfield" industrial assets. As industries push toward Industrial 4.0, the cost of replacing entire drive systems often outweighs the cost of strategic component replacement. The 6-pack architecture of this Fuji module was a precursor to modern IGBT Modules, providing a compact footprint that remains relevant for high-reliability UPS and Welding Power Supply units.
The strategic advantage of sourcing the 6DI100M-050 lies in its mechanical compatibility with existing chassis. Its standardized mounting points and terminal positions ensure that maintenance engineers can perform "drop-in" replacements without re-engineering the Thermal Management system. For detailed insights into how these modules fit into modern efficiency standards, refer to our engineers ultimate guide.
Frequently Asked Questions
How does the 6-pack configuration of the 6DI100M-050 impact PCB routing and parasitic inductance?
The integrated 6-pack design significantly reduces the physical distance between phase legs, which minimizes the loop area and associated parasitic inductance. This is critical for controlling voltage spikes during high-speed switching transitions, ultimately protecting the 500V ceiling from inductive overshoot.
What are the cooling requirements for the 6DI100M-050 when operating at the full 100A rating?
Operating at 100A requires a high-performance heatsink and thermal interface material (TIM). Given the 400W dissipation per transistor, active air cooling or liquid cooling is typically necessary to keep the junction temperature below the 150°C limit. Proper Thermal Management is essential to prevent thermal runaway in BJT structures.
Can the 6DI100M-050 be used for high-frequency PWM applications?
While the 6DI100M-050 features high-speed switching characteristics for its class, it is a BJT-based module. It is best suited for Variable Frequency Drives and applications where switching frequencies are generally below 10-15 kHz. For frequencies above this range, an IGBT Module may be required to minimize switching losses.
For procurement professionals and maintenance engineers seeking long-term reliability in legacy power conversion, the 6DI100M-050 remains a stable and technically sound choice. For further technical support or testing protocols, please visit our guide on how to test an IGBT module with a multimeter, which shares many diagnostic principles with Power Transistor modules.
