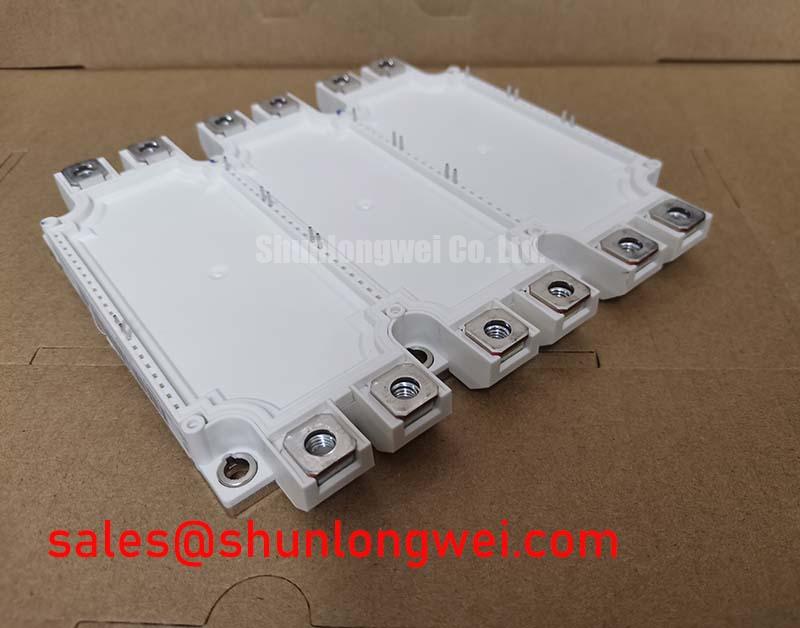

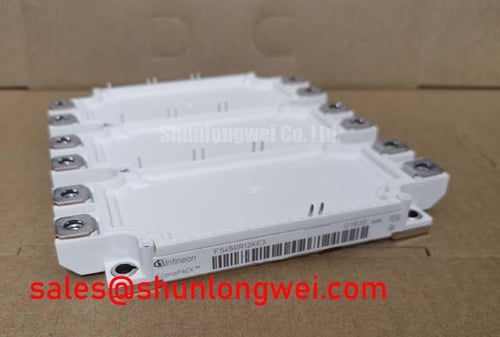

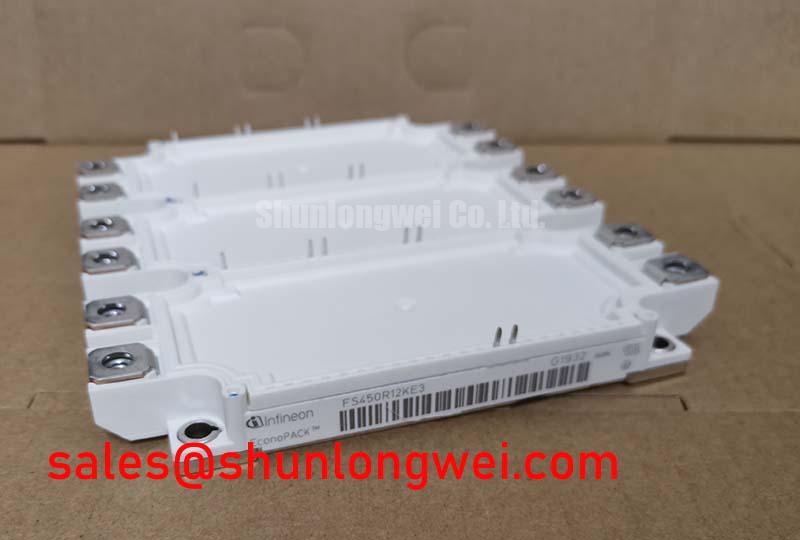

Infineon FS450R12KE3 IGBT Module: High-Efficiency 3-Level Power Conversion
The Infineon FS450R12KE3 is a high-performance IGBT module engineered for advanced power conversion systems. Housed in the industry-proven EconoPACK™ 3 package, this module integrates a three-level Neutral Point Clamped (NPC) topology with a rating of 1200V and 450A. It is specifically designed to meet the demanding requirements of high-efficiency applications, including solar inverters, uninterruptible power supplies (UPS), and sophisticated industrial motor drives.
Core Product Features In-Depth
Advanced Three-Level NPC Topology
The standout feature of the FS450R12KE3 is its integrated three-level Neutral Point Clamped (NPC) topology. Unlike conventional two-level inverters that switch the full DC bus voltage, the IGBTs in this module only switch half the voltage. This design principle dramatically reduces switching losses, which are proportional to the square of the voltage. The direct application benefit is a significant boost in overall system efficiency. This allows designers to either operate at higher switching frequencies to reduce the size and cost of magnetic components (like inductors and filters) or to lower thermal dissipation, resulting in smaller heatsinks and reduced cooling requirements for enhanced power density.
Trenchstop™ IGBT4 and Emitter Controlled Diode Technology
This module leverages Infineon's robust Trenchstop™ IGBT4 technology, which provides an exceptional balance between low conduction losses (low Vce(sat)) and minimal switching losses. This optimization is crucial for applications that experience both high load currents and high switching frequencies. The result is superior thermal performance and higher power throughput from a compact module. Paired with the Emitter Controlled Diode, the FS450R12KE3 ensures soft, low-loss switching characteristics, improving system reliability and reducing electromagnetic interference (EMI), which simplifies filter design and compliance efforts in industrial automation environments.
Typical Application Scenarios and Innovative Value
Solar Inverters
In utility-scale solar power conversion, maximizing energy harvest is paramount. The FS450R12KE3's three-level topology enables central solar inverters to achieve efficiencies well above 98%. This configuration produces a higher quality output voltage waveform with lower harmonic distortion, significantly reducing the size, weight, and cost of the required output filters. This directly translates to lower system costs and a better return on investment for solar installations.
Uninterruptible Power Supplies (UPS)
For large data centers and critical industrial facilities, the operational cost of a UPS system is a major consideration. The high efficiency of the FS450R12KE3 minimizes energy waste during power conversion, leading to substantial savings in electricity consumption over the system's lifetime. Furthermore, the reduced heat dissipation simplifies thermal management, allowing for more compact and reliable UPS designs that are essential for maintaining uptime in critical power applications.
Industrial Motor Drives
High-performance servo drives and variable frequency drives (VFDs) demand precise control and high power density. The fast and soft switching behavior of the IGBT4 technology within the FS450R12KE3 allows for smoother motor operation and reduced torque ripple. Its high thermal performance enables the design of more compact and powerful drives, making it an ideal choice for robotics, CNC machinery, and other demanding industrial automation tasks where space and performance are critical.
Key Technical Parameters Overview
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic) @ 80°C | 450 A |
| Topology | Three-Level, Neutral Point Clamped (NPC1) |
| Technology | Trenchstop™ IGBT4 |
| Package | EconoPACK™ 3 |
| Maximum Junction Temperature (Tvj max) | 150°C (175°C overload) |
For complete technical specifications, please refer to the official Infineon FS450R12KE3 datasheet.
Comparative Analysis and Selection Advice
When selecting a power module, it is important to compare it with alternatives based on application needs. A relevant comparison for the FS450R12KE3 is the Infineon FF450R12ME4, a standard two-level (half-bridge) IGBT module with the same voltage and current ratings.
Infineon FS450R12KE3 (Three-Level): This module is the superior choice for high DC-link voltage systems (e.g., 800V-1000V) where maximizing efficiency and power quality are the primary goals. Its architecture is purpose-built for applications like large-scale solar inverters and high-efficiency UPS systems, where the reduction in switching losses and filter size provides a compelling system-level advantage.
Infineon FF450R12ME4 (Two-Level): This module offers a simpler, more traditional half-bridge topology. It is a cost-effective and robust solution for standard motor drives, power supplies, and welding equipment operating at lower DC-link voltages where the complexity of a three-level inverter is not required. It provides a straightforward design path for general-purpose power conversion.
For expert guidance on your specific application or to get a quote, explore our extensive range of IGBT modules or contact our technical specialists today.
