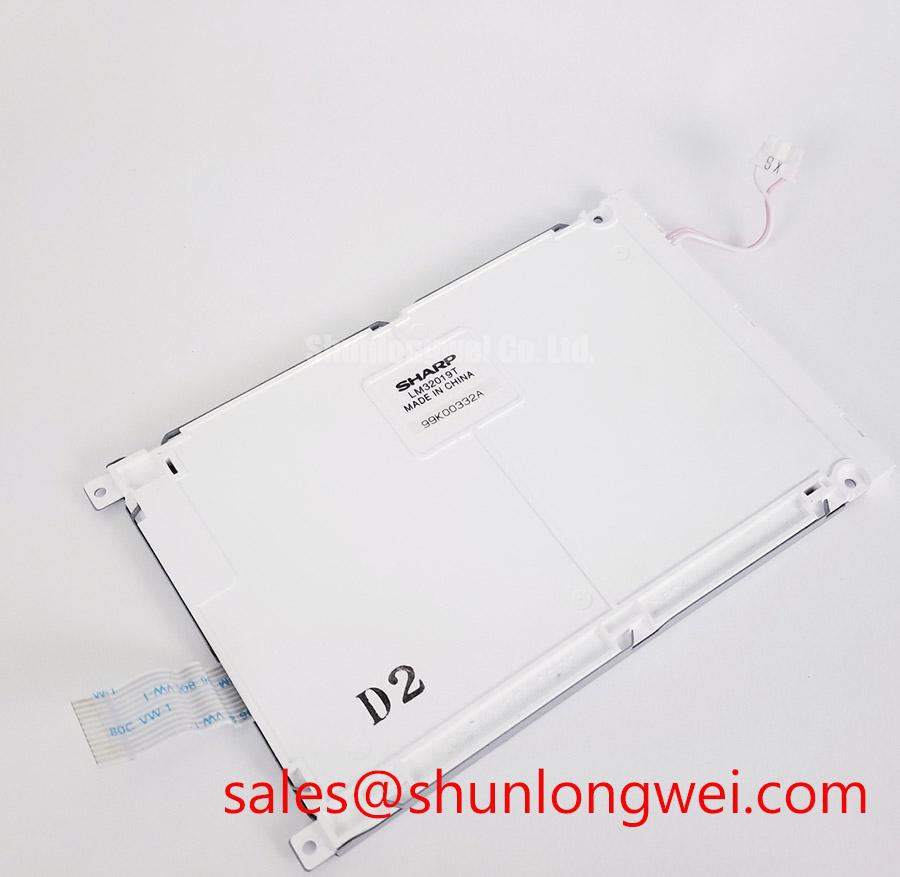

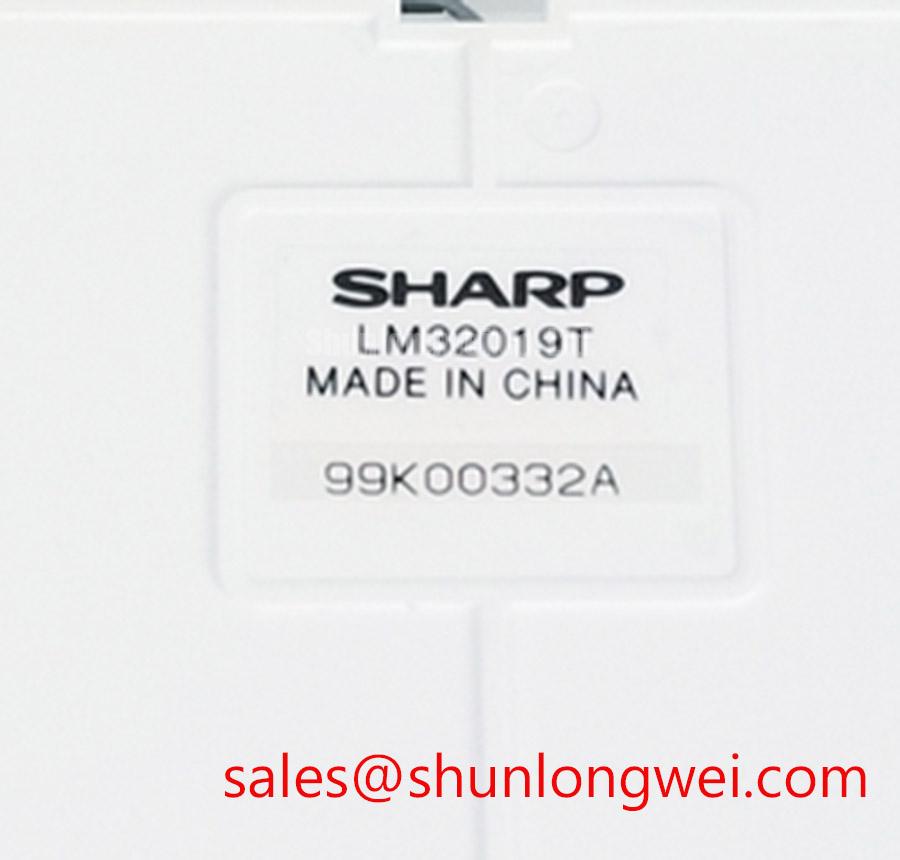

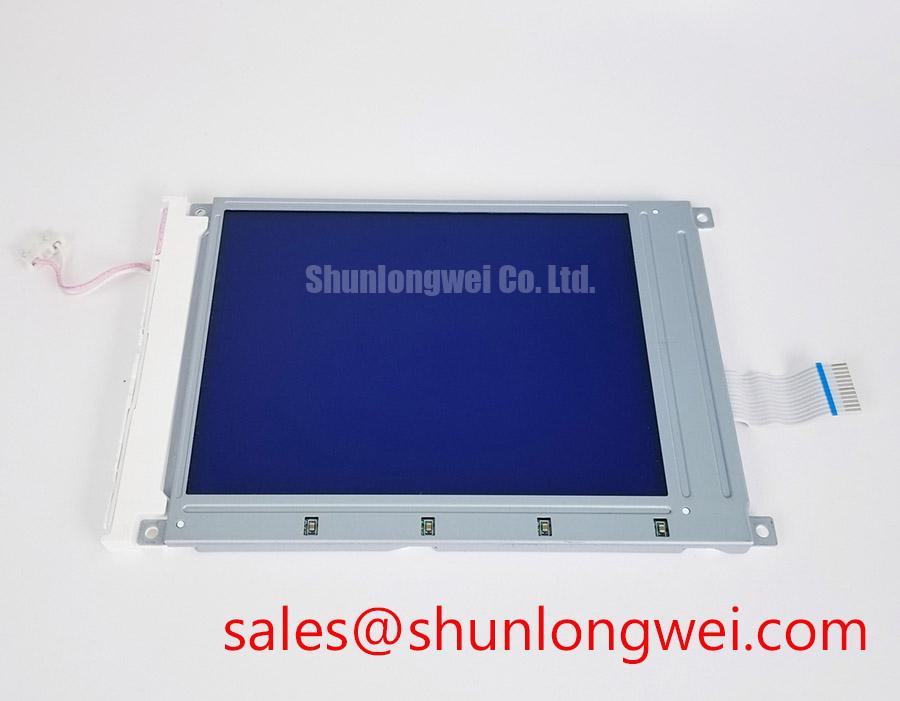

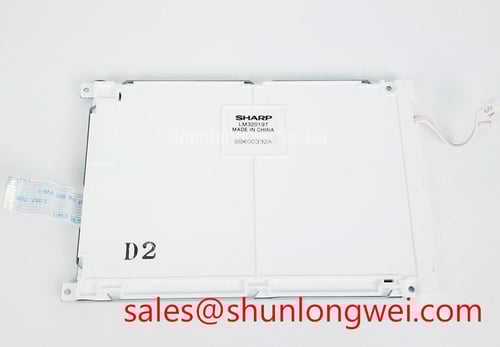

Sharp LM32019T | The Enduring Standard for Industrial Monochrome Displays
The Sharp LM32019T is more than just a display; it's a cornerstone component for industrial and medical equipment demanding unwavering clarity and reliability. This 5.7-inch QVGA (320x240) monochrome STN-LCD has established itself as a benchmark for performance in applications ranging from Human-Machine Interfaces (HMIs) and process controllers to critical medical diagnostic tools. Its value lies in its proven design, providing a stable and readily available solution for both legacy system maintenance and new, cost-conscious designs that prioritize readability above all else.
Deep Dive into Legacy Compatibility & Industrial Reliability
Understanding the Sharp LM32019T means appreciating the engineering choices that have made it a mainstay for decades. Its features are not merely specifications; they are solutions to real-world industrial challenges.
- Unmatched Readability with High-Contrast STN: The LM32019T utilizes a Film-compensated Super-Twisted Nematic (FSTN) liquid crystal mode. This isn't just a technical acronym; it's the reason for its crisp, paper-like black-and-white image quality. Unlike some color displays where text can appear pixelated against a complex background, this display renders characters and basic graphics with exceptional sharpness. This is crucial for reducing operator error in factory automation or medical environments where data must be read quickly and without ambiguity.
- Durable CCFL Backlight System: While many modern displays have shifted to LED, the Cold Cathode Fluorescent Lamp (CCFL) backlight in the LM32019T offers distinct advantages for long-lifecycle industrial use. It provides a highly uniform, stable light source with a proven operational lifespan of tens of thousands of hours. This technology is known for its resilience and consistent brightness across the entire screen, a critical factor for equipment expected to run for years, or even decades.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Sharp |
| Model | LM32019T |
| Display Size | 5.7 inch |
| Resolution | 320 x 240 (QVGA) |
| Display Technology | STN (Super-Twisted Nematic), Monochrome |
| Backlight | CCFL (Cold Cathode Fluorescent Lamp) |
| Interface | 4-bit Parallel Data |
| Operating Temperature | 0°C to 45°C |
| Outline Dimensions | 167(W) x 109(H) x 11.0(D) mm |
For complete details, please refer to the LM32019T Datasheet.
Application Scenarios: Solving Problems, Not Just Filling a Slot
The true value of a component is demonstrated in its application. The LM32019T excels in environments where its specific strengths solve critical problems.
- Legacy System Maintenance & Retrofits: This is arguably the most critical application for the Sharp LM32019T today. For countless systems in the field, it serves as a direct, form-fit-function replacement. This allows businesses to avoid the immense cost, downtime, and engineering resources required to redesign, re-tool, and re-certify a product built around this specific display.
- Industrial Control Panels & HMIs: In environments with significant electrical noise, the straightforward TTL interface and robust design minimize susceptibility to EMI. This ensures that machine operators and process control systems receive clear, uninterrupted visual data, enhancing both safety and operational efficiency.
- Medical and Scientific Instrumentation: For devices like ventilators, infusion pumps, or laboratory analyzers, data integrity is non-negotiable. The high-contrast output of the LM32019T ensures that critical numerical values and simple waveforms are instantly legible, even under challenging hospital lighting.
Why Choose the LM32019T Over Modern TFT Alternatives?
While a modern color TFT-LCD technology might seem appealing, consider the total cost of ownership and system complexity. For an application natively designed for monochrome data, "upgrading" to color often introduces unnecessary hurdles: new graphics driver development, different interface logic (like MIPI), potential mechanical redesigns, and a different power supply profile. The Sharp LM32019T eliminates this complexity. It is the definition of a fit-for-purpose component, prioritizing flawless function and proven reliability over features that add no value to the core application.
For new projects requiring different specifications, you can explore our full range of industrial LCD modules. If you need a direct replacement or a cost-effective solution for a clear data display, the LM32019T remains an unparalleled choice. Contact us for a quote to secure your supply of this essential industrial component.
