Preventing Spurious Faults: Insulation Barrier Integrity Guidelines for 142570-TT66N

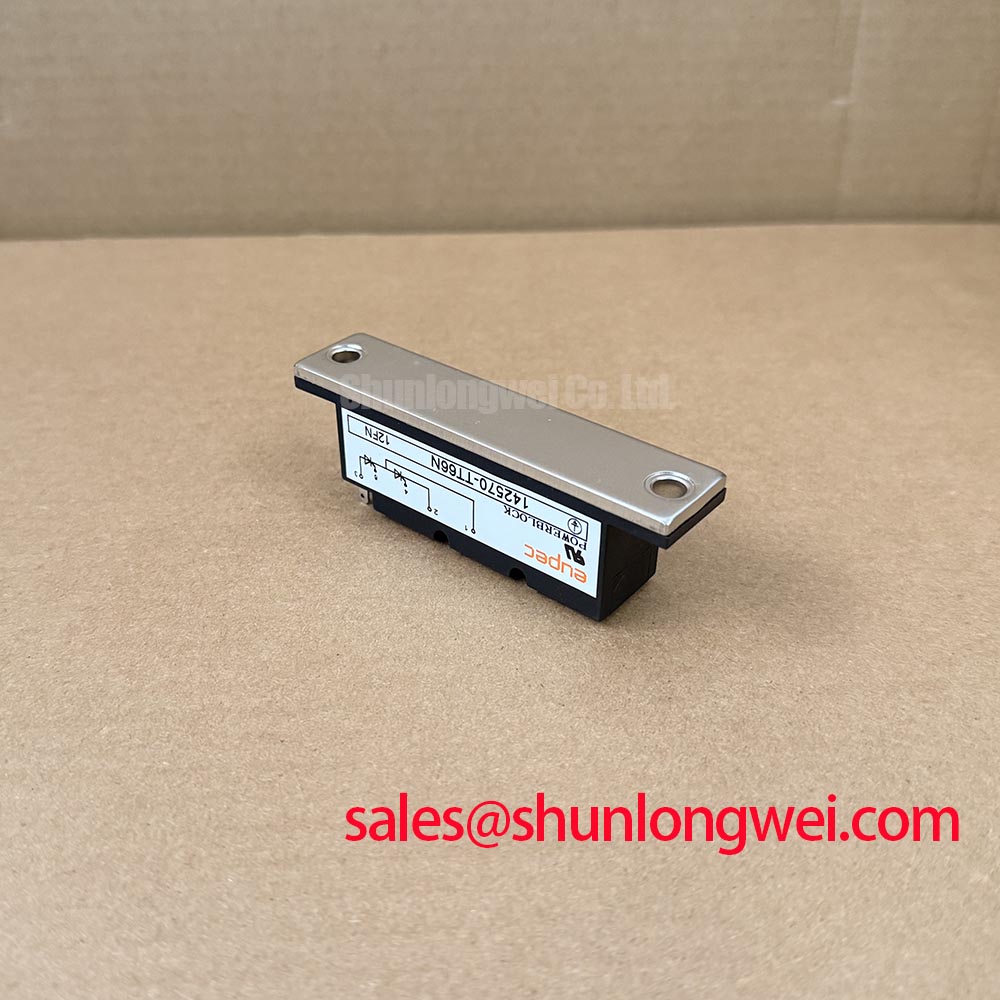

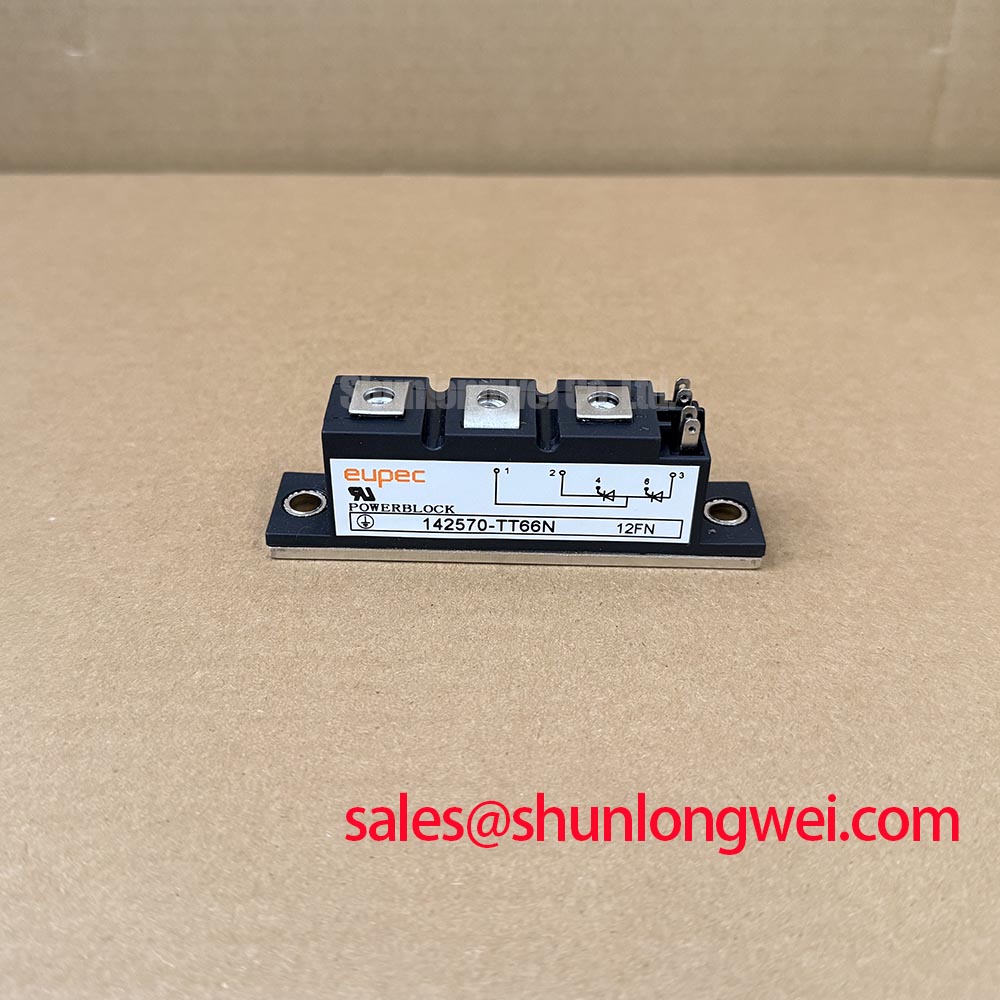

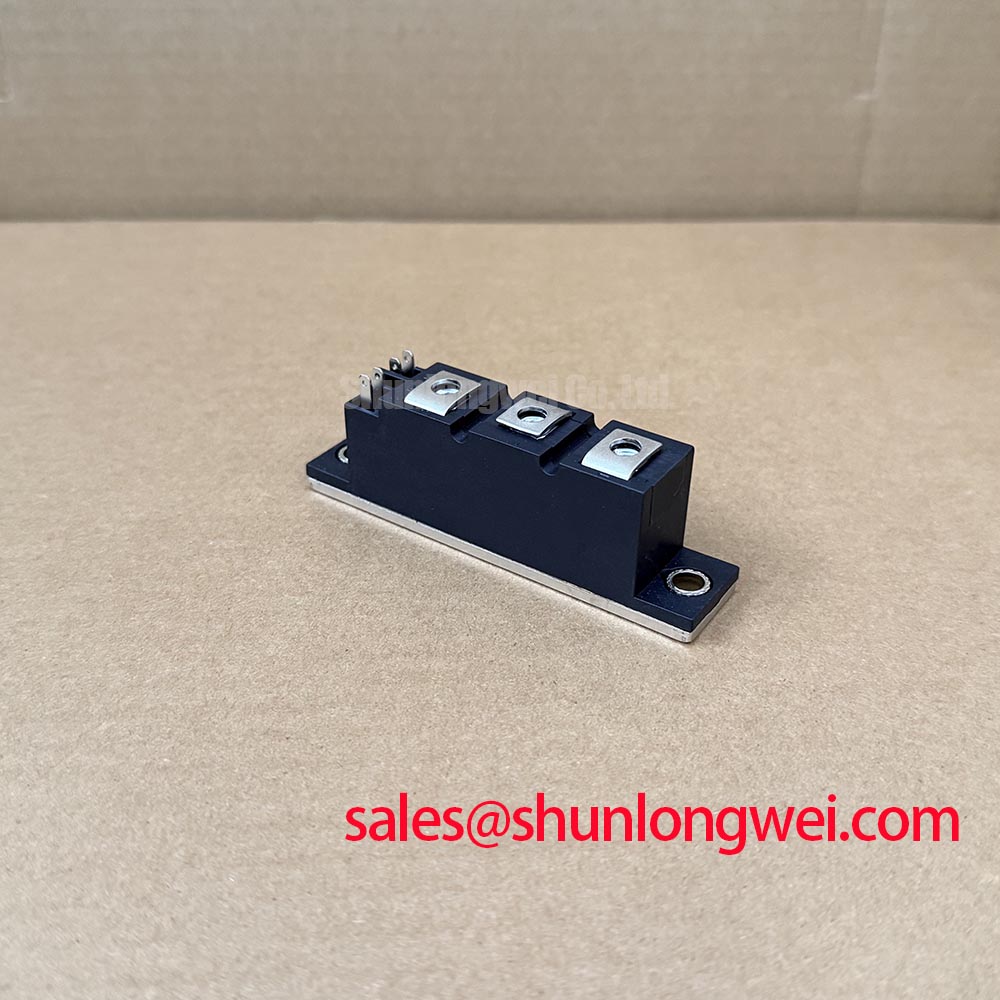

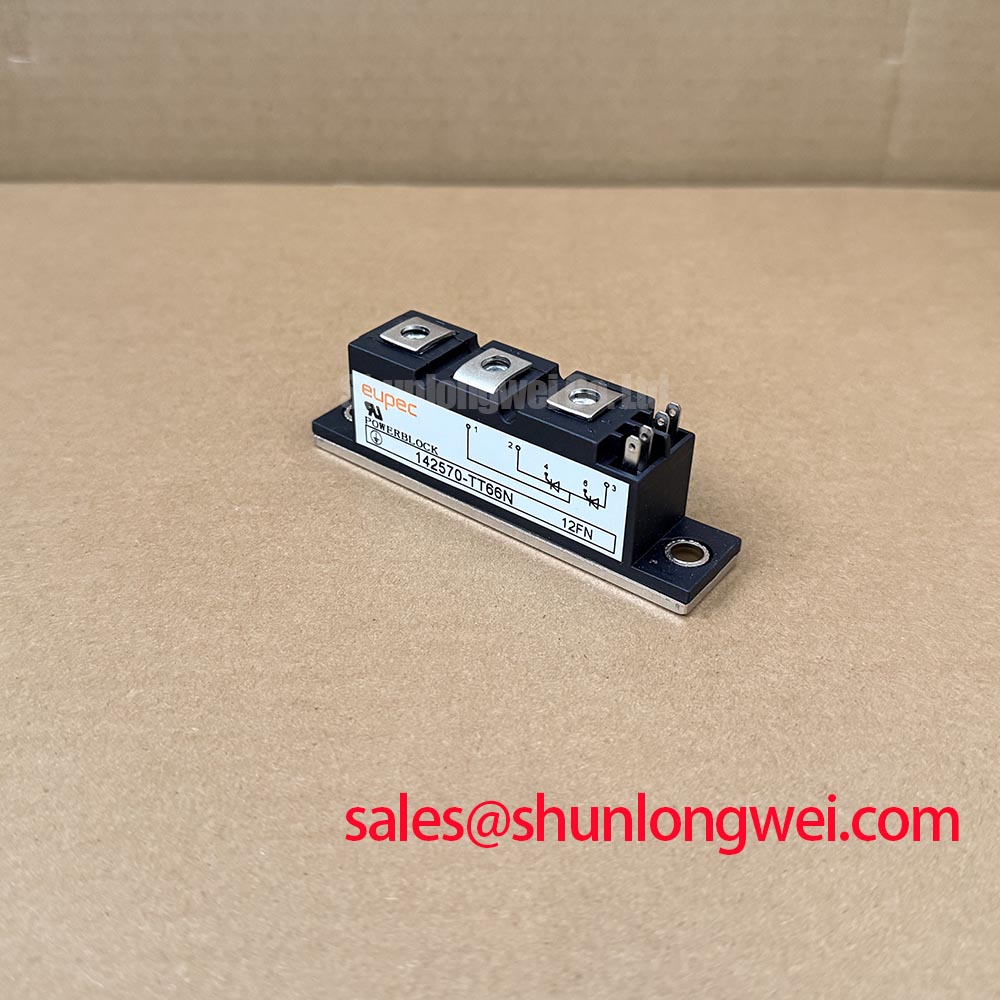

With the power isolated and stored energy discharged, compare the 142570-TT66N terminal markings, control connections, and mounting arrangement with the equipment schematic before connecting a replacement. Confirm the manufacturer and numerical electrical ratings from device-specific documentation. Consult the device datasheet for rated limits, semiconductor topology, terminal assignments, and mounting requirements before substitution.
When evaluating the 142570-TT66N power semiconductor module for an industrial inverter welder or medium-frequency induction heating power supply, first establish its role in the original circuit. A controlled rectifier position and an inverter switching position impose different triggering, commutation, and protection requirements. Matching the enclosure alone does not establish electrical compatibility.
Trace the isolation boundary between the controller, driver supply, and power terminals before investigating an apparent unwanted firing event. As a Design Consideration, distinguish a disturbed control command from a driver output disturbance by observing both sides of the isolation interface with appropriately rated measurement equipment. Correlate the disturbance with power-terminal transitions rather than treating a fault indication as proof of insulation failure.
Reinforced insulation and common-mode transient immunity are separate characteristics requiring component-specific documentation. Neither is established for this module by its package designation. Designers should check the installed optocoupler or digital isolator, isolated supply, board clearance, and creepage against the equipment’s working voltage and applicable insulation requirements. Surface contamination and routing across the isolation boundary deserve inspection, but visual examination cannot certify dielectric integrity.
For an existing isolated driver, compare input commands, local supply behavior, and output timing during controlled switching. Keep measurement return paths from bridging the isolation barrier. Any dielectric test should follow the equipment manufacturer’s procedure, including disconnection of circuitry that cannot tolerate the test.
142570-TT66N Thermal-Electrical Optimization: Gate Drive Resistance Checks and Practical Tuning
Identify the semiconductor control method before changing a gate resistor. Independent turn-on and turn-off resistance calibration applies to compatible voltage-controlled switching stages; it is not a general replacement procedure for every power module. If the circuit uses thyristor phase-angle control, the relevant checks instead include trigger-current capability, pulse timing, holding conditions, and reliable commutation.
As a Design Consideration for a confirmed IGBT stage, evaluate resistor changes through switching waveforms and thermal behavior under representative load. Faster transitions can reduce switching loss while increasing ringing and overshoot; slower transitions can transfer stress into semiconductor dissipation. Preserve the distinction between gate-loop damping and an RC snubber across the power circuit, whose pulse loading and dissipation require separate assessment.
Check line-frequency ripple at the power stage before attributing uneven conduction to the driver. If a bootstrap supply is present, inspect its recharge opportunities, capacitor voltage during conduction, and diode recovery behavior. The external reference on proximity effect in high-frequency conductors explains a relevant contributor to winding losses, not a confirmed property of this module. Where tuning affects a regulated converter, Bode plot frequency-response analysis helps assess loop stability separately from switching-edge ringing.
Benchtop Waveform Tuning: Negative Gate Bias vs Active Miller Clamping in a Confirmed IGBT Stage
Compare the control-terminal waveform with the adjacent switching-node transition before attributing an unwanted pulse to Miller coupling. For a confirmed IGBT implementation, an active Miller clamp and negative off-state bias are alternative driver strategies whose suitability depends on gate limits, driver timing, and return-path impedance. Neither feature should be assumed to exist inside the 142570-TT66N.
Engineering Recommendation: keep the driver’s outgoing and return paths close together to reduce inductive disturbance, then assess the waveform at the device terminals rather than only at the driver output. Probe placement matters because the measurement loop can display ringing that does not represent the actual gate voltage.
Practical tip: where the confirmed topology permits, use balanced power-loop routing to reduce unequal inductive stress, then validate switching peaks with a suitable controlled test. Use the Power Electronics Masterclass as background for organizing operating-margin checks, while retaining device-specific limits as the acceptance criteria.
142570-TT66N Protection Checks: High-Speed Semiconductor Fuse I²t Coordination
Compare the proposed fuse’s total clearing I²t with the semiconductor’s documented withstand conditions, not simply its nominal current. As a Design Consideration, prospective fault current, circuit voltage, interruption capability, and coordination with electronic protection all affect the result. Fuse melting data alone cannot establish protection against package rupture.
Evaluate an existing MOV network separately from short-circuit interruption. Its clamping behavior, pulse-energy capability, and connection inductance determine whether it can assist with the identified overvoltage event; it does not replace a correctly coordinated fuse. Check snubber components and bus connections for deterioration before repeating fault-sensitive tests.
Preserve the documented mechanical mounting arrangement during replacement. Do not introduce disc-spring preload or double-sided clamping unless the specified package requires it. Record fuse selection, fastening requirements, thermal-interface condition, and protection-test results against the equipment’s service acceptance criteria.
