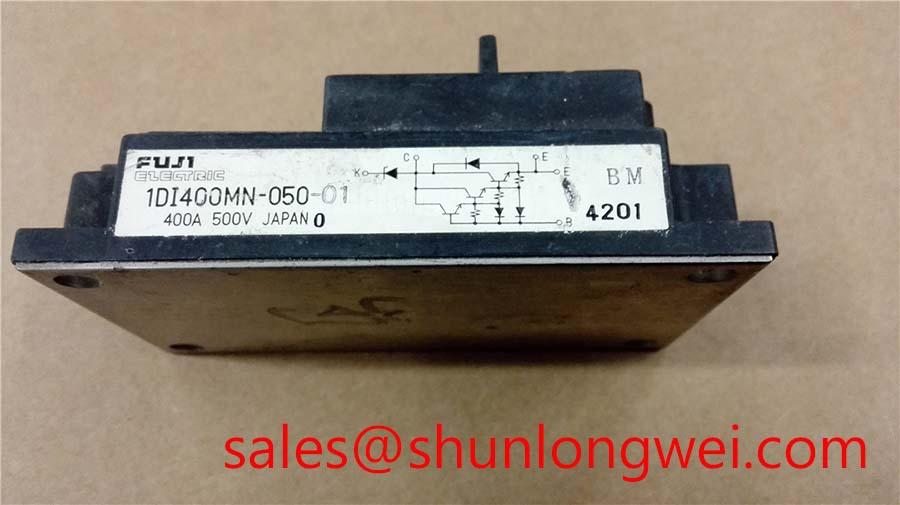

1DI400MN-050 Fuji Electric 400A 500V Power Transistor Module

Content last revised on February 27, 2026

1DI400MN-050 Fuji Electric 400A 500V Power Transistor Module | High-Gain Switching Excellence

The 1DI400MN-050 is a high-power NPN Darlington transistor module engineered by Fuji Electric to deliver robust performance in demanding power conversion and motor control environments. Featuring a 500V collector-emitter rating and a substantial 400A continuous collector current capacity, this module serves as a foundational component for systems requiring precise high-current switching with simplified control requirements. By leveraging a Darlington configuration, the 1DI400MN-050 achieves high DC current gain, which allows engineers to drive heavy industrial loads using relatively low base currents, effectively bridging the gap between low-power control logic and high-power execution.

For industrial systems prioritizing high-current handling and simplified drive architectures in 500V platforms, the 1DI400MN-050 is a technically optimized solution. 500V | 400A | $P_c$ 2000W. Key benefits include reduced base-drive complexity and enhanced thermal stability through its isolated mounting base. What is the primary benefit of the 1DI400MN-050's Darlington structure? It provides exceptionally high DC current gain, significantly reducing the complexity and power requirements of the base drive circuit.

Application Scenarios & Value

Achieving System-Level Efficiency in High-Torque Motor Control

The 1DI400MN-050 is specifically utilized in AC/DC motor drives and Uninterruptible Power Supplies (UPS) where high-frequency switching and reliable current conduction are non-negotiable. In heavy-duty industrial applications, such as a large-scale pump system or a conveyor line, the 400A current rating is pivotal for handling the massive inrush currents during startup without risking thermal runaway. Unlike standard bipolar transistors, the high $h_{FE}$ (DC current gain) of the 1DI400MN-050 minimizes the load on the control electronics, allowing for more compact and cost-effective gate driver designs.

In switching power supplies, the module’s ability to handle up to 500V makes it ideal for 240V or 380V rectified lines. The integrated high-speed free-wheeling diode further protects the Darlington pair from inductive kickback, a common challenge in solenoid drives and magnetic brake systems. For engineers designing systems with even higher current demands, the related 1D600A-030 offers an alternative current profile within the same design philosophy. Understanding the nuances of semiconductor selection is critical for long-term system reliability, as detailed in our guide on IGBT vs. MOSFET vs. BJT.

Key Parameter Overview

Decoding the Specs for Enhanced Switching Reliability

To ensure optimal integration, the following parameters define the operational boundaries of the 1DI400MN-050. These values are derived from the official Fuji Electric technical documentation to support precise engineering calculations.

Download the 1DI400MN-050 datasheet for detailed specifications and performance curves to refine your thermal management and switching frequency strategies. Accessing verified data is a prerequisite for professional module selection and system design.

Industry Insights & Strategic Advantage

The Strategic Role of Power Darlington Modules in Legacy & Specialized Systems

While the power electronics industry has moved toward IGBT and SiC technologies for high-frequency applications, the 1DI400MN-050 remains a strategic choice for high-current, low-to-medium frequency switching. Its primary advantage lies in its bipolar conduction mechanism, which provides a lower on-state resistance in specific high-current scenarios compared to earlier generations of field-effect devices. This makes it a staple for maintenance, repair, and overhaul (MRO) of existing industrial infrastructure where the control logic is specifically tuned for BJT/Darlington base-current drive characteristics.

Analytically, the 2000W power dissipation rating of the 1DI400MN-050 suggests a highly efficient thermal path from the silicon to the isolated baseplate. In the context of Industry 4.0, where uptime is a key KPI, the ruggedness of these modules against overcurrent transients is a significant asset. Furthermore, the simplified drive requirements compared to certain CM400HA-24H IGBT modules allow for more robust, noise-immune control signals in electrically "dirty" environments like welding shops or heavy foundry floors.

FAQ

How does the $V_{CE(sat)}$ value of the 1DI400MN-050 affect my thermal design?
The $V_{CE(sat)}$, typically around 2.0V, represents the voltage drop across the transistor when fully turned on. At a continuous current of 400A, this generates approximately 800W of conduction loss. To prevent junction temperatures from exceeding the 150°C limit, high-performance thermal interface materials and active cooling (liquid or forced air) are required to manage this heat dissipation effectively.

Can the 1DI400MN-050 be used in parallel for higher current requirements?
Yes, but with caution. Because BJTs have a negative temperature coefficient for $V_{BE}$, paralleling requires careful current sharing techniques, such as using emitter-ballast resistors or active current balancing circuits. Without these, one module may "hog" the current as it heats up, potentially leading to failure. For designs requiring simplified paralleling, modern IGBT modules may offer a more straightforward positive temperature coefficient path.

The 1DI400MN-050 stands as a testament to Fuji Electric's commitment to high-current power management. Its combination of high DC gain and massive current handling makes it a reliable asset for engineers managing high-torque industrial machinery. As a professional trade partner, we provide the technical data required to support your procurement and engineering evaluation, ensuring your systems operate within the safe operating area of every component.
