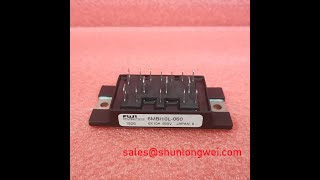

Fuji Electric 6MBI10L-060: Compact 600V/10A IGBT Module for High-Density Power Conversion
Integrated Power Stage for Efficient and Compact Designs
The Fuji Electric 6MBI10L-060 is a highly integrated 6-pack IGBT module designed for engineers developing low-power motor drives, uninterruptible power supplies (UPS), and general-purpose inverters. This module consolidates a complete three-phase inverter bridge into a single, compact package, offering a robust solution that streamlines design complexity and accelerates time-to-market. By leveraging a proven design from Fuji Electric, this module provides a reliable foundation for systems requiring precise control and high efficiency in a constrained footprint.
Key Electrical and Thermal Specifications
Engineered for performance and reliability, the 6MBI10L-060 delivers a balanced feature set for low-power applications. Below is a summary of its critical performance parameters, which are essential for system design and simulation.
| Parameter | Value |
|---|---|
| Max Collector-Emitter Voltage (Vces) | 600V |
| Continuous Collector Current (Ic) @ Tc=80°C | 10A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ Ic=10A, Tj=125°C | 2.7V (Max) |
| Total Power Dissipation (Pc) per IGBT | 65W |
| FWD Forward Voltage (Vf) @ Ie=10A, Tj=125°C | 2.4V (Max) |
| Operating Junction Temperature (Tj) | -40°C to +150°C |
For comprehensive specifications and operational curves, please Download the Datasheet.
Technical Deep Dive: The Engineering Value of Integration
The core advantage of the Fuji Electric 6MBI10L-060 lies in its 6-in-1 configuration. For engineers, this integration translates directly into tangible design benefits. Instead of routing six individual IGBTs and their associated free-wheeling diodes, the module presents a single component with optimized internal connections. This drastically reduces parasitic inductance, which is a common source of voltage overshoot and EMI in high-frequency switching applications. Furthermore, the co-packaged nature ensures matched thermal performance across all switches, simplifying heat sink selection and mounting. The module's low-profile package is specifically designed for high-density PCBs, enabling the development of smaller, more power-dense control units. This approach is a cornerstone of modern power electronics design, where space and manufacturing efficiency are paramount. To delve deeper into the fundamentals of these components, explore our comprehensive guide on IGBT modules.
Application Spotlight: Small Motor and Servo Drives
The 6MBI10L-060 excels in applications where space, reliability, and cost-effectiveness are critical. Its 600V/10A rating makes it an ideal choice for fractional horsepower motor drives, such as those found in industrial automation, HVAC systems, and appliance motors.
Consider the design of a compact servo drive for an automated packaging machine. The engineering team's goal is to minimize the drive's physical volume to allow for installation directly on the machine's robotic arm. By utilizing the 6MBI10L-060, the team can replace a complex discrete component layout with a single, easy-to-mount module. This not only shrinks the PCB size but also centralizes the primary heat source, allowing for a more efficient, single heatsink solution. The result is a smaller, more reliable drive with reduced assembly costs, directly addressing the demands of modern robotics where power density is key to performance. For engineers working on similar systems, our article on the role of IGBTs in robotic servo drives offers further insights.
For systems requiring slightly higher power handling within a similar architecture, the 6MBI30L-060 provides a seamless upgrade path with a 30A current rating in the same 600V class.
Frequently Asked Questions for Design Engineers
- What is the primary benefit of the module's integrated 6-pack configuration?The main benefit is design simplification. It reduces component count, minimizes PCB layout complexity, lowers parasitic inductance for better switching performance, and ensures balanced thermal characteristics across the three-phase bridge, leading to a more reliable and compact final product.
- What are the recommended gate drive conditions for the 6MBI10L-060?For optimal performance, a gate voltage of +15V for turn-on is recommended. While a 0V turn-off is functional, using a negative gate voltage (e.g., -5V to -10V) is best practice to provide a strong defense against dV/dt induced turn-on, especially in noisy environments.
- How does the VCE(sat) of this module impact system efficiency?The VCE(sat) of 2.7V (max at 125°C) is a key factor in calculating conduction losses. Engineers must factor this value into their thermal models to ensure the junction temperature remains within the safe operating area. While not the lowest in the industry, it represents a balanced characteristic for cost-effective, low-power applications where conduction losses are manageable. The technology is part of Fuji Electric's established L-Series or equivalent, known for its robustness.
By offering a complete, tested, and reliable power stage in one component, the Fuji Electric 6MBI10L-060 empowers engineers to focus on system-level innovation rather than the intricacies of power device layout, ultimately creating more efficient and compact solutions.
