6MBI450VY-170 Circuit Protection & Reliability: Calibrating PCB Gate Loop Layout Symmetry

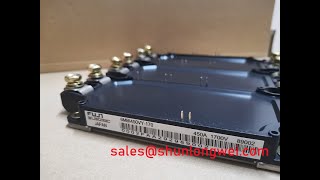

I trace each gate-driver return to its emitter reference before applying switching power, with the DC link isolated and verified discharged. For the 6MBI450VY-170, the first practical question is whether the existing driver board and module terminal arrangement preserve a short, controlled gate-current path. A cold resistance comparison across equivalent channels can expose an obvious discrepancy, but connected driver components can influence the reading; it is a screening step, not proof of switching health.
Design Consideration: shared emitter-path inductance can feed power-current transients into the gate reference. Where the documented terminal arrangement provides a separate auxiliary emitter connection, route the driver return through that connection rather than through the high-current emitter conductor. Do not assume a dedicated Kelvin terminal from the product name alone. Establish the actual terminal functions from the module connection drawing before changing the board or wiring harness.
Compare outgoing gate traces and their associated returns as complete loops. Matching trace length alone does not establish electrical symmetry if one channel crosses a power conductor or returns through a different connector path. Keep gate loops compact, position external damping components near the intended gate connection, and maintain clearance according to the equipment’s working voltage and insulation design. The completed assembly determines the necessary spacing, not the module’s voltage marking alone.
During controlled switching tests, observe gate-emitter voltage at the module terminals with appropriately rated differential instrumentation. Compare channels under equivalent current direction and loading, paying attention to off-state disturbances and ringing after commutation. Probe-loop pickup can resemble a real gate transient, so check measurement placement before modifying the circuit. Fuji Electric’s 7th-Gen X-Series IGBT module information provides manufacturer context for a different generation; it does not establish the gate-drive characteristics or interchangeability of this V-Series part.
6MBI450VY-170 Circuit Protection & Reliability: Calibrating Thermal Stress Alleviation in Bidirectional Operation
Compare commutation waveforms in both power-flow directions before accepting a repaired inverter stage. As a compatibility example, designers evaluating the 6MBI450VY-170 for a utility-scale centralized battery energy storage PCS should examine charging, discharging, and reactive-current operation separately. Reversing active power changes semiconductor loading; reactive current can also produce substantial conduction and switching losses when net active power is small.
Design Consideration: repetitive load changes redistribute losses between switching devices and freewheeling paths. Review current direction, modulation, coolant conditions, and operating dwell together when assessing thermal cycling. A case-temperature observation alone cannot establish junction-temperature swing. Use the applicable thermal characteristics and measured loss conditions to assess the module within the equipment’s cooling arrangement, without assigning an unsupported service-life prediction.
Examine diode reverse recovery during the relevant commutation interval rather than attributing every overshoot to gate resistance. Recovery softness describes how the recovery current decays after its reverse peak; an abrupt decay can excite parasitic inductance and capacitance. No model-specific softness factor is established here. Compare recovery-current shape, collector-emitter overshoot, and ringing under matched test conditions before considering changes to gate damping or an existing snubber.
Snubber placement and loop geometry matter because a remotely connected network may leave the local commutation loop poorly controlled. Component selection should follow measured transient energy and repetitive heating, with system-level emissions testing used to assess EMI performance. This is not an EMC certification claim for the module.
If the equipment includes another switching stage, assess its function separately. The 2MBI200U4H-170 is a related power-device reference for complementary-stage evaluation, not evidence of a particular rectifier arrangement or a matched pairing. Fuji Electric’s RC-IGBT module information describes another device family; its recovery behavior should not be transferred to this model.
6MBI450VY-170 Thermal-Electrical Optimization: Eliminating Thermal Grease Pump-Out Practical Tuning
Inspect the heatsink contact surface and the removed thermal-interface imprint before cleaning away the evidence. Uneven transfer, dry patches, displaced compound, or local contamination can help identify poor contact, but none independently proves thermal grease pump-out. Record the mounting orientation and contact pattern so that the replacement assembly can be compared with the previous installation.
Design Consideration: assess baseplate geometry against the applicable mechanical drawing rather than assuming that every surface must be perfectly flat. A specified profile can differ from damage-induced distortion. Likewise, do not infer a copper baseplate or a particular internal substrate construction from the housing description Fuji Power Module. Check the external mounting interface, seating condition, hole alignment, and heatsink surface without inventing internal material details.
Clean the mating surfaces using a process compatible with the module and thermal-interface material. Remove trapped debris and inspect threaded holes before assembly. Apply the selected compound using its qualified process to obtain continuous coverage without unnecessary excess. A universal grease thickness is not an established specification for this part; the interface material, surface geometry, and manufacturer’s mounting instructions determine the appropriate application method.
Use a calibrated tool and the specified tightening sequence, progressing evenly across the mounting positions instead of fully loading one corner first. Bolt engagement, washers, fastener condition, and terminal supports all affect the assembly. Field Alert: Follow the module’s specified mounting torque and support attached busbars independently rather than pulling them into alignment with the module terminals.
After assembly, compare temperature behavior at equivalent operating points while checking cooling flow and inlet conditions. An improvement after remounting supports further investigation of the thermal interface, but it does not isolate that interface as the sole previous fault. Where temperature remains uneven, inspect phase-current balance, switching behavior, and heatsink contact before increasing clamping force or adding more compound.
Field Diagnostics & Commissioning: Drop-In Retrofit: Tuning Turn-On/Turn-Off in 6MBI450VY-170 Topologies
Compare the original driver circuit with the proposed module connection before reusing its turn-on and turn-off resistors. A matching outline is insufficient for a drop-in decision: terminal assignment, gate-drive requirements, protection behavior, mounting geometry, and thermal performance must also agree. The 1700.0 V and 450.0 A ratings identify important electrical boundaries, not an unconditional operating point across all temperatures and switching conditions.
Engineering Recommendation: evaluate turn-on and turn-off damping separately where the driver supports independent paths. Adjustments influence switching energy, commutation rate, voltage overshoot, and gate disturbance simultaneously. Compare waveforms at controlled operating points, changing one relevant variable at a time. Select the final resistance through measured behavior and driver capability rather than prescribing a universal value for this module.
If the existing board uses a bootstrap-powered high-side driver, inspect its charging path and supply waveform during the most demanding modulation intervals. Capacitance, effective bias-dependent capacitance, charging impedance, leakage, and gate-charge demand affect supply droop. Bootstrap-diode recovery and displacement current can also disturb the supply reference. Establish the board’s actual supply architecture first; bootstrap operation is not a stated feature of the 6MBI450VY-170.
The linked 6MBI180VB-120-50 should be treated as a separate comparison candidate, not a verified direct replacement. A shared manufacturer or six-pack description does not establish electrical or mechanical compatibility. Compare its own ratings, connection drawing, and switching requirements before including it in a substitution assessment.
For protection review, the The 10µs Lifeline Technical Reference offers background on short-circuit response; its title is not a withstand-time specification for this part. Validate fault-detection latency, driver shutdown behavior, and controlled turn-off against the applicable device limits. During staged commissioning, record gate supply, gate-emitter waveform, collector-emitter overshoot, and temperature response, then resolve any abnormal channel behavior before increasing operating stress.
