Mitsubishi AA084VC02: An In-Depth Technical Review of the 8.4-inch Industrial SVGA TFT-LCD
Product Overview: The AA084VC02 Industrial Display
Engineered for Longevity and Performance in Demanding Environments

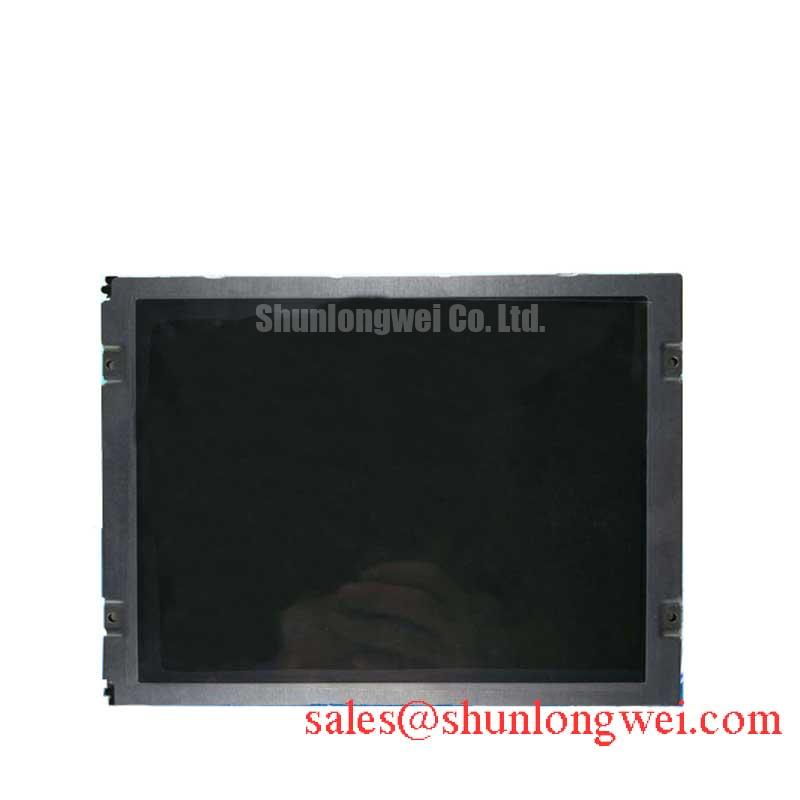

The Mitsubishi AA084VC02 is an 8.4-inch a-Si TFT-LCD module engineered for exceptional durability and visual performance in challenging industrial applications. Its core value proposition is delivering long-term operational reliability where temperature fluctuation and consistent uptime are critical design parameters. Key specifications include an 800x480 WVGA resolution | 450 cd/m² brightness | and an exceptionally wide operating temperature range of -20°C to 70°C. This is achieved through a combination of a long-life CCFL backlight and robust component selection. For system integrators managing legacy equipment, this display provides a direct upgrade path without costly system redesigns. For industrial HMIs requiring proven SVGA compatibility and steadfast performance from -20°C to 70°C, the AA084VC02 is an optimal design choice.
Key Parameter Overview
Decoding the Specs for Enhanced Environmental Reliability
The technical specifications of the AA084VC02 are tailored for industrial integration. The parameters below highlight its capacity for reliable performance under thermal stress and in various ambient lighting conditions.
| Parameter | Specification | Engineering Value |
| Panel Size | 8.4 inches | Compact form factor for space-constrained industrial panels. |
| Resolution | 800(RGB)×480, WVGA | Ensures compatibility with a vast installed base of legacy industrial software and hardware. |
| Luminance | 450 cd/m² (Typ.) | Provides clear readability in typical indoor industrial and control room environments. |
| Contrast Ratio | 600:1 (Typ.) | Delivers sharp distinction between colors and shades, crucial for detailed HMI graphics. |
| Operating Temperature | -20 ~ 70 °C | Facilitates deployment in unconditioned environments, from cold storage to outdoor-adjacent enclosures. |
| Storage Temperature | -20 ~ 70 °C | Ensures component integrity during transport and storage in non-controlled warehouses. |

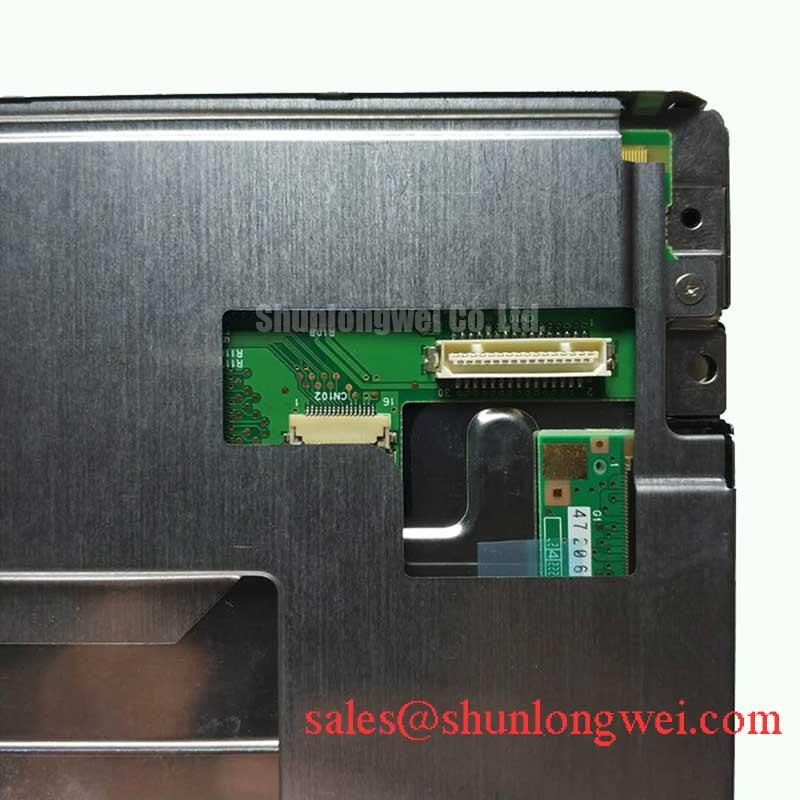

| Signal Interface | CMOS (1 ch, 6-bit), 31 pins | A widely used interface simplifying integration with established industrial motherboards. |
| Backlight Lifetime | 50,000 hours (Typ.) | Dramatically reduces maintenance cycles and total cost of ownership over the product's lifespan. |
Download the AA084VC02 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits for Industrial HMI and Control Systems
The Mitsubishi AA084VC02 is a strategic component for applications where operational continuity is non-negotiable. Its primary value is realized in Human-Machine Interface (HMI) panels for industrial automation, process control systems, and specialized vehicle displays. What is the benefit of its wide operating temperature? It allows for deployment in environments where consumer-grade displays would fail, such as on a factory floor next to heat-generating machinery or in an unheated warehouse. For systems that require higher brightness for more direct light conditions, the related AA084VC03 offers a similar feature set with enhanced luminance.
Consider the challenge of retrofitting a fleet of aging CNC machines. The original CRT or early-generation LCD has failed, and a replacement must fit mechanically and be compatible with the existing 800x480 WVGA video signal. The AA084VC02 serves as an ideal drop-in solution. Its 8.4-inch size and standard resolution prevent the need for costly software redevelopment or mechanical re-tooling. The 50,000-hour backlight life ensures that the new display will likely outlast the remaining service life of the machine itself, representing a sound long-term investment.
Technical Deep Dive
Engineering for Thermal Resilience and Reduced TCO
Two key features of the AA084VC02 directly contribute to its suitability for industrial use: the extended temperature range and the long-life backlight. The ability to operate reliably from -20°C to 70°C is not a trivial feature. It is a result of careful material science and component selection, including liquid crystal fluid with a stable viscosity across temperatures and robust driver ICs that resist thermal-induced failures. This wide range simplifies the thermal management design for the end-product, potentially eliminating the need for dedicated heaters or cooling fans, thereby reducing system complexity, cost, and potential points of failure.
Furthermore, the 50,000-hour backlight rating is a critical factor in calculating the Total Cost of Ownership (TCO). This is equivalent to over 11 years of continuous 24/7 operation. Thinking of backlight life is like considering the tread life of a tire; a higher rating means far fewer costly and disruptive "pit stops" for maintenance over the system's life. For an HMI on a critical manufacturing line or a display in a marine electronics system, avoiding a single maintenance event can justify the initial component choice. This focus on longevity is a core principle discussed in guides covering industrial versus consumer display selection.
Frequently Asked Questions (FAQ)
How does the -20°C to 70°C operating range of the AA084VC02 impact system design?
This wide operating range provides significant design flexibility. It allows engineers to deploy systems in outdoor enclosures, unheated facilities, or vehicles without requiring complex and costly active heating or cooling systems for the display. This reduces the overall Bill of Materials (BOM), power consumption, and potential points of failure, leading to a more robust and cost-effective final product.
What makes the AA084VC02 a good replacement for older 8.4-inch displays in legacy systems?
Its combination of a standard 8.4-inch form factor and native 800x480 VGA resolution makes it highly compatible with equipment designed over the last two decades. The CMOS interface is also common in legacy industrial controllers. This allows for a "drop-in" replacement that minimizes downtime and avoids the engineering costs associated with software and hardware redesign for different resolutions or physical dimensions.
What is the practical implication of the 50,000-hour backlight lifespan?
A 50,000-hour lifespan translates to approximately 11.4 years of continuous, 24/7 operation before the backlight reaches 50% of its initial brightness. For applications running 8-12 hours per day, this lifespan can easily exceed 20 years. This "fit and forget" reliability is critical in reducing the total cost of ownership by eliminating the need for periodic backlight replacement, which is a common failure point in lesser-grade displays.
Strategic Integration
Integrating the AA084VC02 into a product line is a strategic decision to enhance equipment longevity and marketability. Its robust performance profile supports the extension of service life for valuable capital equipment, aligning with industry trends towards sustainability and maximizing return on investment. By providing a reliable and readily available upgrade path, it enables manufacturers to support their products for longer, building customer loyalty and ensuring operational stability in critical sectors like manufacturing, transportation, and marine applications, a market served by display leaders like AUO.
