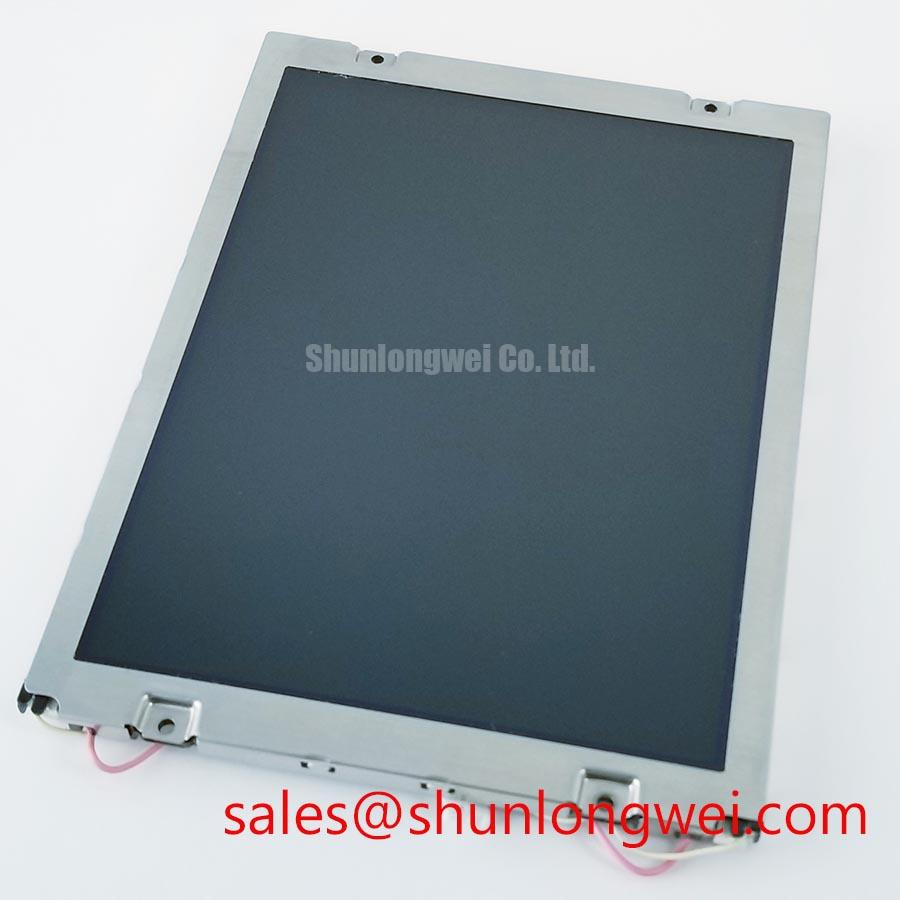

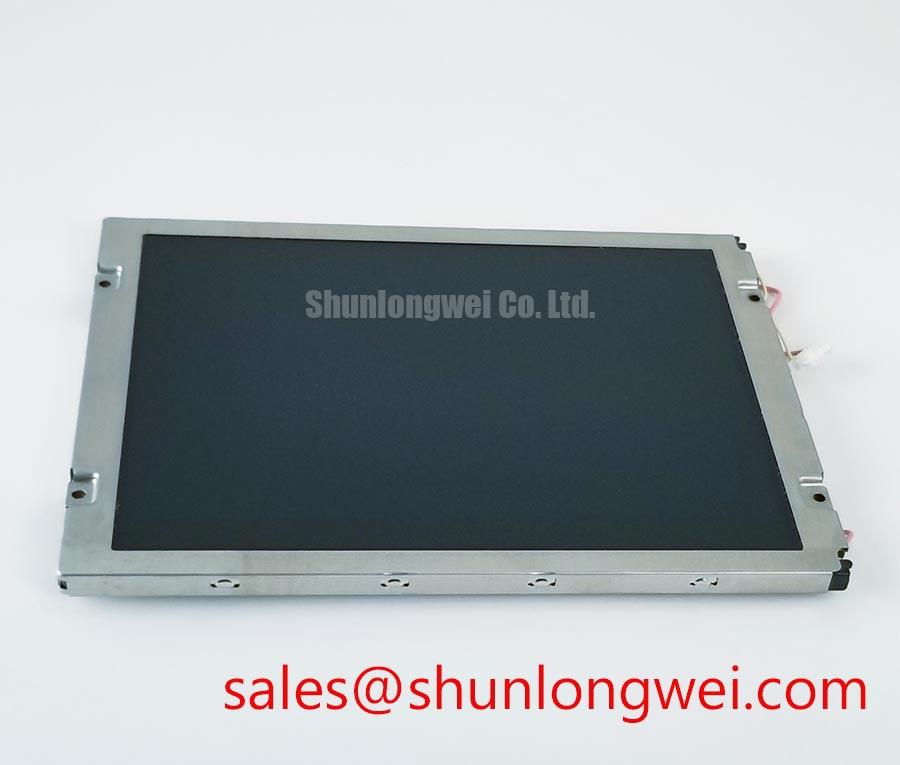

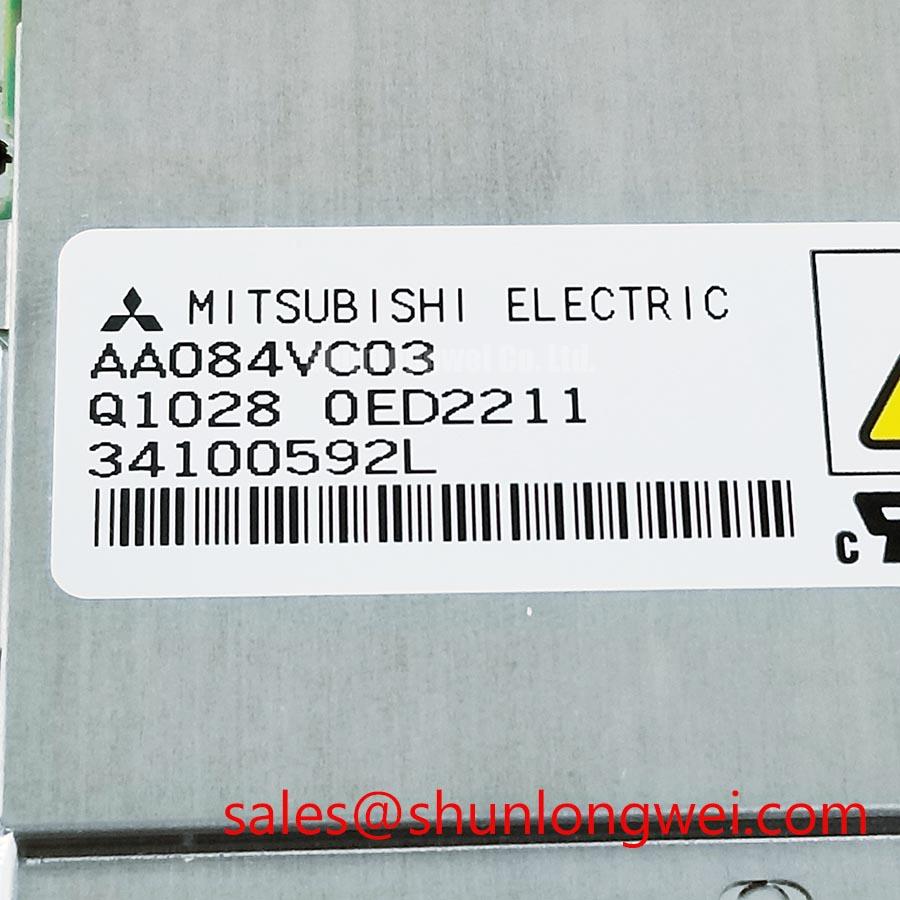

Mitsubishi AA084VC03: An 8.4-inch VGA Display Engineered for Industrial Reliability
The Mitsubishi AA084VC03 is an 8.4-inch a-Si TFT-LCD module designed for exceptional operational lifespan and visual performance in demanding industrial environments. It delivers consistent clarity and durability, making it a strategic component for long-life Human-Machine Interface (HMI) and monitoring systems. For industrial applications requiring robust performance across a wide temperature spectrum, the AA084VC03's thermal resilience and extended backlight life provide a distinct advantage.
Key Parameter Overview
Decoding the Specs for Operational Longevity
The specifications of the Mitsubishi AA084VC03 are tailored for industrial integration, prioritizing reliability and clear visual output. The combination of a wide operating temperature range and a long-life backlight system is central to its value in applications where maintenance is infrequent and uptime is critical.
.highlight-table { width: 100%; border-collapse: collapse; }
.highlight-table th, .highlight-table td { border: 1px solid #dddddd; text-align: left; padding: 8px; }
.highlight-table th { background-color: #f2f2f2; }
.highlight-row { background-color: #e6f7ff; font-weight: bold; }
| Parameter | Specification |
|---|---|
| Screen Size | 8.4 inches |
| Resolution | 640(RGB) x 480 [VGA] |
| Operating Temperature | -20 to 65 °C |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) |
| Interface Type | CMOS (1 ch, 6-bit) |
| Backlight Lifetime | 40,000 hours (Min.) |
| Surface Treatment | Antiglare, Hard coating (3H) |
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Control
The AA084VC03 is optimally suited for environments where temperature fluctuations and ambient light are significant operational challenges. A primary application is in industrial control panels and HMIs for manufacturing floors, outdoor kiosks, and in-vehicle systems.
Consider a control panel for a CNC machine located in a workshop that is not climate-controlled. The ambient temperature can drop near freezing in the winter and become excessively hot in the summer. The AA084VC03's operating temperature range of -20 to 65°C ensures the display remains functional and readable without requiring costly auxiliary heating or cooling systems within the NEMA enclosure. Its 450-nit brightness, combined with an anti-glare surface, ensures that critical process information from the Programmable Logic Controller (PLC) is clearly visible to the operator under bright overhead factory lighting, reducing the potential for error. This focus on reliability makes it a superior choice compared to consumer-grade displays, as explored in our guide on industrial vs. consumer displays.
For systems that may require alternative configurations or slightly different performance characteristics, the related AA084VC02 and AA084VC04 models offer variations within the same form factor.
Frequently Asked Questions (FAQ)
What is the primary engineering benefit of the 40,000-hour backlight lifetime?
The 40,000-hour minimum backlight lifetime translates to over 4.5 years of continuous, 24/7 operation. For an industrial HMI or monitoring device intended to be in service for a decade or more, this significantly reduces total cost of ownership (TCO) by minimizing the need for maintenance cycles to replace the backlight unit.
How does the -20°C to 65°C operating temperature range impact system design?
This wide range simplifies thermal management design for the overall system. Engineers can deploy equipment with the AA084VC03 in unheated outdoor enclosures or in proximity to heat-generating machinery without designing complex and costly environmental control systems, ensuring operational reliability from cold starts to peak heat conditions.
Is the AA084VC03 suitable for use in high ambient light?
Yes. The combination of 450 cd/m² brightness and an effective anti-glare surface treatment ensures good readability under typical indoor industrial and moderately bright outdoor conditions. For direct sunlight applications, a display with higher brightness would be recommended, a topic we cover in the engineer's guide to sunlight-readable HMIs.
What does a "Normally White" display mode signify?
Normally White is a characteristic of the TN (Twisted Nematic) TFT-LCD technology used in this panel. It means that in the absence of voltage, the pixels are transparent (appearing white). In the event of a total power failure to a pixel, it will fail to a white state rather than black, which can be a desirable characteristic in certain user interface designs.
Technical Deep Dive
Engineering for Reliability: Backlight and Thermal Design

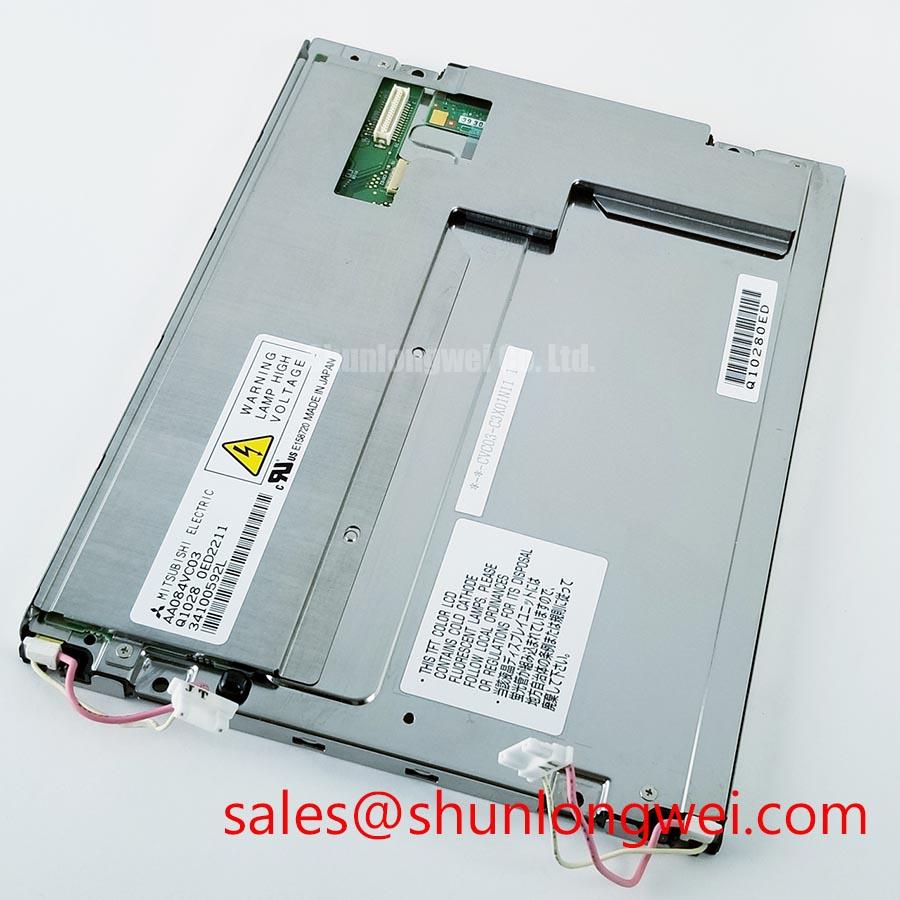

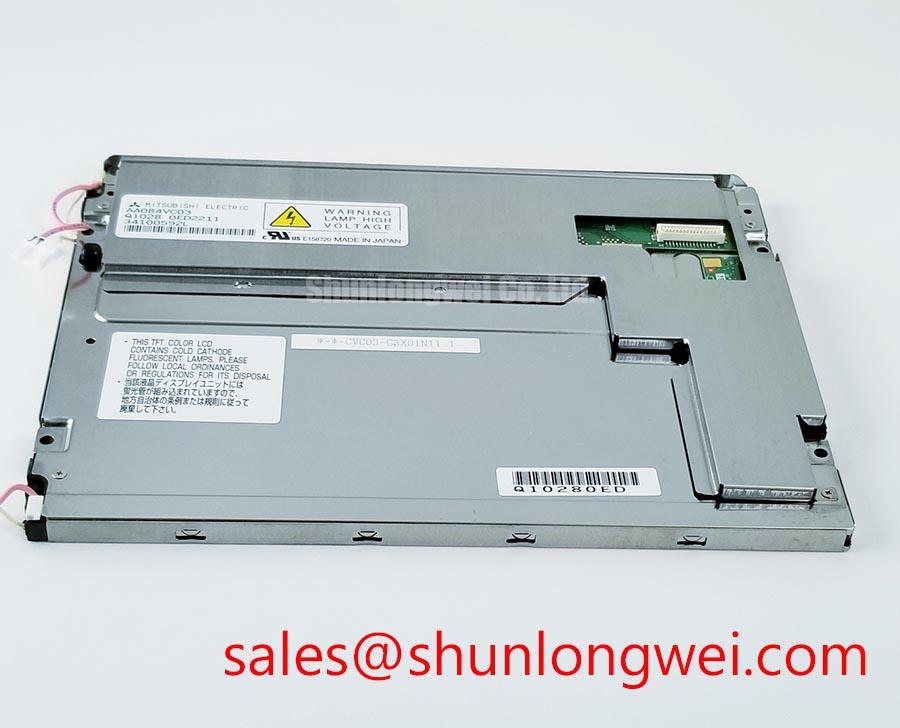

The long-term reliability of the Mitsubishi AA084VC03 stems from deliberate design choices in its core components. The CCFL (Cold Cathode Fluorescent Lamp) backlight system is engineered for longevity, rated for a minimum of 40,000 hours before reaching 50% of its initial brightness. This is akin to a car's engine being designed to run reliably for hundreds of thousands of miles; it is a fundamental design parameter for industrial-grade service. Furthermore, the backlight is replaceable, a critical feature for extending the service life of the host equipment beyond the initial lifespan of the illumination source. The materials used in the liquid crystal and polarizers are specifically selected to maintain stable optical properties across the wide temperature range, preventing image degradation or response time issues that can plague lesser displays in extreme cold or heat.
Industry Insights & Strategic Advantage
Reducing Total Cost of Ownership in Critical Systems
In the context of industrial automation and medical devices, the initial component cost is only a fraction of the total cost of ownership. The true expense includes installation, maintenance, and the cost of downtime. The AA084VC03 provides a strategic advantage by directly addressing these long-term costs. Its robust build and extended component lifetimes align with the goals of Industry 4.0, where system reliability and predictive maintenance are key. By integrating a display with a 40,000-hour backlight, system integrators can design products with longer service intervals and greater field reliability, enhancing brand reputation and customer satisfaction. This focus on durability is a cornerstone of products from established manufacturers like Mitsubishi, ensuring that components meet the rigorous demands of their intended applications.
Strategic Component Selection
Selecting the AA084VC03 is a strategic decision for engineering teams developing equipment for industrial control, medical imaging, and transportation systems. Its proven design provides a stable, reliable, and long-lasting display platform, mitigating risks associated with component obsolescence and field failures. This allows product managers and system architects to focus on core application development, confident in the performance of the visual interface.
