Aluminum Heat Spreader Sizing and Thermal Interface Placement Along Narrow Display Edges

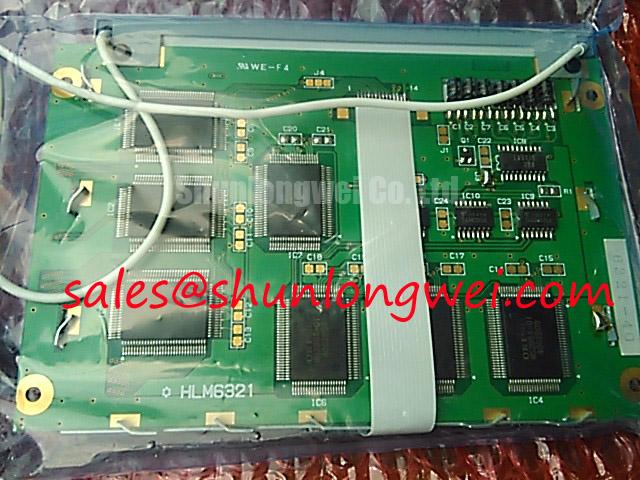

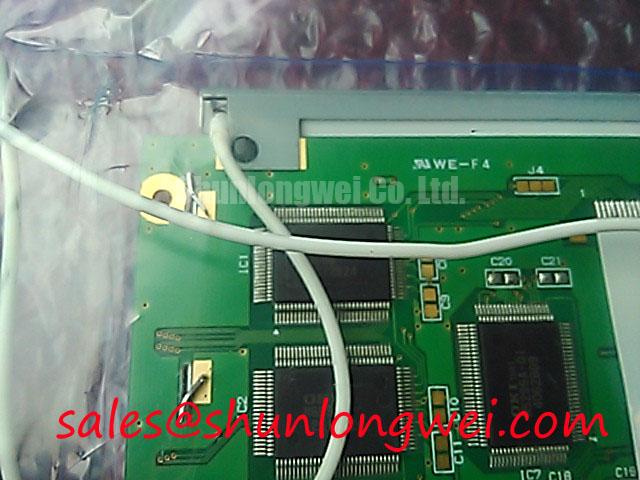

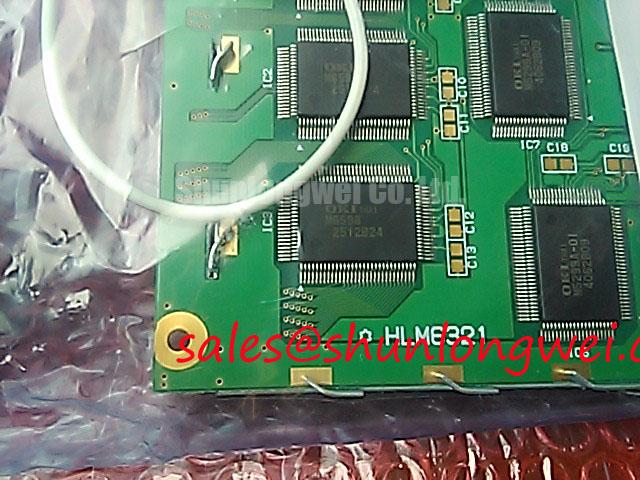

Start a dark-screen service check by inspecting the display edge, mounting frame, and heat path before changing the panel. The Hosiden HLM6321 is identified as a TFT-LCD active matrix color display module, but the supplied product record does not establish a specific backlight type, LED lifetime curve, optical film construction, or approved thermal interface arrangement. Those details must not be assumed during a replacement assessment.

For an industrial HMI, heat can accumulate around narrow display edges when the metal bezel, controller board, and backlight assembly have unequal contact pressure. A practical Design Consideration is to check whether the replacement panel sits flat in the original frame and whether any spreader rail, gasket, or retaining bracket touches the active viewing area. Uneven pressure can create local luminance variation or mechanical stress even when the panel powers correctly.

Do not use a generic MTBF value as proof of the HLM6321 backlight lifetime. A 50,000-hour half-brightness figure, for example, would require a manufacturer test definition, operating temperature, drive current, and measurement condition. When the original machine documentation specifies an LED constant-current driver, the service engineer should compare its output behavior with the replacement panel requirements rather than automatically reusing the driver.

In CNC operator panels and robot teach pendants, examine the edge clearance after the panel is seated. The display should not be forced against a distorted bezel, cable clamp, or rear cover. If a thermal spreader is required by the host assembly, its contact area, insulation method, and mechanical pressure remain system-level decisions. The relevant validation is a powered thermal check across the viewing area and frame, followed by a visual inspection for brightness nonuniformity.

For a same-class replacement review, engineers can place LQ070Y3LW01 beside the HLM6321 in a mechanical comparison sheet. The comparison should cover cutout dimensions, connector position, active area, mounting points, optical stack, and controller compatibility. A similar product category alone does not establish interchangeability.

Suppressing Pixel Jitter and Horizontal White Lines Induced by Adjacent Motor Drives

When pixel jitter or horizontal white bands appear near a variable-frequency motor drive, first separate the display fault from the cable and grounding path. Observe whether the disturbance changes with motor acceleration, cabinet-door position, cable movement, or display brightness. This pattern-based check is more useful than replacing the LCD before examining the signal route.

The HLM6321 product record does not define an LVDS pinout, TTL interface, pixel clock, cable length, shielding construction, or common-mode tolerance. The system integrator should therefore verify the original panel documentation and controller output before assigning a signal standard to this model. If the host uses a differential display link, maintain the pair geometry specified by that host and route it away from switching nodes and motor cable bundles.

A 360-degree cable shield may be considered where the enclosure and connector system are designed to support a continuous high-frequency return path. This is a Design Consideration, not a confirmed HLM6321 construction feature. Termination, chassis bonding, and ferrite placement should be selected from measured noise behavior and the controller manufacturer’s interface requirements. Adding a ferrite without checking its effect on the differential pair can reduce one interference path while disturbing signal integrity.

For a suspected impedance mismatch, compare the affected signal with a known-good path using an oscilloscope and suitable probing technique. A nominal 100-ohm differential environment is common in some display links, but it must be treated as a host-interface requirement rather than an HLM6321 specification. Check overshoot, ringing, duty-cycle distortion, and clock stability at the panel connector while the adjacent drive changes state.

Ambient light can make a noise band appear less or more severe during inspection. Contrast performance, anti-glare treatment, and sunlight readability require panel-specific optical data. The HLM6321 record supplied here does not confirm a contrast ratio at 50,000 lux or a particular anti-glare coating, so those characteristics should be checked against the original machine panel documentation and the replacement sample under the actual enclosure lighting.

⚠️ Field Alert: Power down the controller and discharge the relevant supply before disconnecting or reconnecting the display cable, because live insertion can expose signal contacts to unintended electrical stress.

Polarizer Durability and Optical Retardation Film Inspection Under Direct Industrial Lighting

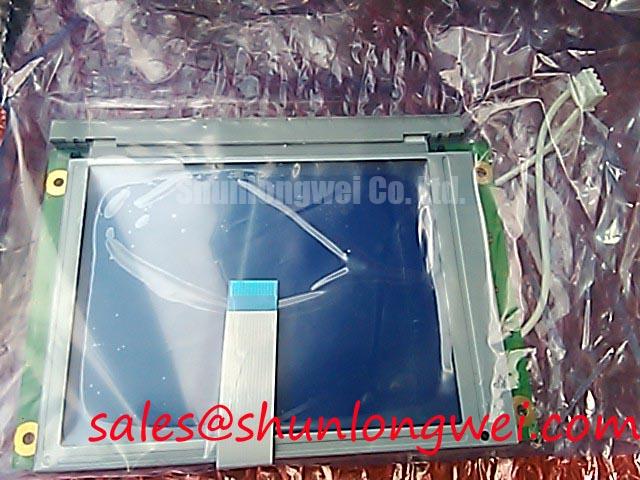

Inspect the HLM6321 viewing surface at several angles while the panel displays a white, gray, and black test image. Look for pressure marks, circular Newton-ring patterns, uneven haze, polarizer scratches, and reflections from the protective window. These observations help distinguish a surface or optical-stack issue from a graphics signal fault.

The product record identifies active matrix TFT color display technology but does not specify TN, IPS, MVA, viewing-angle symmetry, retardation-film construction, or anti-glare etching. Do not assign the model a claimed 85° viewing cone or a particular grayscale behavior without a corresponding technical sheet. For replacement approval, compare the candidate panel and the removed unit from the operator’s normal viewing position and from the required side angles.

Direct industrial lighting can expose glare, low black-level separation, and surface contamination that remain hidden on a workbench. Clean the protective surface using the equipment maker’s approved method, then repeat the same image test with the cabinet lighting active. A change in perceived contrast does not by itself prove panel damage; it may involve the cover glass, ambient reflections, graphics settings, or polarizer condition.

Cold operation deserves a separate check. Liquid-crystal response can change as temperature falls, producing visible gray-to-gray smearing or delayed transitions. The HLM6321 product record does not specify a guaranteed operating window, response-time curve, or heater-strip interface. If the original enclosure uses controlled warming, the integrator should verify the heater’s mechanical clearance, sensor strategy, and power sequencing against the original panel assembly rather than treating a heater as a standard accessory.

For background on TFT cell operation and viewing behavior, consult Thin-Film-Transistor Liquid-Crystal Display technology. Industrial panel comparisons can also be cross-checked against the product information published by Winstar Industrial TFT-LCD and OLED Display Modules.

High-Voltage Striking Potential and Secondary Coil Insulation Testing

Before applying any high-voltage backlight test, identify the actual backlight architecture in the original HMI. The supplied HLM6321 information confirms a TFT-LCD active matrix color display module, but it does not confirm CCFL tubes, an inverter transformer, LED strings, constant-current input, PWM dimming, or an insulation rating. Applying a 1,500 to 1,650 Vrms ignition test to an unconfirmed assembly would be an unsafe and technically unsupported assumption.

If the removed panel uses a CCFL inverter, the service procedure must follow the inverter manufacturer’s specified isolation, probe category, discharge method, and test points. The secondary circuit should be assessed only with equipment rated for the actual waveform and voltage. Acoustic buzz, intermittent ignition, or a dark display can involve the inverter, lamp, cable, connector, supply sequencing, or panel assembly, so the diagnosis should compare the complete backlight chain.

If the host uses an LED backlight, its driver output, enable signal, dimming method, current regulation, and fault response must be matched to the replacement assembly documentation. Do not infer a 1,000:1 PWM dimming capability or a greater-than-50,000-hour half-life from the model name. Those figures require manufacturer test conditions and cannot be transferred from another display family.

Signal timing should be checked at the panel interface after the power rails have reached their intended state. Confirm the controller’s clock quality, data hold behavior, reset sequence, and enable timing against the original system specification. If the panel uses LVDS, the engineer should validate pair polarity, lane order, termination, and common-mode behavior at the connector. If it uses another interface, the same principle applies: the controller and panel must share a documented electrical and timing definition.

When reviewing a broader display chain, LQ065T5AR05 can be considered as a separate display solution for topology comparison, not as an automatic substitute. For enclosure-level testing methods and industrial TFT selection context, refer to The Ultimate Guide to Industrial TFT LCD Technology.

For CNC operator panels and robot teach pendants, the final acceptance check should reproduce the real cable route, enclosure lighting, operator viewing angle, controller startup sequence, and nearby drive activity. That controlled comparison provides a more reliable replacement decision than matching the LCD category alone.
