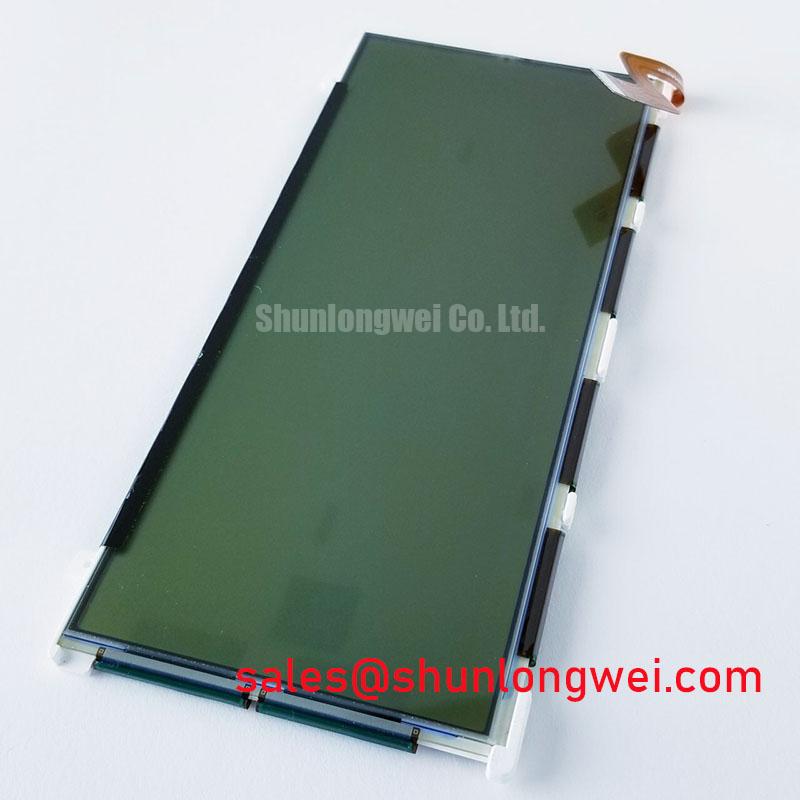

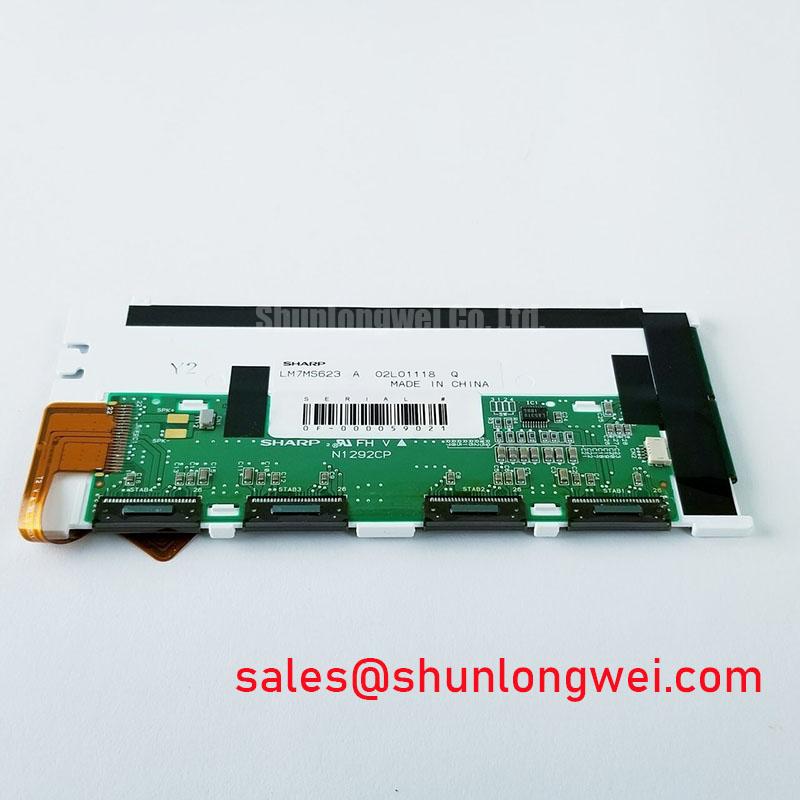

Sharp LM7MS623 | Robust 7.2" VGA STN Display for Legacy Industrial Systems
The Sharp LM7MS623 is a 7.2-inch F-STN (Film-compensated Super-twisted Nematic) monochrome display engineered for exceptional longevity and performance in established industrial, medical, and test equipment. While modern display technologies evolve, the LM7MS623 remains a critical component for maintaining and extending the life of mission-critical systems where reliability and form-fit-function compatibility are paramount.

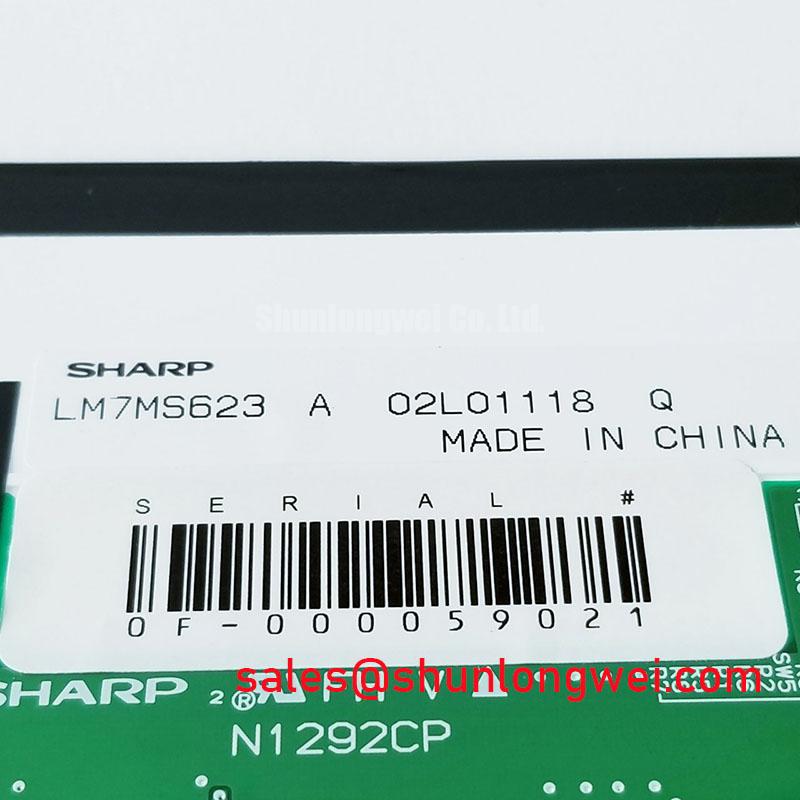

- Model: LM7MS623
- Technology: 7.2-inch F-STN Monochrome LCD
- Resolution: 640 x 480 (VGA)
- Key Feature: Transflective properties for superior readability in both high-ambient and low-light conditions.
- Primary Application: Drop-in replacement and service for legacy HMI panels, CNC controllers, and medical monitoring devices.
Technical Deep Dive: Engineering for Readability and Reliability
Two core technologies define the enduring value of the Sharp LM7MS623. Understanding them is key to appreciating its role in maintaining operational continuity.
First is its F-STN Transflective Display Technology. Unlike purely transmissive displays that wash out in bright light, or purely reflective displays that are unreadable in the dark, the LM7MS623 excels in both environments. In direct sunlight or bright factory lighting, the transflective layer reflects ambient light back through the LCD cell, creating a clear, high-contrast image without relying on the backlight. In low-light conditions, the integrated CCFL (Cold Cathode Fluorescent Lamp) backlight activates, providing crisp, illuminated visuals. This dual-mode operation is essential for devices used in variable lighting, from portable field instruments to factory floor terminals.
Second is the Cold Cathode Fluorescent Lamp (CCFL) Backlight. While many modern displays have transitioned to LED, the CCFL in this module was chosen for its proven stability and long operational lifespan, critical metrics for industrial hardware. It provides a stable and uniform light output, ensuring consistent readability across the entire screen—a crucial factor for detailed graphical user interfaces or complex data readouts. While requiring an external inverter, this architecture was the gold standard for rugged, long-life displays for many years and is perfectly matched to the power systems of the equipment it was designed for. For a broader overview of display technologies, explore The Ultimate Guide to TFT-LCD.
Application Focus: The Strategic Value of a Legacy Component
The primary role of the LM7MS623 today is not in new product design, but in the strategic maintenance of high-value, long-lifecycle equipment. Its continued availability is a significant advantage for engineers and maintenance managers in several key sectors:
- Industrial Automation: For CNC machines, PLC controllers, and HMI panels from the 1990s and 2000s, the LM7MS623 often serves as a direct, plug-and-play replacement. This avoids the extensive—and expensive—process of re-engineering the entire control system, rewriting software drivers, and recertifying the machine.
- Medical Devices: In patient monitors, diagnostic equipment, and ventilators, component recertification is a rigorous and costly process. Using an identical replacement part like the LM7MS623 ensures that the device remains within its original FDA or CE certification, minimizing downtime and regulatory hurdles.
- Test and Measurement Equipment: High-precision oscilloscopes, spectrum analyzers, and other benchtop instruments were designed around the specific timing and interface of displays like the LM7MS623. A modern display would require a signal conversion board and firmware adjustments, introducing potential points of failure and calibration drift.
Key Technical Specifications
The following table provides a quick-reference overview of the LM7MS623's core parameters. For complete electrical and mechanical specifications, it is highly recommended to review the official datasheet.
| Parameter | Value |
|---|---|
| Manufacturer | Sharp |
| Screen Size | 7.2 inch (18 cm) |
| Display Technology | Monochrome F-STN LCD |
| Resolution | 640 x 480 pixels (VGA) |
| Viewing Area | 147.2(W) x 110.4(H) mm |
| Pixel Pitch | 0.23(W) x 0.23(H) mm |
| Display Mode | Transflective |
| Backlight | 1 x CCFL with inverter |
| Interface | 4-bit Parallel Digital |
For comprehensive details, download the full LM7MS623 datasheet here.
Frequently Asked Questions (FAQ) for Engineers
Q1: Why choose the LM7MS623 over attempting a modern TFT-LCD retrofit?
A: The primary reason is to eliminate engineering risk and cost. A modern TFT-LCD typically has a different interface (e.g., LVDS vs. parallel), different power requirements, and different physical dimensions. A retrofit would require developing custom driver electronics, modifying the housing, and extensive software testing. For certified equipment, this would trigger a full recertification process. The LM7MS623 is a form, fit, and function replacement that preserves the system's original integrity.
Q2: What are the main considerations when replacing a faulty LM7MS623?
A: The most critical aspect is handling the CCFL and its associated high-voltage inverter carefully. Ensure the system is fully powered down. The flat flexible cables (FFCs) that connect the display must also be handled with care to avoid damage. It's a direct replacement, but precision and adherence to anti-static procedures are essential for a successful repair.
For support in sourcing this or other industrial LCD displays for your specific application, please do not hesitate to contact our technical team for expert guidance.
