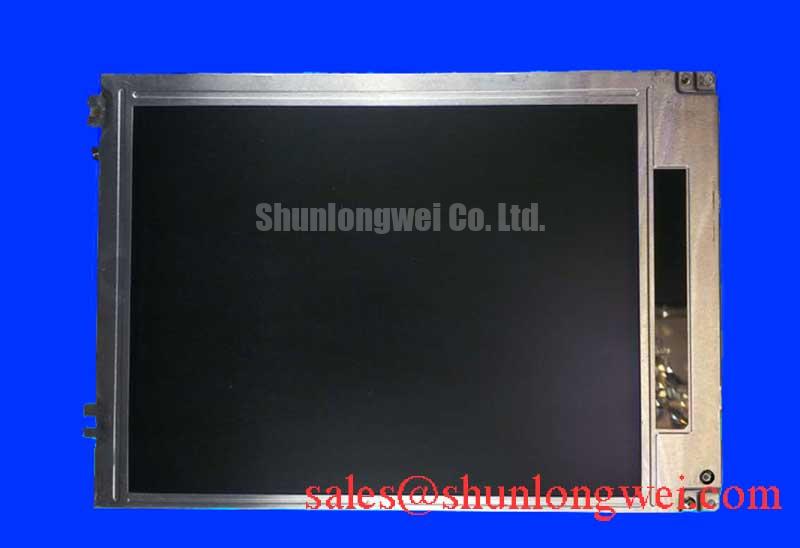

Sharp LQ9D341 | A Proven VGA TFT-LCD for Legacy Industrial Systems
The Sharp LQ9D341 is an 8.4-inch amorphous silicon TFT-LCD module engineered specifically for applications demanding long-term reliability and stable performance. While new designs gravitate towards higher resolutions and LED backlighting, the LQ9D341 holds a critical position in the market as a premier drop-in replacement for a vast installed base of industrial, medical, and test equipment. Its design philosophy prioritizes consistency and compatibility, ensuring that valuable legacy systems can be maintained for years to come without costly and complex redesigns.
- Diagonal Size: 8.4 inch (21 cm)
- Native Resolution: 640 x 480 VGA
- Display Technology: Amorphous Silicon (a-Si) TFT Active Matrix
- Backlight System: Cold Cathode Fluorescent Lamp (CCFL) for direct compatibility with legacy inverters
- Interface: 18-bit RGB Parallel Interface
- Operational Focus: High reliability and long-term availability for system maintenance and repair
Key Parameters Overview
This table provides a snapshot of the critical performance characteristics of the Sharp LQ9D341. These specifications are tailored for seamless integration into systems originally designed for this class of display.
| Parameter | Value |
|---|---|
| Panel Size | 8.4 inches |
| Resolution | 640(RGB) x 480 [VGA] |
| Display Technology | a-Si TFT-LCD, Normally White, Transmissive |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) |
| Interface Type | 18-bit Parallel RGB (6-bit/color) |
| Backlight | Single CCFL with integrated inverter connector |
| Operating Temperature | -10 ~ 65 °C |
| Storage Temperature | -30 ~ 70 °C |
For a comprehensive list of electrical and optical characteristics, download the official datasheet.
Application Scenarios Where Compatibility is Paramount
The true value of the Sharp LQ9D341 lies in its ability to extend the life of capital-intensive equipment. Replacing a failed display with an identical component eliminates the need for software driver updates, mechanical modifications, or electrical re-engineering of the backlight inverter system.
- Industrial HMI Panels and CNC Machinery: Many machine controllers and operator interfaces from the past two decades were built around VGA-resolution CCFL displays. The LQ9D341 serves as a direct, form-fit-function replacement, minimizing machine downtime and avoiding the significant expense of a full controller upgrade.
- Medical Diagnostic Equipment: Legacy patient monitors, ultrasound systems, and laboratory analyzers often require components that match the original system's validation and certification. Using a proven panel like the LQ9D341 ensures that the device's optical and electrical performance remains within its specified, certified parameters.
- Test and Measurement Instruments: High-value equipment such as spectrum analyzers, network analyzers, and advanced oscilloscopes have service lives exceeding a decade. A screen failure should not render the instrument obsolete. This display provides a factory-equivalent repair solution, preserving the instrument's functionality and value.
Technical Deep Dive: The Engineering Rationale
The design choices of the Sharp LQ9D341 are rooted in the industrial standards of its time, which now serve as a cornerstone of its replacement value.
The display is built upon a foundation of a-Si TFT (Amorphous Silicon) technology. This mature process technology is renowned for its stability and reliability over extended periods and across a wide range of industrial operating temperatures. Its predictable performance makes it a trusted choice for applications where consistency is more critical than cutting-edge speed or pixel density. You can explore the fundamentals of this technology in our ultimate guide to TFT-LCD.
Furthermore, the integrated Cold Cathode Fluorescent Lamp (CCFL) backlight is a key compatibility feature. While modern displays utilize LED backlights, retrofitting an LED panel into a system designed for CCFL requires a new driver board (inverter) and modifications to power and control signals. The LQ9D341's native CCFL design connects directly to the existing high-voltage inverter, making the repair process a simple plug-and-play operation for technicians.
Strategic Selection Guidance
Choosing the LQ9D341 is a strategic decision focused on asset management and operational continuity. For maintenance, repair, and overhaul (MRO) operations, it is often the most cost-effective and lowest-risk solution.
When compared to a modern 8.4-inch display like the AUO G084SN05 V9, which offers SVGA resolution and an LED backlight, the trade-offs become clear. The G084SN05 V9 is superior for new designs, providing higher brightness, lower power consumption, and a longer backlight lifespan. However, integrating it into a system designed for the LQ9D341 would require engineering effort. The Sharp LQ9D341 is the optimal choice when the primary goal is a fast, seamless, and guaranteed-compatible repair.
