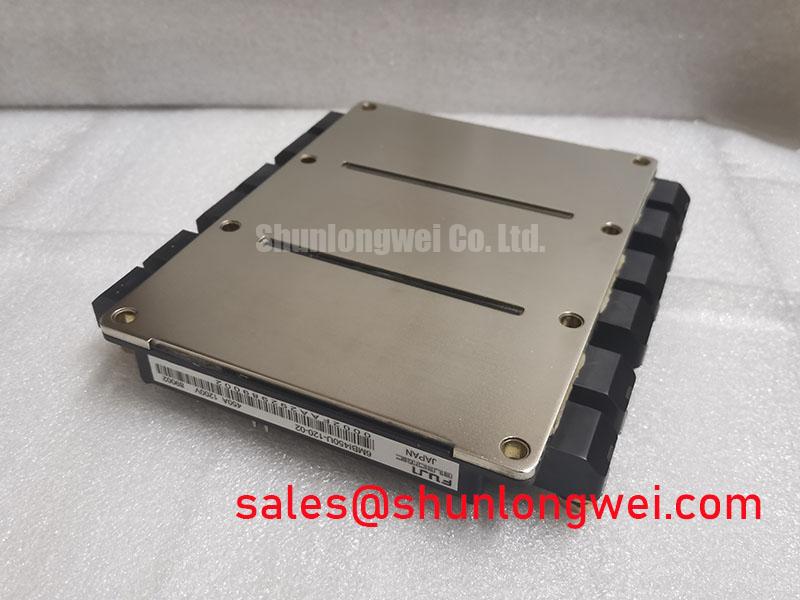

## Fuji Electric 6MBI450U-120-20 | High-Power 6-Pack IGBT for Demanding Inverter Applications
The Fuji Electric 6MBI450U-120-20 is a high-performance 1200V, 450A 6-pack IGBT module engineered for high-reliability, three-phase power conversion systems. Integrating six IGBTs and six free-wheeling diodes (FWDs) in a single compact package, this module provides the power density and thermal efficiency required for modern industrial applications. It is specifically designed to minimize losses and maximize operational lifespan in challenging electrical and thermal environments.
- High Current Capability: Rated for 450A continuous collector current, making it ideal for high-power motor drives and inverters.
- Optimized for Low Loss: Utilizes Fuji's advanced trench gate and field-stop (FS) technology to achieve a low collector-emitter saturation voltage (VCE(sat)).
- Integrated Three-Phase Bridge: The 6-in-1 configuration simplifies inverter topology, reducing assembly complexity, component count, and overall system size.
- Enhanced Thermal Performance: Built on a copper baseplate with an AlN substrate, ensuring excellent heat dissipation and superior reliability under heavy thermal cycling.
Key Parameter Overview
For engineers requiring a quick assessment, the following table summarizes the critical electrical and thermal characteristics of the 6MBI450U-120-20. For a complete set of specifications and performance curves, you can download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C) @ T_C=80°C | 450 A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) @ I_C=450A | 1.70 V (Typ.) / 2.20 V (Max.) |
| Package Type | 62MM-1 |
| Maximum Junction Temperature (T_jmax) | 175 °C |
| Isolation Voltage (V_isol) | 2500 V (AC, 1 minute) |
Technical Deep Dive: Efficiency and Robustness
The engineering excellence of the Fuji Electric 6MBI450U-120-20 is rooted in its silicon and package design. The module leverages an optimized trench gate structure, a hallmark of modern Fuji Electric IGBTs. This technology significantly lowers the on-state voltage drop, or V_CE(sat). A typical V_CE(sat) of just 1.70V at its nominal 450A rating directly translates to reduced conduction losses. For a system designer, this means less heat to manage, allowing for smaller heatsinks, higher power density, and ultimately, lower operational costs through improved energy efficiency.
Beyond electrical efficiency, the module's mechanical construction is engineered for long-term reliability. The robust 62MM standard industrial package is designed for superior thermal management. The low thermal resistance from junction to case (Rth(j-c)) ensures that heat generated within the silicon dice is efficiently transferred to the heatsink. This capability is critical for applications experiencing heavy load cycles, as it enhances the module's power cycling capability and prevents premature failure due to thermal fatigue.
Application Scenarios and Value Proposition
The 6-in-1 topology and high current rating make the 6MBI450U-120-20 a powerhouse for a range of demanding applications:
- Industrial Motor Drives: In high-horsepower Variable Frequency Drives (VFDs) and servo drives, this module provides the precise and powerful control needed for large AC motors. Its robustness ensures dependable operation in harsh factory environments, powering everything from conveyors to industrial automation systems.
- Renewable Energy Systems: For utility-scale solar and wind power inverters, efficiency and reliability are paramount. The low V_CE(sat) of this IGBT minimizes energy loss during DC-to-AC conversion, maximizing the power delivered to the grid. Its rugged design withstands the environmental stresses common in these installations.
- Uninterruptible Power Supplies (UPS): In large commercial and data center UPS systems, the 6MBI450U-120-20 offers a compact solution for building reliable, high-capacity three-phase inverters. Its ability to handle high currents ensures seamless power delivery during utility outages, protecting critical infrastructure.
Expert Answers to Common Questions (FAQ)
Q1: Can the 6MBI450U-120-20 be paralleled for higher power output?
A: While this module is already rated for a very high current, paralleling is technically feasible for applications exceeding its 450A rating. However, successful paralleling requires careful engineering. Key considerations include ensuring symmetrical layout for balanced current sharing, using IGBTs from the same production batch to match V_CE(sat) and gate threshold characteristics, and implementing individual gate resistors for each module to dampen potential oscillations. For applications requiring significantly more power, exploring a higher-current single module from Fuji's portfolio might be a more robust solution.
Q2: What are the primary considerations for the gate drive circuit for this module?
A: Driving a 450A, 1200V IGBT module effectively is critical for both performance and safety. The gate drive circuit must be capable of supplying sufficient peak current to charge and discharge the gate capacitance quickly, minimizing switching losses. A negative gate voltage (e.g., -8V to -15V) during the off-state is highly recommended to provide strong immunity against dv/dt-induced turn-on, which can lead to shoot-through failures. For more details on this topic, review our guide on robust gate drive design. If your design requires assistance, please contact our technical team for application support.
