How to Test an IGBT Module with a Multimeter: A Practical Field Guide (2024 Update)

In the world of power electronics, when a high-power system like a variable frequency drive (VFD), solar inverter, or industrial welder goes down, the Insulated Gate Bipolar Transistor (IGBT) module is often the primary suspect. A catastrophic failure here can bring an entire production line to a halt. Before you rush to order a costly replacement, a quick, reliable field test using a standard multimeter can confirm your diagnosis, saving you time, money, and potential missteps. This guide provides a step-by-step procedure for maintenance engineers and technicians to confidently determine if an IGBT module is good or bad.

Before You Begin: Safety First and Essential Tools

Safety is non-negotiable. High-power systems contain large capacitors that can store a lethal charge long after the power is disconnected. Always assume the system is live until you’ve verified otherwise.

• Disconnect and Lockout/Tagout: Completely de-energize the equipment from the main power source and follow proper lockout/tagout procedures.
• Discharge DC Bus Capacitors: Use a properly rated resistor to safely discharge the main DC bus capacitors. Verify with your multimeter in DC voltage mode that the voltage across the bus terminals is zero before proceeding.
• Electrostatic Discharge (ESD) Protection: IGBTs, particularly their gate terminals, are sensitive to ESD. Use an antistatic wrist strap connected to a proper grounding point.
• Isolate the Module: For the most accurate results, disconnect the main bus bars (Collector and Emitter) and gate control wires from the IGBT module.

Your Toolkit:

1. Digital Multimeter (DMM): The key requirement is a reliable DMM with a Diode Test function. This mode is essential for the tests.
2. IGBT Module Datasheet: Every module is different. Have the datasheet for your specific model (e.g., a FF450R12KE4) on hand. It will show you the pinout (Collector, Emitter, Gate) and the internal schematic.
3. Basic Hand Tools: Screwdrivers or wrenches to disconnect the module terminals.

Understanding the Basics: What’s Inside an IGBT Module?

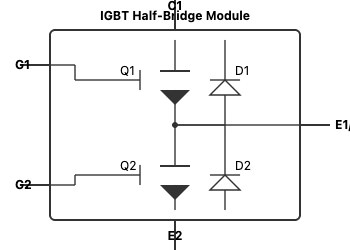

To test an IGBT module effectively, you must understand that you’re not just testing a single component. An IGBT module typically contains multiple IGBTs and, critically, an anti-parallel Freewheeling Diode (FWD) across each one. The IGBT acts as the switch, and the FWD provides a path for inductive current when the IGBT turns off, protecting it from voltage spikes.

A common configuration is a half-bridge, which includes two IGBT/FWD pairs. The multimeter test involves checking both of these internal components separately.

This internal structure means a failure can occur in the IGBT switch itself, the freewheeling diode, or both. Our testing procedure will systematically check each part.

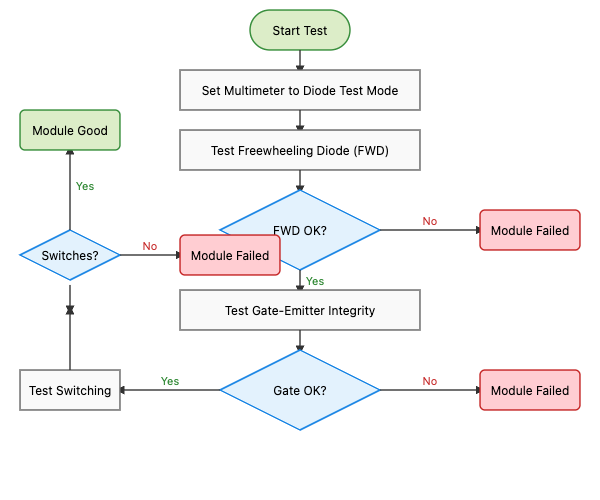

The Step-by-Step Multimeter Test Procedure

With your module safely isolated and your DMM ready, you can begin the test. Set your multimeter to the Diode Test mode. This setting applies a small test voltage and displays the forward voltage drop across a semiconductor junction.

Step 1: Testing the Freewheeling Diode (FWD)

The FWD is the easiest component to test and a very common point of failure. We are looking for a standard diode behavior.

• Forward Bias Test: Place the red (+) probe on the Emitter (E) terminal and the black (-) probe on the Collector (C) terminal.
• Expected Reading (Good Diode): You should see a voltage drop reading between 0.3V and 0.7V. The exact value can vary based on the module’s technology and rating but should be within this typical range.
• Reverse Bias Test: Swap the probes. Place the black (-) probe on the Emitter (E) and the red (+) probe on the Collector (C).
• Expected Reading (Good Diode): The multimeter should display “OL,” “1,” or infinity, indicating an open circuit.

If the FWD test shows a reading near 0V in both directions, the diode is shorted. If it reads “OL” in both directions, it’s open. In either case, the module has failed. This simple check is often enough to condemn a faulty module like a CM600DX-24T without further testing.

Step 2: Testing the IGBT Switch

If the FWD checks out, the next step is to test the IGBT transistor itself. This involves two checks: ensuring the gate is not shorted and verifying that it can turn the switch on and off.

Part A: Checking for Gate-Emitter Integrity

The gate is the control terminal and should be electrically isolated from the main current path. A gate-emitter short is a critical failure, often caused by overvoltage from a faulty gate drive circuit.

• Place one probe on the Gate (G) terminal and the other on the corresponding Emitter (E) terminal.
• Expected Reading (Good IGBT): The multimeter should display “OL” or infinity.
• Reverse the probes. The reading should remain “OL.”

Any reading showing continuity or a low resistance indicates a shorted gate, and the module is faulty. This type of failure can damage the control board, so it’s important to investigate the gate driver electronics (like a SKHI 24 R) before installing a new module.

Part B: Verifying Switching Function

This is the definitive test to see if the IGBT can be turned on and off. It simulates the basic switching action by using the multimeter’s own voltage to charge and discharge the gate.

1. Initial State (OFF): Place the black (-) probe on the Emitter (E) and the red (+) probe on the Collector (C). The meter should read “OL” (just like the reverse bias test for the FWD). This confirms the switch is currently off.
2. Turn-On (Charge the Gate): Keeping the probes on C and E, use a free finger to briefly bridge from the red probe (at C) to the Gate (G) terminal. This action applies a positive voltage from the DMM’s test circuit to the gate, charging the internal gate capacitance.
3. Check ON-State: Remove your finger from the gate. The multimeter reading should now drop from “OL” to a low voltage drop reading (often similar to the FWD reading, e.g., ~0.4V). This proves the IGBT has turned on and is conducting. The gate charge is holding it in the “on” state.
4. Turn-Off (Discharge the Gate): Now, use a screwdriver tip or your finger to briefly short the Gate (G) and Emitter (E) terminals together. This drains the charge from the gate.
5. Final State (OFF): The multimeter reading should immediately return to “OL.” This confirms the IGBT has successfully turned off.

If the IGBT turns on and off as described, it passes the static multimeter test. If it fails to turn on, fails to turn off, or the reading is unstable, the IGBT is faulty.

Interpreting the Results: Good vs. Bad IGBT Readings

Here is a summary table for quick reference during your tests. Remember to perform these checks for each IGBT/diode pair within the module.

Common IGBT Failure Modes and What They Look Like on a Multimeter

Understanding common failures helps you interpret the DMM readings in context. For a deeper dive, review our guide on preventing common IGBT failures.

• Collector-Emitter Short-Circuit: This is the most frequent failure mode, usually caused by severe overcurrent or thermal runaway. Your multimeter will show a near-zero voltage drop or resistance between the Collector and Emitter, regardless of gate state.
• Gate-Emitter Short: Typically caused by ESD or excessive voltage from the gate drive circuit. The multimeter will show continuity between the Gate and Emitter terminals.
• Open Circuit: Less common, but the internal bond wires can fuse open under extreme fault conditions. The FWD test will read “OL” even in the forward-biased direction.

Limitations of Multimeter Testing: What It Can’t Tell You

It’s crucial to recognize that a multimeter test is a static, low-voltage test. It’s a fantastic first-line diagnostic tool, but it has limitations. A “good” reading on a multimeter does not guarantee perfect performance under real-world operating conditions.

A DMM test cannot detect:

• Subtle Degradation: Increased collector-emitter saturation voltage (VCE(sat)), which leads to higher conduction losses and heat.
• Dynamic Performance Issues: Increased switching times or excessive leakage currents that only appear at high voltages and temperatures.
• Partial Gate Damage: A change in gate threshold voltage that might make the IGBT behave erratically under load.

For full characterization or quality assurance, specialized equipment like a curve tracer or a dedicated IGBT analyzer is required. However, for field diagnostics, the multimeter test successfully identifies over 95% of failed modules.

Conclusion: A Reliable First Step in Troubleshooting

Mastering the multimeter test for IGBT modules is an essential skill for any power electronics professional. By systematically checking the freewheeling diode and the IGBT’s switching function, you can quickly and confidently identify catastrophic failures like shorts and opens. This simple, effective procedure helps minimize downtime, avoids the unnecessary replacement of healthy components, and gets your critical equipment back online faster.
