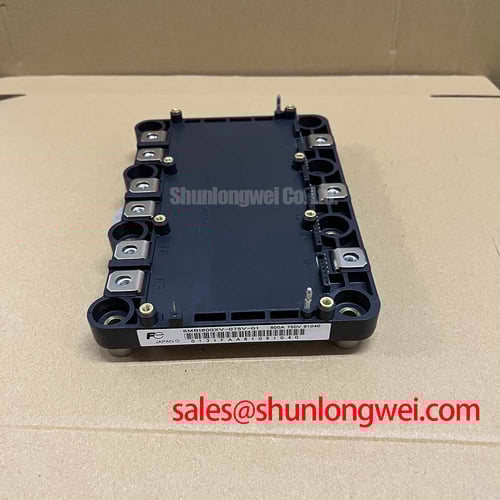

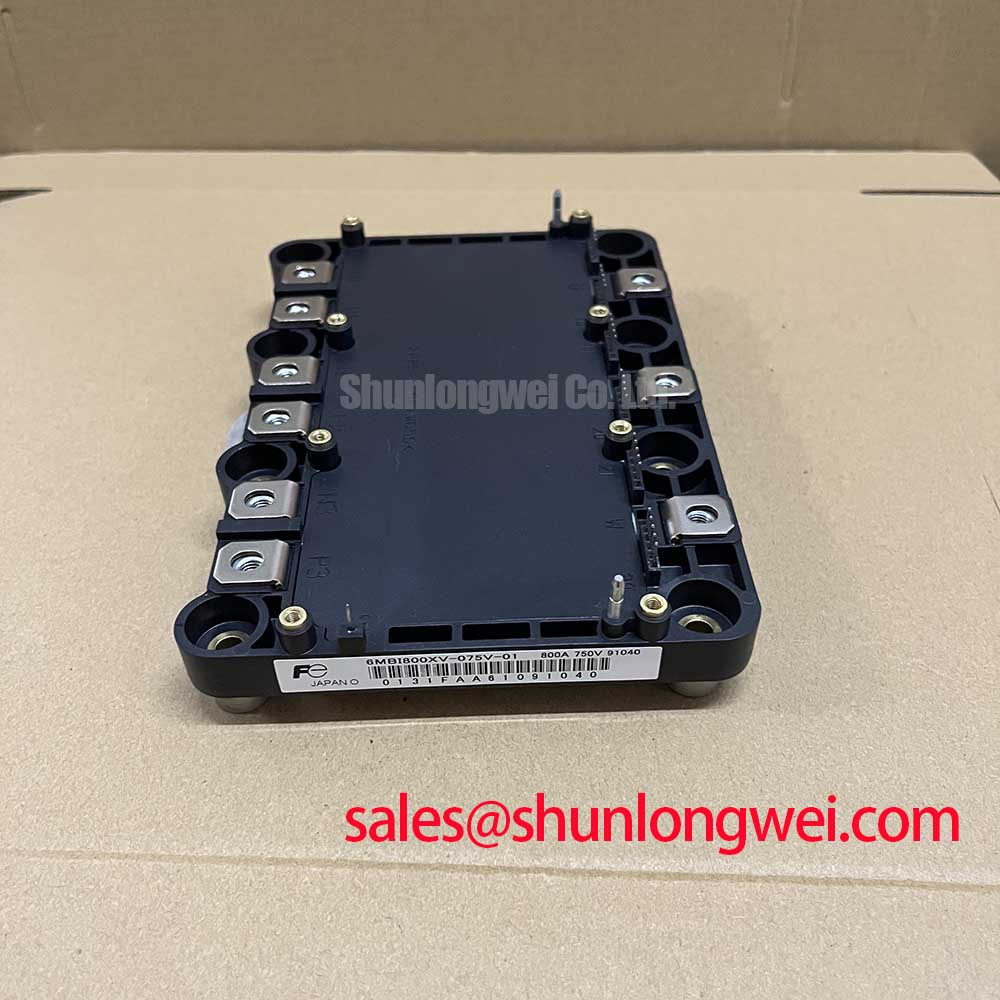

Fuji Electric 6MBI800XV-075V-01 | High Power Density IGBT for Demanding Inverter Applications
The Fuji Electric 6MBI800XV-075V-01 is an industrial-grade IGBT module engineered for high-current, high-reliability power conversion systems. As a key component in Fuji's V-Series lineup, this module leverages advanced silicon technology to deliver an optimized balance of low conduction losses and robust operational stability, making it a cornerstone for next-generation industrial drives and renewable energy infrastructure.
- High Current Capability: Rated for 800A at a collector-emitter voltage of 750V, ideal for systems in the megawatt class.
- V-Series Technology: Incorporates Fuji's advanced trench gate and thin wafer structure to minimize on-state voltage (VCE(sat)) and improve thermal efficiency.
- Six-Pack Configuration: Integrates a three-phase inverter bridge (six IGBTs) into a single, compact package, simplifying system layout and assembly.
- Enhanced Durability: Designed for high power cycling capability, ensuring long-term reliability in applications with fluctuating load profiles.
Technical Deep Dive: The V-Series Advantage
At the heart of the 6MBI800XV-075V-01 lies Fuji Electric’s sophisticated V-Series IGBT chip technology. This represents a significant evolution from previous generations, focusing on two critical engineering goals: reducing power loss and increasing power density. The technology achieves this through a refined trench-gate field-stop (FS) structure. By optimizing the carrier concentration and implementing a thinner drift layer, the V-Series significantly lowers the collector-emitter saturation voltage (VCE(sat)). For design engineers, this translates directly into lower conduction losses, meaning less waste heat is generated during operation. This enhanced efficiency allows for smaller heatsink designs or higher output power within the same thermal budget, a critical advantage in space-constrained applications.
Key Parameter Overview
The specifications of the 6MBI800XV-075V-01 are tailored for high-performance power electronics. The data below provides a snapshot for system designers and engineers. For a comprehensive analysis, Download the 6MBI800XV-075V-01 Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 750V |
| Continuous Collector Current (I_C) at T_c=80°C | 800A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) Typ. at I_C=800A | 1.60V |
| Power Dissipation per IGBT (P_C) | 3570W |
| Operating Junction Temperature (T_j) | -40 to +150°C |
| Isolation Voltage (V_isol) AC, 1 minute | 4000V |
Application Scenarios Where the 6MBI800XV-075V-01 Excels
The high current rating and robust thermal characteristics of this module make it a superior choice for several demanding applications:
- Large-Scale Motor Drives: In industrial automation, such as rolling mills, pumps, and compressors, the module's 800A capability allows for precise and efficient control of high-horsepower AC motors, improving process control and reducing energy consumption.
- Renewable Energy Inverters: For utility-scale solar and wind power systems, the 6MBI800XV-075V-01 serves as the workhorse for DC-to-AC power conversion. Its low conduction loss profile is critical for maximizing the overall energy yield from the renewable source.
- Uninterruptible Power Supplies (UPS): In data centers and critical industrial facilities, this IGBT ensures a seamless and reliable power switchover. Its high power cycling endurance guarantees performance during frequent grid-to-battery transitions.
- Heavy Industrial Equipment: Applications like industrial welding power supplies and induction heating systems benefit from the module's ability to handle high current pulses with stability, ensuring consistent and high-quality output.
Frequently Asked Questions (FAQ)
What are the primary considerations for the gate drive design for this module?
Given its 800A rating, a robust gate drive circuit is essential. Key considerations include providing sufficient peak gate current to ensure fast and complete turn-on, minimizing gate loop inductance by keeping connections short and twisted, and implementing a negative gate voltage (e.g., -8V to -15V) during the off-state. This negative bias provides a strong defense against parasitic turn-on induced by dV/dt, a common challenge in high-power bridge topologies. For further reading, explore these practical tips for robust gate drive design.
How does the module's thermal resistance impact system design?
The module's Thermal Resistance (Rth(j-c)) is a critical parameter for heatsink selection. A lower Rth value, characteristic of the V-Series, signifies more efficient heat transfer from the silicon die to the module case. This allows engineers to either operate at higher currents for a given junction temperature limit or use a more cost-effective thermal solution. Effective thermal management is paramount for leveraging the full capacity of these powerful IGBT modules and ensuring long-term operational reliability. For specific application calculations or selection support, please contact our technical team.
