Transient Dynamics & Electrical Design: DC-Bus Operating Voltage Headroom Derating on PM50CSE120

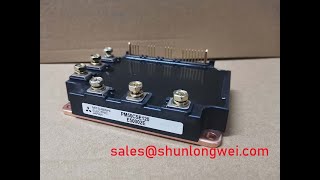

PM50CSE120 | Manufacturer: Mitsubishi Electric | Category: Intelligent Power Module | Rated voltage: 1200 V | Rated current: 50 A | Ratings shown are Official Specifications.
Probe the DC bus at the module terminals during a controlled switching test, and compare the highest observed transient with the 1200 V rated voltage of the PM50CSE120. The steady bus reading alone can miss an overshoot produced by commutation-loop inductance. Use an appropriately rated differential measurement setup, retain the waveform alongside bus voltage and load conditions, and repeat the measurement at the operating points that produce the most demanding switching transitions.
The 1200 V rating is an Official Specification, not a prescribed DC-bus setpoint. As a Design Consideration, keep the commutation path compact to reduce inductive overshoot, then let measured peak voltage, temperature, switching conditions, and the equipment’s protection strategy determine the operating headroom. If a peak changes after a module exchange, inspect the bus connections, capacitor connections, and mechanical contact surfaces before assigning the change to the module. A comparison with a known-good drive waveform is more useful than a single unloaded bus measurement.
Altitude-dependent cosmic-ray effects and single-event burnout are reliability questions, but the stated product data provide no device-specific failure-in-time figure or altitude derating curve. Do not calculate a PM50CSE120 failure rate from its voltage rating. For equipment installed at elevated altitude, the system engineer should assess the complete drive against its documented environmental requirements and obtain applicable manufacturer reliability guidance before setting a bus limit. Creepage and clearance also belong to the installed assembly: inspect the actual board, busbar, contamination controls, and enclosure geometry rather than treating the module voltage rating as a layout-clearance rule.
When assessing this module for a heavy-duty variable frequency AC motor drive, capture the DC-bus waveform before and after any proposed layout or protection change. The discussion in Peak Efficiency in Solar and Energy Storage can provide broader converter-topology context, but it does not establish a derating curve for this IPM.
Transient Dynamics & Electrical Design: Checking Insulation Boundaries Around PM50CSE120
With the drive isolated and its stored energy discharged, trace each power and control connection against the equipment schematic before attaching an insulation tester. Record terminal identity and polarity first; an incorrect test connection can put the tester across a control input instead of the intended isolation boundary. Use the equipment manufacturer’s approved test points and procedure for a dielectric test. The supplied PM50CSE120 facts establish its IPM classification and electrical ratings, but do not establish a reinforced-isolation rating, a withstand voltage, or a common-mode transient immunity value.
A static incoming check can still establish useful baselines without claiming to certify insulation. Compare the unpowered module’s accessible power-terminal diode-mode readings with the documented terminal map and a known-good reference under the same meter polarity and temperature conditions. An unexpected reading calls for a connection and measurement review; it is not, by itself, proof of a particular internal fault. Keep the test record specific about which terminals were measured and which terminals were left unconnected.
💡 Bench Tip: Discharge the drive’s DC-link capacitors and verify the absence of voltage before moving meter leads between power terminals and control connections.
If a drive logs intermittent gate or protection events during fast switching, examine the control-board signals and the voltage across their intended isolation boundary with suitable differential instrumentation. Optocoupler or digital-isolator common-mode transient immunity is a specification of the selected control component and its implementation, not a value that can be assigned to this IPM. Trace the return paths, connector seating, and timing of the event against the switching waveform before changing parts. For context on how another manufacturer describes an IPM product family, see the Infineon CIPOS Mini IPM series; its specifications do not transfer to the PM50CSE120.
Parallel-module operation requires a separate system assessment. Do not assume static current sharing from an unverified positive temperature coefficient of saturation voltage. As a Design Consideration, compare the measured current paths, connection resistance, cooling conditions, and busbar symmetry if the original equipment uses parallel devices. The relevant sharing behavior must be checked under that equipment’s actual operating conditions.
Transient Dynamics & Electrical Design: Investigating Switching-Coupled Control Disturbances on PM50CSE120
Capture the suspect phase transition and its corresponding control signal on the same oscilloscope record when a drive reports an intermittent overcurrent event. A transition-coupled disturbance can resemble an unintended switching command, but the waveform and the drive’s fault timing must support that diagnosis. Check probe placement and bandwidth, then compare the event with a known-good signal path before altering the gate-drive board.
Rapid voltage transitions can couple through parasitic capacitance into nearby control paths. As a Design Consideration, keep the relevant drive and return paths short, inspect their routing beside the power nodes, and verify that the installed control circuit holds the intended off state during switching. An active Miller clamp or negative gate bias is a system-level option only where the original drive design and the module’s documented interface support it. Neither a clamp circuit nor a particular negative-bias voltage is an established PM50CSE120 requirement in the provided specifications.
On a board that uses a bootstrap supply, examine the supply waveform during repeated switching and during the longest relevant high-side on interval. Droop may reflect several possibilities, including the charging path, capacitor condition, diode behavior, or operating sequence; distinguish them by measuring both the recharge interval and the supply at the control circuit. Bootstrap component values and recovery requirements are determined by that board’s schematic and controller documentation, not by the IPM’s 50 A current rating.
If incoming inspection points toward an interface mismatch, compare connector orientation, terminal functions, mounting pattern, and protection-signal behavior with the equipment documentation. The PM150RLA120 is a separate model worth documenting during a hardware comparison, not a verified direct replacement for the PM50CSE120. Its electrical ratings alone cannot establish pin, drive, or mechanical compatibility. Mitsubishi Electric’s SiC power modules and SBDs information likewise concerns a different device range and should not be used to infer this IPM’s gate-interface limits.
PM50CSE120 Circuit Protection & Reliability: Calibrating Long Motor Lead Reflected Wave Voltage
Measure the motor-terminal voltage and the drive-output waveform under the same operating condition when a long cable installation shows recurring insulation or drive faults. A motor-terminal peak that differs from the inverter-output peak may indicate a cable-reflection issue, but cable impedance, termination, rise time, and measurement setup all affect the result. Capture both locations with probes and procedures suitable for the installation rather than assigning every high peak to one cause.
A long motor lead is a system integration issue, not a change to the PM50CSE120 Official Specifications of 1200 V and 50 A. As a Design Consideration, the drive engineer can evaluate an output filter or choke against measured terminal stress, motor insulation requirements, drive control behavior, and the filter manufacturer’s instructions. Filter sizing cannot be inferred from the module current rating alone. Keep the distinction between DC-bus switching overshoot at the module and a reflected-wave peak at the motor terminals clear in the test record; they occur at different measurement points and can call for different corrective work.
If the drive also contains metal-oxide varistors or another overvoltage-absorption network, inspect their placement and documented ratings as part of the complete protection circuit. Such parts do not replace measurement of module-terminal peaks, and an observed motor-terminal peak does not establish that a varistor has failed. Compare fault timestamps, bus transients, and output waveforms before changing the protection arrangement.
Finish the installation check at the physical interfaces. Inspect the mounting face and fasteners for even seating, and use the equipment or module mounting instructions for the applicable tightening sequence and torque. Do not apply flat-pack pressure hardware, disc-spring settings, or double-sided cooling practices to this IPM without a documented mechanical design calling for them. After reassembly, repeat the relevant static terminal checks, then verify the switching and motor-terminal waveforms under controlled operating conditions.
