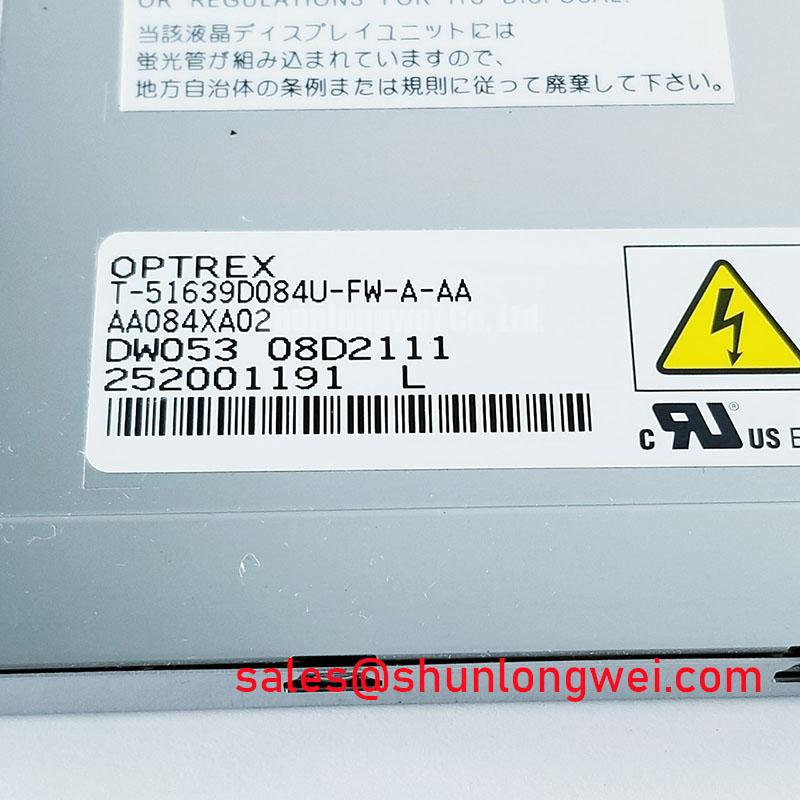

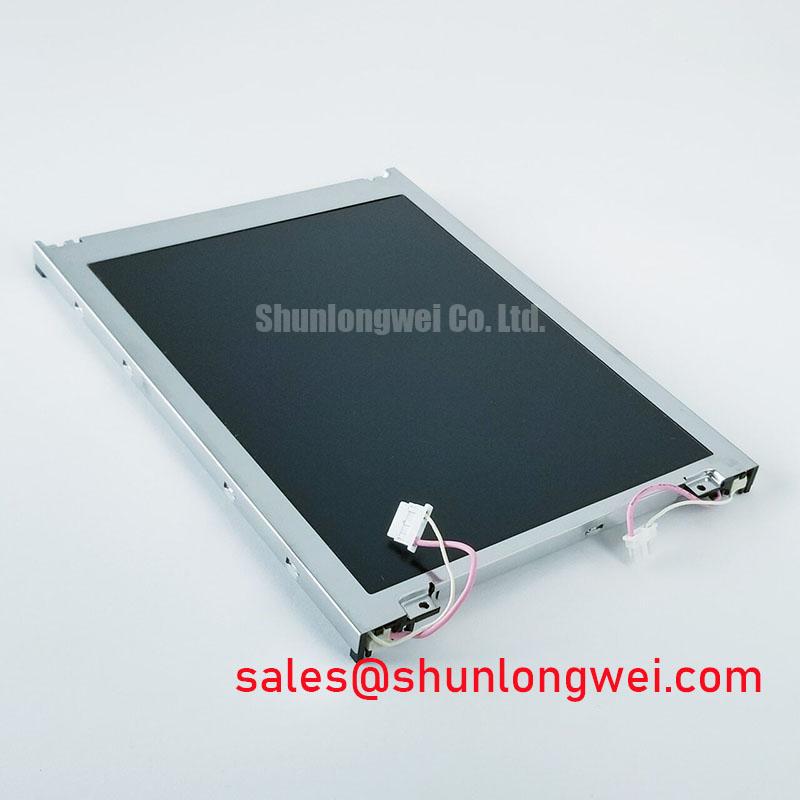

Mitsubishi AA084XA02 LCD Display

Mitsubishi AA084XA02 | High-Clarity XGA Display for Demanding Industrial HMIs

The Mitsubishi AA084XA02 is an 8.4-inch industrial TFT-LCD module engineered for applications demanding superior image clarity, reliability, and long-term performance. It delivers crisp, high-density visuals in a compact and durable package, making it an ideal display solution for sophisticated human-machine interfaces (HMIs), medical diagnostic equipment, and precision test instruments. Its balanced feature set focuses on providing exceptional visual performance and industrial-grade resilience.

• High-Resolution XGA Display: With a native resolution of 1024x768 pixels, the AA084XA02 provides sharp, detailed imagery essential for complex graphical user interfaces and data-intensive applications.
• Reliable Optical Performance: It features a typical brightness of 300 cd/m² and a contrast ratio of 350:1, ensuring clear readability in typical indoor industrial environments. The anti-glare surface minimizes reflections for improved operator focus.
• Industrial-Grade Durability: Designed for reliability, this module features a robust construction and a backlight with a 50,000-hour lifetime, reducing maintenance overhead and ensuring consistent performance over an extended operational life.
• Standardized Interface: Equipped with a common LVDS Interface, the AA084XA02 facilitates straightforward integration into a wide range of embedded systems and industrial controllers.

Key Technical Specifications

The Mitsubishi AA084XA02 is built to deliver consistent and reliable performance. Below is a summary of its key technical parameters that are critical for system design and integration.

Technical Deep Dive: Where Clarity Meets Reliability

The engineering behind the Mitsubishi AA084XA02 is focused on delivering practical advantages in industrial environments. Its XGA resolution in an 8.4-inch form factor creates a high pixel density, rendering text, graphical elements, and data plots with exceptional sharpness. This is a critical advantage for modern HMIs where operators must interpret complex information quickly and accurately, minimizing error and improving operational efficiency.

The display's optical design, based on proven a-Si TFT (Amorphous Silicon) technology, provides a stable and consistent visual experience. While not intended for direct sunlight, its 300-nit brightness and anti-glare coating are optimized for indoor factory and laboratory settings, where ambient light can be a challenge. The specified 50,000-hour backlight lifetime translates directly into a lower total cost of ownership by extending the product's useful life and reducing the need for costly field replacements—a key consideration for any industrial equipment manufacturer.

Application Suitability: Precision and Durability in Action

The specific feature set of the Mitsubishi AA084XA02 makes it a strong candidate for several key sectors:

• Industrial Control Panels: The high-resolution screen provides ample space for detailed SCADA systems, process control dashboards, and machinery status indicators, enhancing operator control and oversight.
• Medical and Laboratory Devices: In applications like patient monitors or analytical instruments, the crisp display ensures that critical numerical data, waveforms, and simple diagnostic images are presented clearly and without ambiguity.
• Test and Measurement Systems: Engineers and technicians using oscilloscopes, spectrum analyzers, and other test gear rely on precise visual data. The AA084XA02 provides the clarity needed to make accurate readings and diagnoses.

Selection Guidance: AA084XA02 (XGA) vs. AA084VB02 (SVGA)

When selecting from our portfolio of industrial LCD displays, it's important to match the display's resolution to your application's needs. A frequent point of comparison is the AA084XA02 and its sibling, the AA084VB02. The primary difference lies in their resolution:

• AA084XA02: Offers a 1024x768 (XGA) resolution, providing 64% more pixels than SVGA. It is the superior choice for new designs featuring complex, graphics-rich user interfaces or requiring significant data display.
• AA084VB02: Features an 800x600 (SVGA) resolution. This makes it a suitable and cost-effective solution for retrofitting older systems designed for SVGA or for applications with simpler, text-based GUIs.

For new projects where user experience and data density are paramount, the Mitsubishi AA084XA02 is the clear forward-looking choice. For cost-sensitive projects or legacy system support, the AA084VB02 remains a viable option.

Frequently Asked Questions (FAQ)

What is the benefit of a "Normally White" display?

A "Normally White" display mode, like that used in the AA084XA02, means that the pixels are transparent (appearing white) when no voltage is applied. In the event of a pixel or driver failure, the affected pixel will remain white. This is often preferred in industrial and medical applications, as a failed black pixel could potentially obscure critical underlying information, whereas a white pixel is more noticeable and less likely to hide a warning or data point.

Can I integrate a touchscreen with the AA084XA02?

Yes. The Mitsubishi AA084XA02 is a display module and does not come with an integrated touch panel. This provides design flexibility, allowing engineers to select and overlay the touch technology that best suits their end application. Whether you require a pressure-sensitive resistive touch panel for gloved operation or a multi-touch projected capacitive (PCAP) overlay for a modern user experience, the choice is yours. For a deeper understanding of display technologies, explore our Ultimate Guide to TFT LCD.

For detailed pricing, availability, or to discuss the specific requirements of your project, please contact our technical team for expert consultation.
