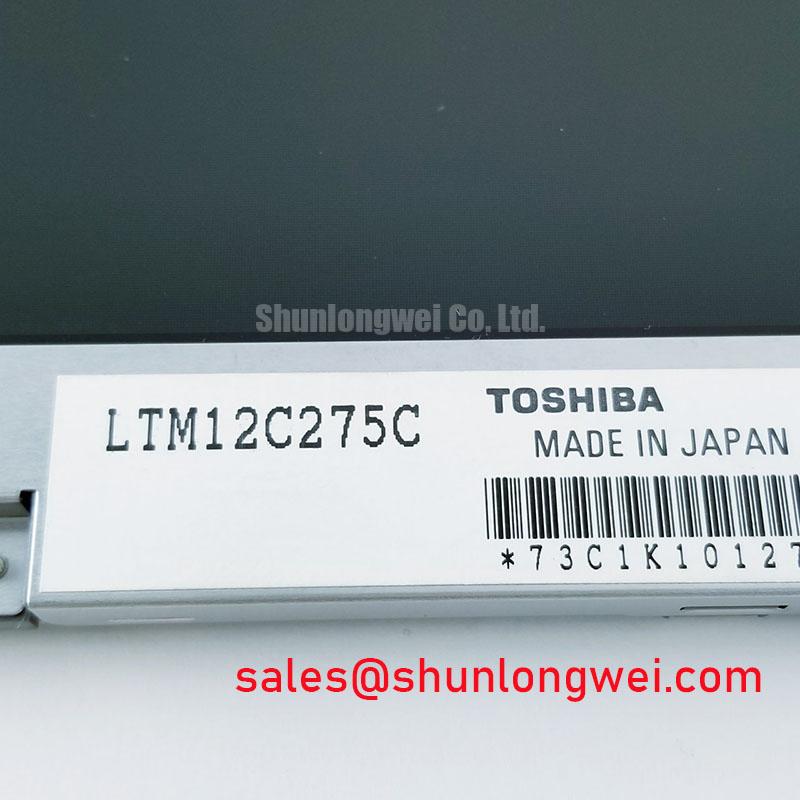

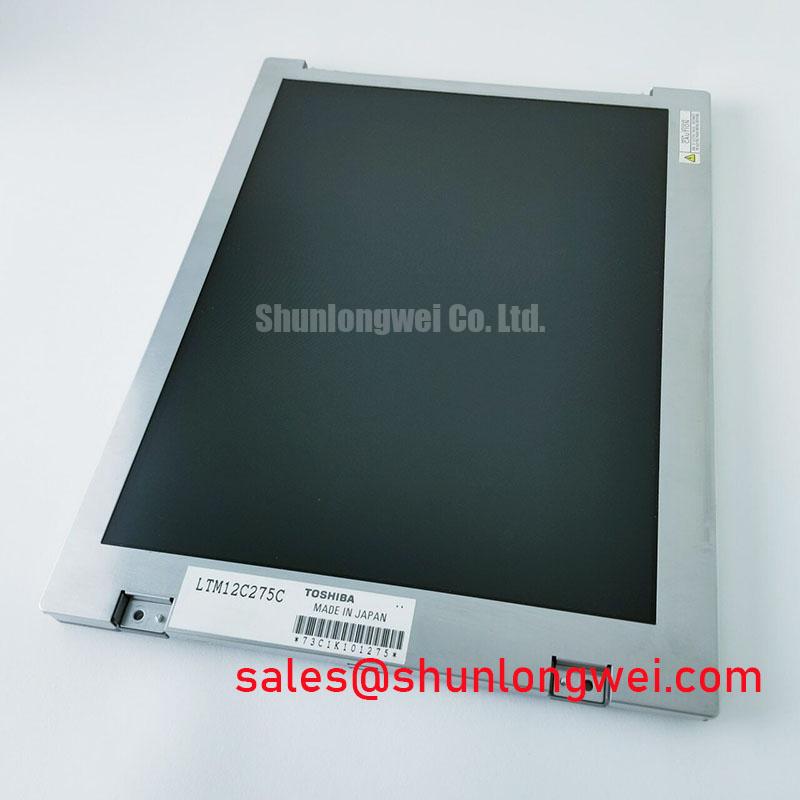

Toshiba LTM12C275C | The Reliable SVGA Display for Legacy Industrial Systems
For engineers and technicians tasked with maintaining or refurbishing mission-critical industrial equipment, sourcing authentic, reliable components is paramount. The Toshiba LTM12C275C is a 12.1-inch SVGA TFT-LCD panel engineered specifically for longevity and compatibility in established industrial applications. It represents a crucial component for extending the service life of high-value assets, ensuring operational continuity without the need for costly and complex system redesigns.
Key Specifications at a Glance
This panel is designed as a direct-fit replacement for a wide range of industrial human-machine interfaces (HMIs) and control systems. Its specifications are tailored for the operational demands of the environments it was designed for.
| Parameter | Specification |
|---|---|
| Model | LTM12C275C |
| Screen Size | 12.1 inches |
| Resolution | 800(RGB)×600 [SVGA] |
| Panel Technology | a-Si TFT-LCD |
| Brightness | 200 cd/m² |
| Contrast Ratio | 300:1 |
| Backlight System | Cold Cathode Fluorescent Lamp (CCFL) |
| Interface Type | LVDS (1 ch, 6-bit) |
| Operating Temperature | 0 ~ 50 °C |
For comprehensive technical data, you can access the LTM12C275C datasheet here: Download the LTM12C275C Datasheet.
The Engineer's Choice for Legacy System Continuity
The true value of the LTM12C275C lies not in competing with modern, high-resolution displays, but in its ability to seamlessly integrate into existing systems. It is the go-to solution for specific, high-stakes applications:
- CNC Machinery: Many computer numerical control (CNC) machines from the last two decades were built around 800x600 resolution panels. The LTM12C275C serves as a drop-in replacement, preventing software scaling issues and graphical artifacts that would occur with a non-native resolution display.
- Medical Diagnostic Equipment: In fields like medical imaging and patient monitoring, equipment validation and certification are rigorous. Replacing a display with the original specified model like the LTM12C275C minimizes re-certification hurdles and ensures the user interface performs exactly as intended.
- Industrial Automation & Process Control: Factory floor HMIs and SCADA systems are built for decade-plus lifecycles. This panel ensures that operators have a clear, functional interface without disrupting the delicate hardware and software ecosystem of the control loop. Explore more about the demands on displays in heavy machinery.
Technical Profile: Built for Durability and Compatibility
The engineering choices behind the LTM12C275C prioritize stability and backward compatibility. Understanding these choices is key to appreciating its role in industrial maintenance.
- Proven a-Si TFT Technology: The use of Amorphous Silicon (a-Si) TFT technology was the industrial standard for years, prized for its manufacturing maturity and proven reliability in constant-duty cycles. While newer technologies exist, a-Si provides a stable, predictable performance baseline ideal for industrial controls.
- CCFL Backlight & LVDS Interface: The Cold Cathode Fluorescent Lamp (CCFL) backlight and its associated inverter were the standard for this generation of displays. Crucially, the LTM12C275C allows for a direct swap without re-engineering the system's power delivery or control signals for the backlight. Similarly, its standard LVDS interface ensures plug-and-play compatibility with the host controller boards in legacy equipment.
Replacement vs. Redesign: A Practical Guide
When a display in a legacy system fails, engineers face a critical choice: replace the component or redesign the HMI unit. The LTM12C275C makes a compelling case for direct replacement. A redesign involving a modern LED-backlit panel often introduces a cascade of challenges, including modifying the mounting chassis, sourcing or designing a new LED driver board, and, most critically, potential software and firmware modifications to accommodate a different resolution or interface protocol. The LTM12C275C bypasses this entire process, reducing downtime from days or weeks to mere hours and preserving the integrity of the original system design.
Frequently Asked Questions for the LTM12C275C
Why use a CCFL display when modern LED backlights are more efficient?
Compatibility is the key driver. Legacy systems were designed with an integrated CCFL inverter to power the backlight. Replacing the panel with a CCFL model like the LTM12C275C eliminates the need to engineer a new LED driver solution, saving significant time, cost, and potential points of failure. It is the most direct and reliable repair path.
Is an 800x600 SVGA resolution still practical for industrial use?
Absolutely. For the specific machines this panel is designed for, the operating system and application software were written for an 800x600 display. Using a higher-resolution panel would force the system to scale the image, which can result in distorted graphics, unreadable text, and misaligned touch points on an overlay. Sticking to the native resolution is essential for user interface integrity.
If you are managing the lifecycle of industrial or medical equipment and need a proven, reliable display solution, the Toshiba LTM12C275C is a strategic choice. To discuss your specific application or check stock availability, contact our technical team today.
