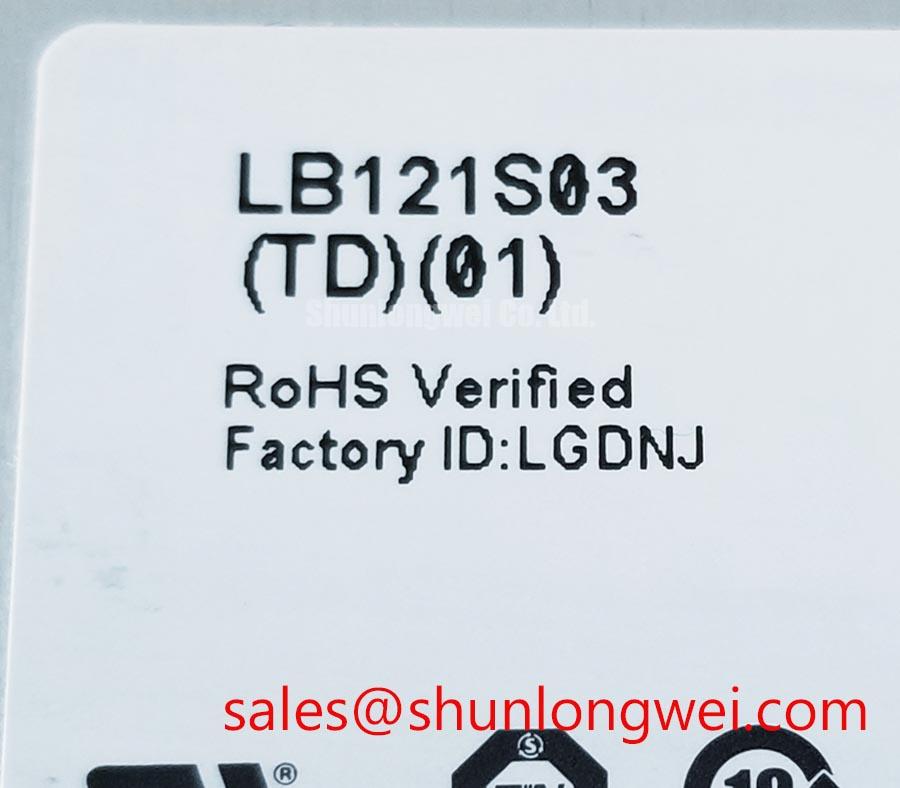

LG Display LB121S03-TD01: 12.1-inch SVGA TFT-LCD Module Engineered for Industrial Clarity and Durability
Product Overview
Delivering Robust Visual Performance for Demanding HMI Applications

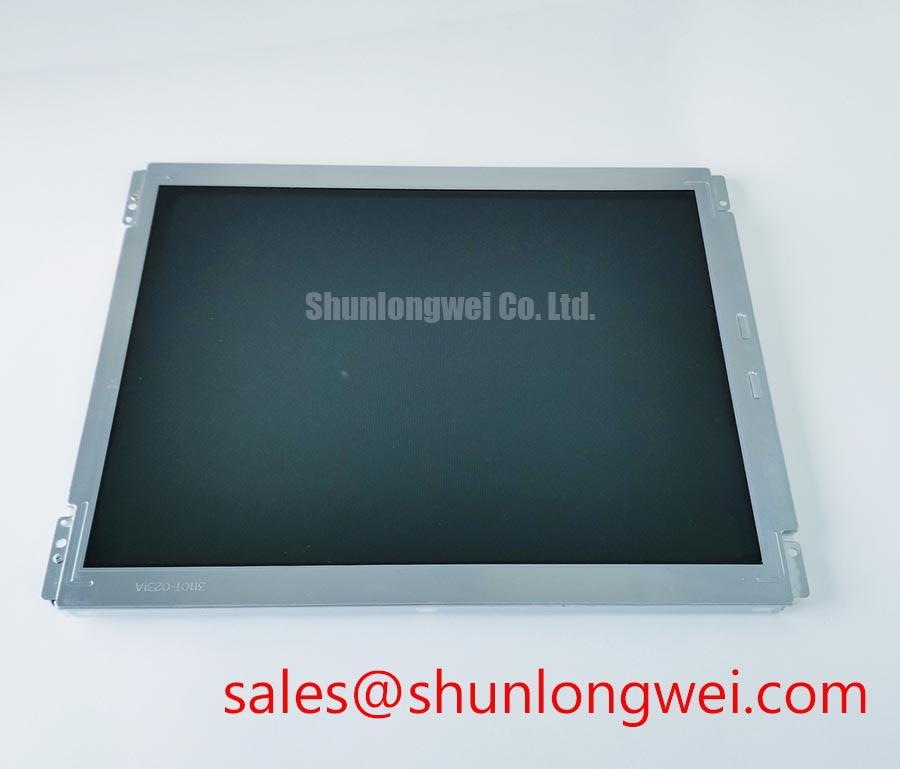

The LG Display LB121S03-TD01 is a 12.1-inch a-Si TFT-LCD module designed for resilience and optical performance in industrial environments. This display delivers a classic 4:3 aspect ratio with SVGA resolution, engineered for applications where long-term readability and operational stability are paramount. Key specifications include: 800x600 SVGA Resolution | 450 cd/m² Brightness | 262K Color Depth. Its robust construction and focused feature set provide exceptional visual consistency and simplify system integration. Answering a key concern for engineers, its standard LVDS interface ensures broad compatibility with industrial controllers and single-board computers, reducing design complexity. For applications requiring a different resolution or higher brightness in a similar form factor, the G121XCE-L01 offers XGA resolution.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
The LB121S03-TD01 is engineered to excel in environments where clear data visualization is critical for operational efficiency and safety. Its 450-nit brightness and 700:1 contrast ratio ensure that user interfaces for machine control, process monitoring, and factory automation systems remain sharp and legible under typical indoor industrial lighting. What is the primary benefit of its anti-glare surface treatment? It significantly reduces specular reflections from overhead lighting, minimizing operator eye strain and improving data accuracy during critical tasks. This makes it a highly effective display solution for Human-Machine Interfaces (HMIs), control panels for manufacturing equipment, and specialized instrumentation where reliable, long-term performance is a non-negotiable requirement.
Key Parameter Overview
Decoding the Specs for Integration and Performance
The technical specifications of the LB121S03-TD01 are tailored for straightforward integration and dependable performance in industrial applications. The following table highlights the key metrics that engineers and procurement managers should consider for system design and evaluation.
| Feature | Specification | Engineering Significance |
|---|---|---|
| Screen Size | 12.1 inch | A standard industrial size offering a balance between information density and enclosure compatibility. |
| Resolution | 800 (RGB) × 600, SVGA | Provides clear and sufficient detail for typical industrial GUI elements without requiring high-end graphics processing. |
| Luminance | 450 cd/m² (Typ.) | Ensures excellent readability in well-lit indoor environments like factory floors and control rooms. |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Offers wide, symmetrical viewing angles, allowing multiple operators to view the screen from different positions without color shift. |
| Interface Type | LVDS (1 ch, 6-bit) | A robust and widely adopted interface that simplifies electrical connection and ensures signal integrity. For more on this technology, see this LVDS Interface application note. |
| Operating Temperature | -0 ~ 50 °C | Suitable for controlled indoor industrial and commercial environments. |
Download the LB121S03-TD01 datasheet for detailed specifications and performance curves.
Application Vignette
Enhancing Operator Efficiency in a CNC Machining Center HMI
Consider a CNC machining center where an operator must constantly monitor tooling paths, machine status, and input new parameters. The environment is often subject to fluctuating overhead lighting. The LB121S03-TD01 is an ideal fit for this scenario. Its 800x600 resolution provides ample screen real estate to display critical G-code, axis positions, and soft-key buttons without appearing cluttered. The crucial feature here is the combination of 450-nit brightness and an anti-glare surface. This pairing directly addresses the challenge of screen wash-out and reflections, a common source of errors and operator fatigue. By providing a consistently clear and glare-free image, the display enables faster, more accurate data entry and monitoring, directly contributing to reduced setup times and fewer operational mistakes. The wide viewing angles also mean that a supervisor can confer with the operator without needing to be positioned directly in front of the screen, improving workflow on the shop floor.
Frequently Asked Questions
Clarifying Key Design and Integration Considerations
How do the wide viewing angles of the LB121S03-TD01 benefit multi-operator environments?
The symmetrical 80-degree viewing angles (left/right/up/down) ensure that the display's color and contrast remain consistent even when viewed from significant off-axis positions. This is critical in applications like a central control room or a large machine where multiple team members may need to view the information simultaneously without distortion.
What is the significance of the LVDS interface for industrial system design?
The Low-Voltage Differential Signaling (TFT-LCD) interface is a standard in industrial computing due to its high noise immunity and ability to transmit data over longer distances compared to parallel interfaces. For designers, this means a more reliable connection between the display and the main controller board, even in electrically noisy factory environments, and greater flexibility in enclosure design.
Is the 450-nit brightness sufficient for outdoor applications?
With a typical brightness of 450 cd/m², the LG Display LB121S03-TD01 is optimized for indoor industrial environments. It is not designed for direct sunlight readability. For outdoor or high ambient light conditions, a display with a luminance of 1000 nits or higher would be required.
Strategic Outlook
A Reliable Foundation for Long-Lifecycle Industrial Systems
For engineering teams developing systems where product longevity and consistent performance are the primary design drivers, the LB121S03-TD01 represents a strategic choice. Its adoption of established, proven technologies like the SVGA resolution and a-Si TFT construction provides a stable platform that simplifies qualification and supply chain management over the extended lifecycle of industrial equipment. This focus on reliability over cutting-edge features ensures that HMI and control systems built with this display can be supported and maintained for years, maximizing return on investment and minimizing the risk of forced redesigns due to component obsolescence. It is a calculated investment in operational continuity.
