Initial Inspection and Measurement Precautions
- Disconnect the power assembly, verify that stored energy has discharged, and identify the collector, emitter, and gate from the terminal drawing before attaching test leads.
- Record cold diode-mode readings in both directions across the main terminals, with the gate controlled to prevent an unintended floating-gate turn-on.
- Inspect the mounting surface, terminal seating, and heatsink contact area for damage or contamination that could affect electrical connections or heat transfer.
- Check the gate-driver isolation path and probe voltage ratings before preparing any powered waveform measurements.

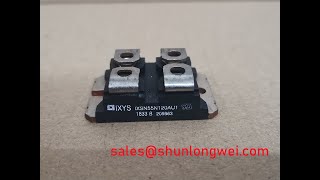

The IXSN55N120AU1 from IXYS is an IGBT module with specified ratings of 1200 V and 55 A in an ISOTOP / SOT-227 package. Incoming inspection should connect those electrical identifiers to the actual terminal arrangement, mounting interface, and intended operating conditions—not treat the part number alone as proof of installation compatibility.
| Product characteristic | Specification | Engineering interpretation |
|---|---|---|
| Manufacturer and model | IXYS IXSN55N120AU1 | Match the complete designation to the equipment bill of materials. |
| Rated voltage | 1200 V | Official Specification; not a gate-driver isolation rating. |
| Rated current | 55 A | Official Specification; operating capability depends on the rating conditions and thermal boundary. |
| Package | ISOTOP / SOT-227 | Official Specification; check terminal orientation and mechanical fit. |
| Conditions and additional limits | Consult Datasheet | Use the manufacturer documentation for current-rating conditions, terminal numbering, gate limits, switching characteristics, thermal data, and insulation test conditions. |
Benchtop Waveform Tuning: Mitigating Stress from Tail Current Oscillations in the IXSN55N120AU1
Capture collector-emitter voltage, switching current, and gate-emitter voltage together so that reverse-recovery disturbances can be separated from turn-off tail current. These are different events: diode reverse recovery accompanies commutation away from diode conduction, while IGBT tail current belongs to the turn-off transition. A ringing trace by itself does not identify which mechanism needs attention.
As a Design Consideration, first establish whether the circuit includes an antiparallel freewheeling diode and identify its current path from the schematic. During commutation, examine the peak reverse-recovery current and how abruptly the reverse current returns toward zero. Their interaction with the switching loop can produce voltage overshoot and oscillation. Evaluate the waveform at the operating current, bus voltage, and temperature relevant to the assembly rather than transferring a result from an unrelated bench condition.
Probe placement matters when comparing adjustments. A long measurement return can add apparent ringing, and an unsuitable current sensor can obscure the recovery transition. Keep the measurement arrangement consistent, check instrument bandwidth and saturation behavior, and distinguish device-terminal voltage from voltage measured farther along the busbar. Correlating repeated captures is more useful than treating a single unusually sharp trace as a definitive device fault.
Gate-resistance adjustment is an Engineering Recommendation for evaluating commutation speed, not a fixed prescription for this model. Increasing turn-on damping can reduce the excitation of the recovery loop, but it also changes switching loss and transition duration. If an RC snubber is considered, its location and values should follow the measured ringing behavior and dissipation requirements. The system engineer should validate both the reduction in overshoot and the resulting thermal load.
Keep the snubber connection close to the loop it is intended to damp, while preserving the required spacing between conductive parts. Long connections can undermine its effectiveness. Layout clearance depends on working voltage, contamination conditions, and the applicable equipment requirements; the package name does not establish a universal spacing rule. Radiated or conducted emissions remain assembly-level measurements rather than a certification property of the IXSN55N120AU1.
Preventing Spurious Faults: Pre-Installation Junction Health Check for the IXSN55N120AU1
Measure the unpowered main-terminal paths with a digital multimeter in diode-check mode, recording polarity, instrument identity, and device temperature alongside each reading. Confirm the terminal mapping first: physical position alone is not a reliable substitute for the package drawing. Isolate the device from parallel circuit paths where practical, because connected capacitors, resistors, and other semiconductors can influence the result.
For an antiparallel diode path confirmed by the schematic, compare forward and reverse readings with a known-good unit under the same test conditions. The meter reading reflects its test current and available compliance voltage; it is not automatically equivalent to the diode forward-voltage specification at operating current. An unexpected reading should prompt examination of contact quality, remaining circuit connections, and gate state before assigning a fault to the semiconductor.
💡 Bench Tip: Use ESD-safe handling and maintain a controlled gate-emitter state during cold measurements so that charge on a floating gate does not confuse the comparison.
Check the gate-related paths separately from the main current path. A resistance or continuity test can identify a gross abnormality, but it does not constitute a quantified gate-leakage qualification. If leakage measurement is required, use a current-limited source and suitable instrumentation within the specified gate limits. Record the applied bias and settle time so that another technician can reproduce the test without interpreting a transient charging current as steady leakage.
When moving from cold screening to installation, minimize the commutation-loop area as a Design Consideration. Closely coupled outgoing and return conductors reduce parasitic inductance, while a snubber film capacitor needs a short connection to the relevant switching path. The acceptable geometry is established by measured switching stress and mechanical constraints, not by imposing an unsupported universal inductance target.
Compatibility assessment also needs more than matching voltage and current labels. The FZ1800R12KL4C can be included in a broader IGBT product comparison, but that comparison should examine circuit configuration, terminal arrangement, package dimensions, driver requirements, and thermal interfaces. It does not establish a direct replacement for the IXSN55N120AU1. For electric material-handling equipment or forklift low-voltage traction controllers, engineers should first confirm that the original switching topology and loss requirements justify evaluating this particular device.
IXSN55N120AU1 Circuit Protection & Reliability: Calibrating SCSOA Overcurrent Protection
Trace the protection signal from the current-sensing or desaturation circuit to the gate-driver output before evaluating a short-circuit response. The complete delay includes sensing, filtering, logic propagation, and the driver's reaction. A fast detector alone does not establish that the assembled circuit will interrupt fault current within the device's allowable short-circuit conditions.
As a Design Consideration, distinguish a fault present when the IGBT is commanded on from a fault arising after conduction has begun. These situations can produce different collector-voltage and current trajectories. Protection verification should therefore examine both the initial transition and the subsequent interruption, using a controlled test arrangement with appropriate energy limitation and instrumentation.
Short-circuit safe operating area is conditional on factors such as gate bias, bus voltage, and initial junction temperature. A generic short-circuit timing target must not be treated as an IXSN55N120AU1 guarantee. The protection timing should be tied to its specified limits and then verified at the assembly's adverse operating corners. Detection blanking deserves particular attention because it can reject normal switching transients while also delaying recognition of a real fault.
A staged or soft turn-off is an Engineering Recommendation to evaluate when abrupt fault interruption produces excessive collector-voltage overshoot. The driver should remove gate charge in a controlled manner while maintaining reliable shutdown. Slower interruption also increases the energy absorbed during the fault, so waveform review must include current decay and voltage rise together rather than judging only the peak voltage.
Pulse heating needs the same conditional treatment. Where transient thermal-impedance data are provided, use the applicable curve and thermal boundary to assess pulse-related junction-temperature rise. Repetitive events require attention to the preceding thermal state and heat removal through the mounting interface. A cold static measurement cannot establish the junction-temperature margin during repeated switching or protection operation.
For interpreting gate-control behavior and distinguishing semiconductor mechanisms from circuit-level faults, The Ultimate IGBT Knowledge Base provides supporting technical context. Keep the commissioning record specific: note the protection configuration, test conditions, measured delay, and shutdown waveform. That record supports a repair decision more directly than an unqualified assertion that the device or driver is “short-circuit safe.”
Field Diagnostics & Commissioning: Reinforced Insulation Barrier Integrity in IXSN55N120AU1 Topologies
Identify the actual isolation barriers on the driver schematic before applying an insulation test or interpreting a common-mode disturbance. The 1200 V semiconductor voltage rating describes a switching-device electrical boundary; it does not certify reinforced isolation across the gate driver, auxiliary supply, enclosure, or complete equipment.
As a Design Consideration, assess the isolator and isolated power supply using their own working-voltage, insulation, and common-mode transient specifications. Creepage and clearance also depend on the board geometry and intended environment. A dielectric test should follow the relevant component and equipment procedures, including which terminals are joined and which sensitive circuits are disconnected. Uncontrolled test connections can stress paths that were not intended to receive the test voltage.
To investigate unintended gate pulses, compare the command signal, driver supply, and gate-emitter waveform during switching transitions. Common-mode coupling, supply disturbance, and measurement artifacts can resemble one another. Check whether the disturbance appears at the isolator output, develops inside the driver stage, or exists only in the probe arrangement. CMTI suitability is established by the chosen isolation components and the system's measured transients, not by assigning an unsupported threshold to the IGBT module.
The isolated auxiliary supply is a separate part of this assessment. A buck–boost converter topology reference explains voltage-conversion principles, but the topology name alone establishes neither galvanic isolation nor reinforced-insulation compliance. Inspect the actual supply schematic and isolation construction when evaluating how driver power interacts with the switching node.
During final commissioning, verify that the gate remains in its intended off state through driver startup, shutdown, and fault reset. Repeat the relevant checks after reconnecting the original harness and load, because the installed return paths can differ from those on the bench. Preserve the terminal mapping, cold-test record, protection captures, and isolation-component documentation with the repair file so that any subsequent abnormal switching event can be compared against a reproducible baseline.
