Content last revised on November 4, 2024

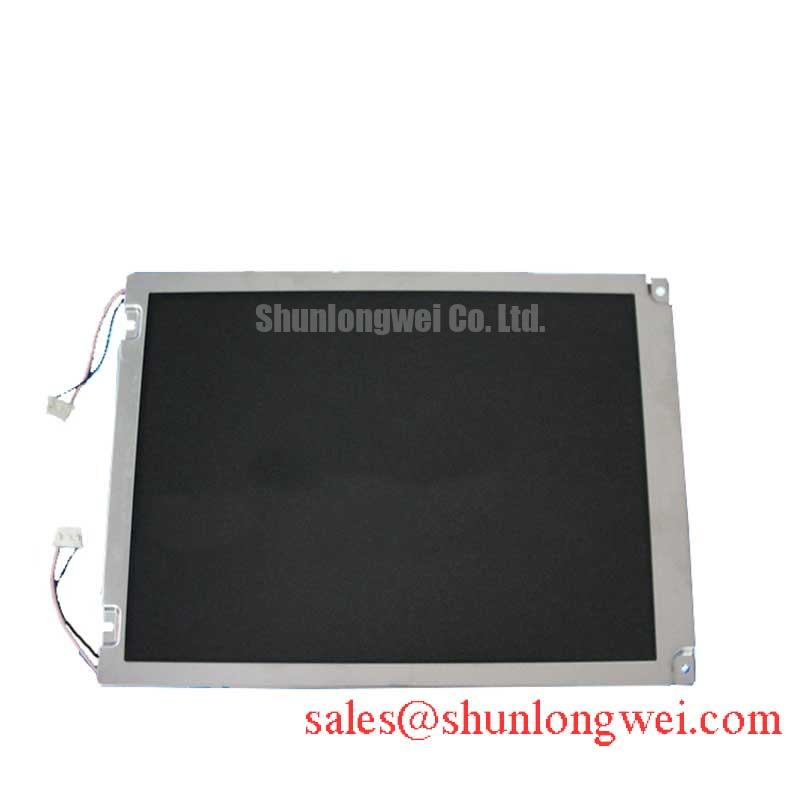

Panel Brand: Mitsubishi
Panel Model: AA104VC03
Panel Size: 10.4"Panel
Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480 , VGA
Pixel Format: RGB Vertical Stripe
Display Area: 211.2(W)×158.4(H) mm
Bezel Opening: 215.4(W)×161.8(H) mm
Outline Size: 243(W)×181.6(H) ×12.7(D) mm
Surface: Hard coating (2H), Antireflection
Brightness: 380 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Viewing Angle: 80/80/70/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode: TN, Normally White, Transmissive
Best View on: 6 o'clock
Response Time: 10/30 (Typ.)(Tr/Td)
Display Colors: 262K
Lamp Type: 2 pcs CCFL , 50K hours , Without Driver
Frequency: 60Hz
Touch Screen: Without
Panel Weight: 540g (Typ.)
Application: Industrial
Signal Interface: CMOS (1 ch, 6-bit) , 31 pins , Connector
Input Voltage: 3.3/5.0V (Typ.)(VCC)
Environment: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
